Joint d'étanchéité Scotseal Plus XL pour essieu moteur
#SKF47691
Sommaire du produit

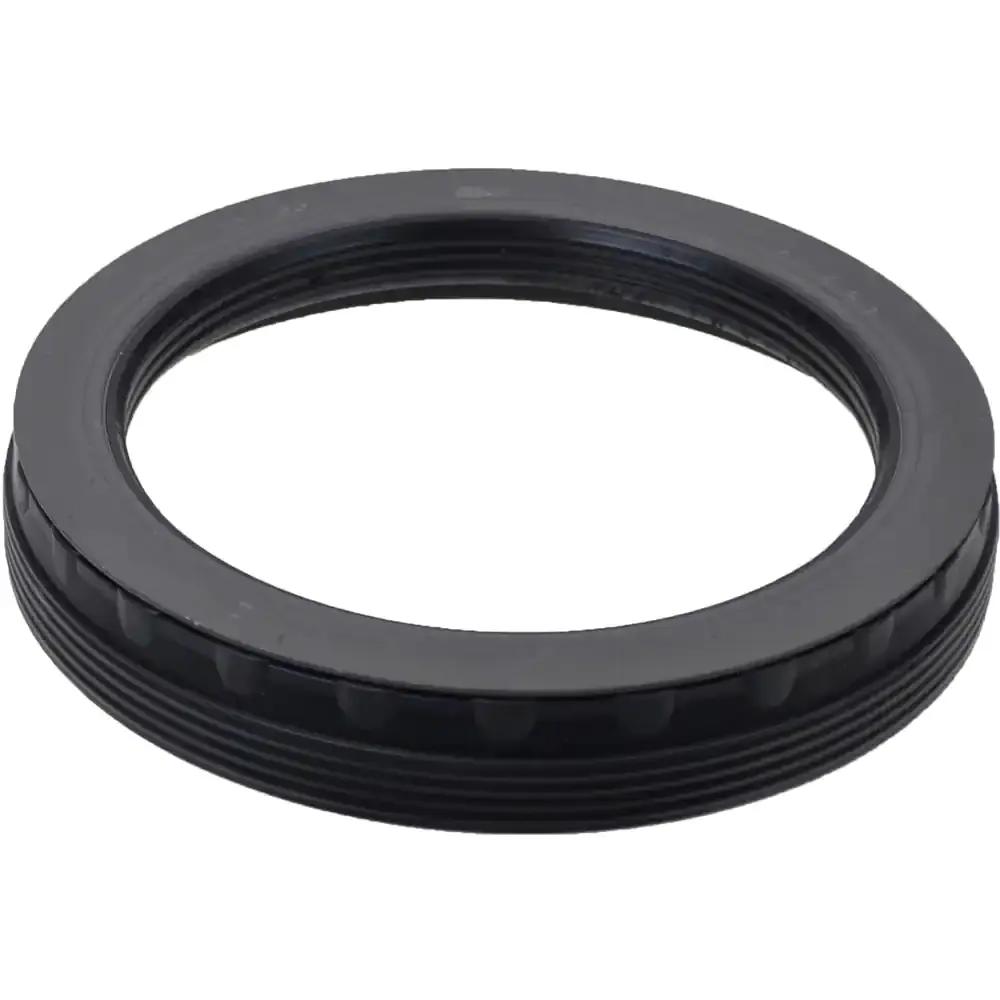

The ScotSeal PlusXL is a Rubber Unitized, One Piece Design.
Caractéristiques et avantages
Caractéristiques et avantages
SKF47691 - Documents de caractéristiques - A
SKF47691 - Documents de caractéristiques - B
SKF47691 - Documents de caractéristiques - C
SKF47691 - Documents de caractéristiques - D
SKF47691 - Documents de caractéristiques - E
SKF47691 - Documents de caractéristiques - F
SKF47691 - Documents de caractéristiques - G
SKF47691 - Documents de caractéristiques - H
SKF47691 - Documents de caractéristiques - I
- The ScotSeal Plus XL Consists of Four Sealing Lips: A Spring Loaded Primary Sealing Lip With Patented Waveseal Design That is Factory Pre-Lubed,
- a Radial and Axial Dirt Lip , Plus an Outer Bumper Lip That Acts as a Priliminary Dirt Excluder.
- ScotSeal PlusXL Requires No Special Installation Tools and Maintains a Rubber to Metal Contact Between the Seal O.D. and the Hub Bore Surface,
- as Well as a Rubber to Metal Contact Between the Packing I.D. and Spindle or Axle.
- The New High Temperature, Synthetic Lubricant Freindly Material of the ScotSeal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an Excellent Choice for Frequent Braking Applications.
- HNBR Elastomeric Material Provides Heat Resistance up to 300 Degrees Farenheit and Broad Compatibility With Today's Synthetic Lubrication Fluids.
- The Unsurpassed Exclusion Properties Allow the ScotSeal PlusXL to Perform in Very Harsh Conditions.
- Worn Hubs and Spindles Are Not a Problem for the ScotSeal PlusXL.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Spécifications
| Contient | (1) Oil Bath Seal |
| Diamètre intérieur | 4-49/64 po (12,12 cm) |
| Type | PlusXL |
| Code VMRS | 18001004 |
Interchanges et pièces équivalentes:
| 10005431 |
| 10008717 |
| 370003 |
| 380003 |
| 380003A |
| 380003TX |
| 3090973 |
| 3823384C1 |
| 761400 |
| 3910073 |
| 3929098 |
| 3930173 |
| 3930273 |
| 3930373 |
| CR47691 |
| CR47694 |
| 88AX461 |
| 3979773 |
| 47691 |
| 47691CHR |
| 47692 |
| 47693 |
| 47694 |
| 47694CHR |
| 47695 |
| 47697 |
| 48089 |
| 861 |
| 861T |
| N47694 |
| N47695 |
| UZ0861E |
| XCR47694 |
| ZAR47694 |
| HS47694 |
| 2703W1703 |
| 2703W1703FOR3 |
| 15982869 |
| 21404020 |
| 370003A |
| 10005668 |
| 392-9131 |
| 393-0173 |
| 393-0273 |
| HD809 |
| MER0173 |
| 2596974C1 |
| 380003AFDM |
| 47691-CR |
| CHR 47691 |
| CHR 47695 |
| CHR47691 |
| CHR47694 |
| XCR 47694 |
| 2106W1111EXCEATON |
| 2106W1502FOR1 |
| 2106W1502FOR2 |
| 2703 |
| 3909073 |
| CR47697 |
| 11S47670 |
| 11S47670T |
| SH3440 |
| 291-308 |
| 380001A |
| 370001A |
| 47698 |
| 504861 |
| CHR47695 |
| 965847694 |
| 145847694 |
| 2106W1502 |
| S47691 |
| P370003A |
| P370001 |
| NS370003A |
| 27SH3440 |
| 4133441100 |
| 27SH3441 |
| 4133440100 |
| 59047691 |
