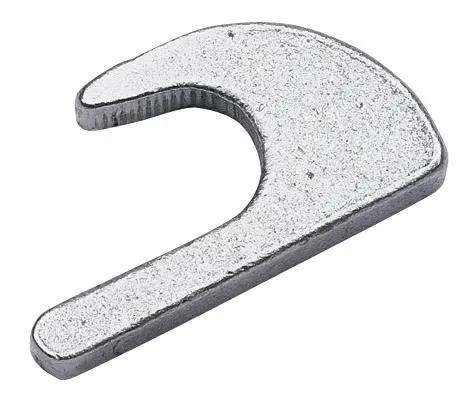

Kinedyne Heavy-Duty Weld-On Standard J Hook, Flame Cut 5/8 in Steel, 6670 lbs Working Load Limit

#KIN10003

Product Overview


The Kinedyne Weld-On Standard J Hook is engineered for heavy-duty applications, designed to fit flat against your trailer or truck for easy welding. Constructed from flame-cut 5/8 in steel, it provides a robust anchor point with a working load limit of 6670 lbs (3,025 kgs). This durable J-hook ensures securement of heavy loads, requiring a minimum 1/4" fillet weld around the entire contact surface and 1/8" penetration for optimal strength. Always ensure the J-hook is attached to a securing point of equal or greater strength to maintain its established working load limit.

See More
See Less

Features & Benefits


  • Designed to fit flat on trailer for easy welding
  • Flame Cut from 5/8" Steel
  • 6670Lbs Working Load Limits
  • Standard J Hook

Specifications


Color Grey
Height 1-19/64 in
Length 1-55/64 in
Material Steel
Style Standard J Hook
Type Weld-On
Weight 0.5 lbs
Width 5/8 in
