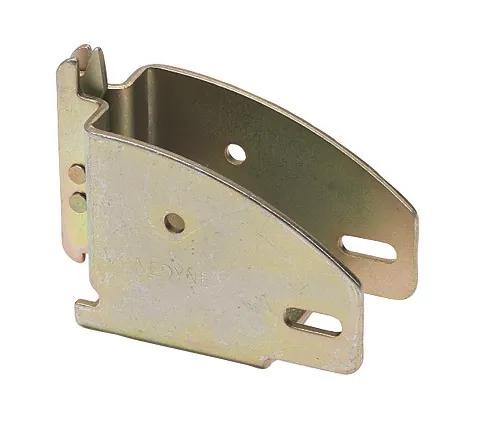

Kinedyne Series E or A Standard Wood Beam Socket, Zinc Plated, Positive Locking Mechanism, for 2 in x 4 in or 2 in x 6 in Lumber

#KIN1845

Product Overview


Have a lot of lumber on your hands and want to use them as inexpensive alternative Shoring Beams? You'll need Kinedyne's Series E or A Wood Beam Socket to help you out. Kinedyne's Series E or A Wood Beam Socket turns your lumber into sturdy Shoring Beams to help you shelve, secure, and divide your trailer's cargo. A quick and inexpensive alternative to the standard Beam, our Wood Beam Socket lets you attach a standard commercial grade 2" x 4" or 2" x 6" piece of lumber into a strong support for your cargo securement system. All you need to do is insert the wood into the Beam Socket, then insert the Beam Socket into the Series E or A Horizontal or Vertical Logistic Track. Now you have a reliable, adjustable, and removable Shoring Beam for your trailer.

See More
See Less

Features & Benefits


  • Series E or A Standard Wood Beam Socket. Features include Zinc Plating and a positive locking mechanism. For use with standard commercial 2" x 4" or 2" x 6" lumber.

Specifications


Application Use with standard commercial 2" x 4" or 2" x 6" lumber
Color Gold Dichromate
Finish Zinc Plating
Height 3-15/32 in
Length 4-1/4 in
Material Carbon Steel
Product Common Use Shoring Beam Socket for cargo securement
Strap Tightening Apparatus Positive Locking Mechanism
Style Standard
UPC 52474001687
Vertical Working Load Limit (lbs) 500 lbs
Weight 0.92 lbs
Width 1-15/16 in

Interchanges & Equivalent parts:


4092110
ANR4092110
40921-10
AN40921-10
