Lamp / Clearance & Marker Sealed Incandescent
#TRL15745Y
Product Overview

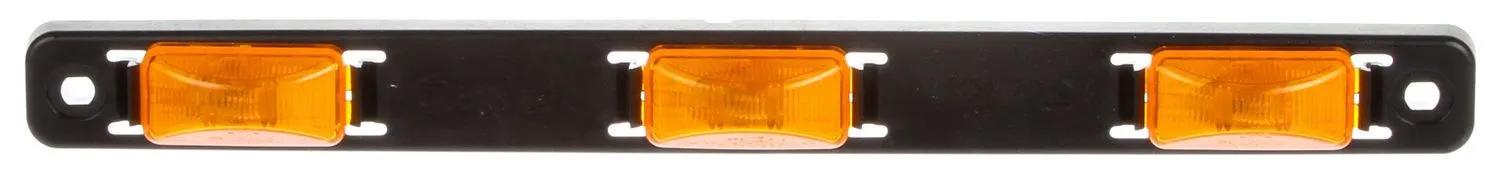

15 Series, Incandescent, Identification Bar, Rectangular, Yellow, 3 Lights, 6" Centers, Black, 12V, Kit
Features & Benefits
- Features high impact polycarbonate ID bar designed to fit in limited mounting areas
- Lamps are mounted on 6 " centers
- Direct replacement for Ford
- Fits in most narrow header rails
- Snap-lock tabs allow for easy installation
- Wide variety of lighting products
Specifications
| Application | Universel |
| Couleur | Jaune |
| Taille commune | 1 in (2.54 cm) x 2 in (5.08 cm) |
| Contient | Barre d'identification, lampes, câblage |
| Major actuel | 0,33 amp |
| Profondeur | 1-29/64 po |
| Dimension | 2.5 in. L x 1.21 in. W x .83 in. D |
| Convient au tirebouchon - Numéro(s) de pièce | 93945 |
| Hauteur | 1-39/64 po |
| Trousse (O/N) | Oui |
| Longueur de la lampe | 17-1/2 po |
| Ampérage SAE d'ampoule | P2 |
| Diamètre du trou de vis de la lampe | 0,31 po |
| Lamp Type | Sealed Incandescent |
| Lamp Width | 1,61 po |
| Lamp Wire Length | 6 po |
| Lens Color | Jaune |
| Lens Height | 1-13/64 po |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Lens Width | 2-31/64 po |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 5/16 in (0.79 cm) |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Montage à vis |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 2 |
| Plug Side One | PL-10 |
| Plug Side Two | Stripped End |
| Product Type | Identification Bar |
| Series | 15 Series |
| Shape | Rectangulaire |
| Standard | P2 |
| Technology | Incandescent |
| VMRS Code | 034-004-149 |
| Volt | 12V |
| Weight | 0,55 lb |
| Width | 17-29/64 po |
| Wire Gauge | 16 ga |
| Unit Size | 1 |
Interchanges & Equivalent parts:
| 385843 |
| TL15745Y |
| HT50602157 |
| TLD15745Y |
| 15745Y |
| 8413-15745Y |
| LIT15745Y |
| LT718Y |
| TL 15745Y |
| TL 15745Y |
| 1503A |
| 49173GR0 |
| M1503A |
| 49173 |
| 758315745Y |
