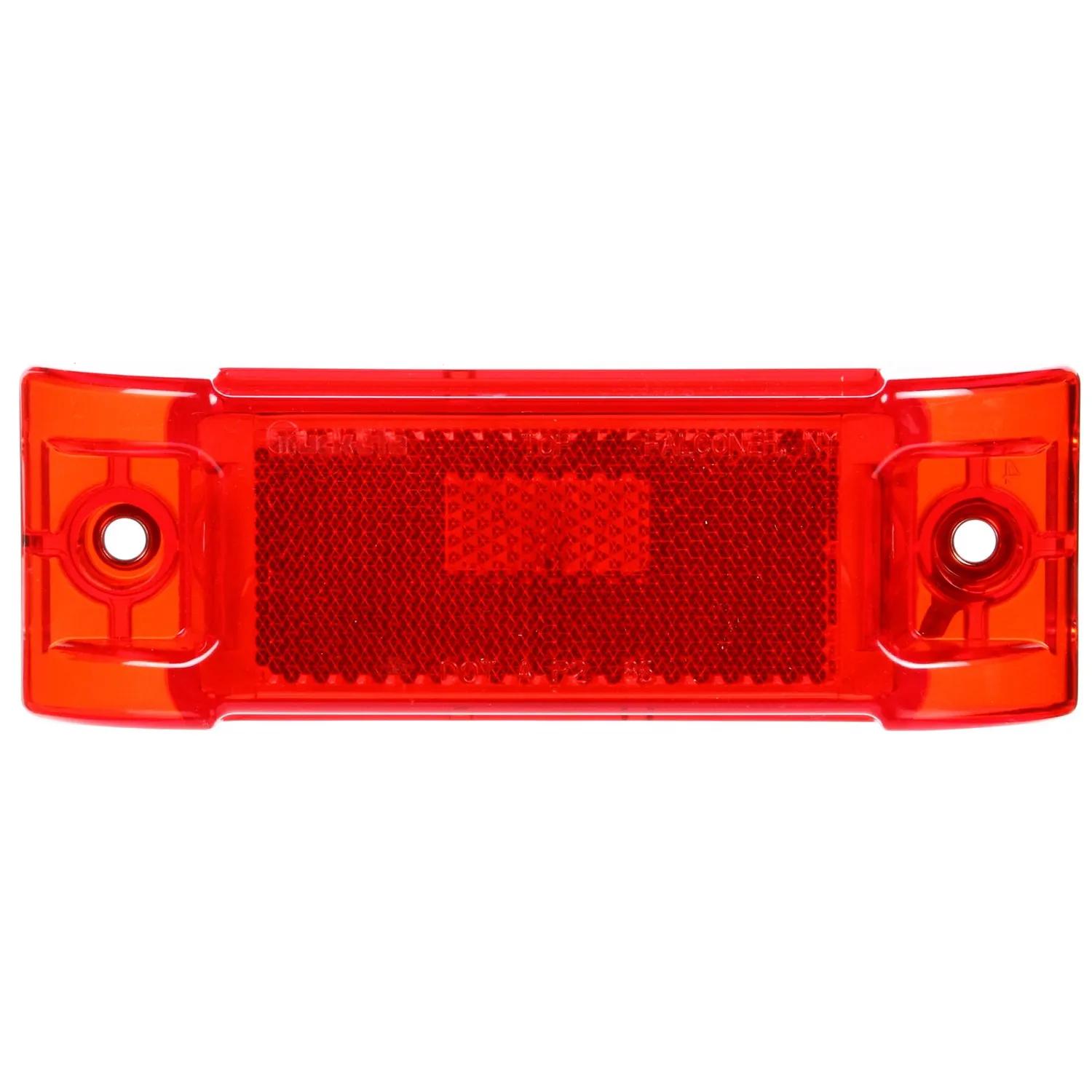

Lamp / Clearance & Marker Sealed Incandescent
#TRL21507R
Sommaire du produit
Super 21, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Reflectorized, Self-Piercing Plug, 12V, Kit
Caractéristiques et avantages
- Available with standard or reflectorized lens
- Suitable for PC requirements on a 45-degree angle with additional reflectors
- Version available for ABS requirements
- Optional gaskets available to improve seal between lamp and body
Spécifications
| Color | Red |
| Common Size | 2 in (5.08 cm) x 6 in (15.24 cm) |
| Contents | Lamp, Plug |
| Current Major | 0.33 amp |
| Depth | 1-19/64 in (3.3 cm) |
| Diamond Shell (Y/N) | Yes |
| Fits Pigtail Part #(s) | Self Piercing Plug Included |
| Height | 2-1/32 in (5.16 cm) |
| Kit (Y/N) | Yes |
| Lamp Length | 6 in (15.24 cm) |
| # Lamp Prongs | 1 |
| Lamp SAE Rating | P2, P3 |
| Lamp Type | Sealed Incandescent |
| Largeur de la lampe | 2.03 in. |
| Couleur des lentilles | Red |
| Lentille - Hauteur | 2-1/32 in (5.16 cm) |
| Matériau de la lentille | Acrylic |
| Forme de lentille | Rectangular |
| Lentille - Largeur | 6 in (15.24 cm) |
| Matériel | ABS |
| Couleur du support/garniture | Red |
| Type de support | Side Mount |
| Nombre de Diodes/Ampoules | 1 |
| Fiche #1 | No Plug |
| Fiche #2 | No Plug |
| Type de produit | Marker Clearance Light |
| Réfléchissant (O/N) | Yes |
| Séries | Super 21 |
| Forme | Rectangular |
| Standard | FMVSS 108 |
| Technologie | Incandescent |
| Code VMRS | 034-004-021 |
| Volt | 12V |
| Poids | 0.4 lbs (0.18 kg) |
| Largeur | 6 in (15.24 cm) |
Interchanges et pièces équivalentes:
| 4687266910 |
| TL21507R |
| HT50603276 |
| TLD21507R |
| 21507R |
| 8413-21507R |
| LIT21507R |
| TL 21507R |
| TL 21507R |
| GRT46872 |
