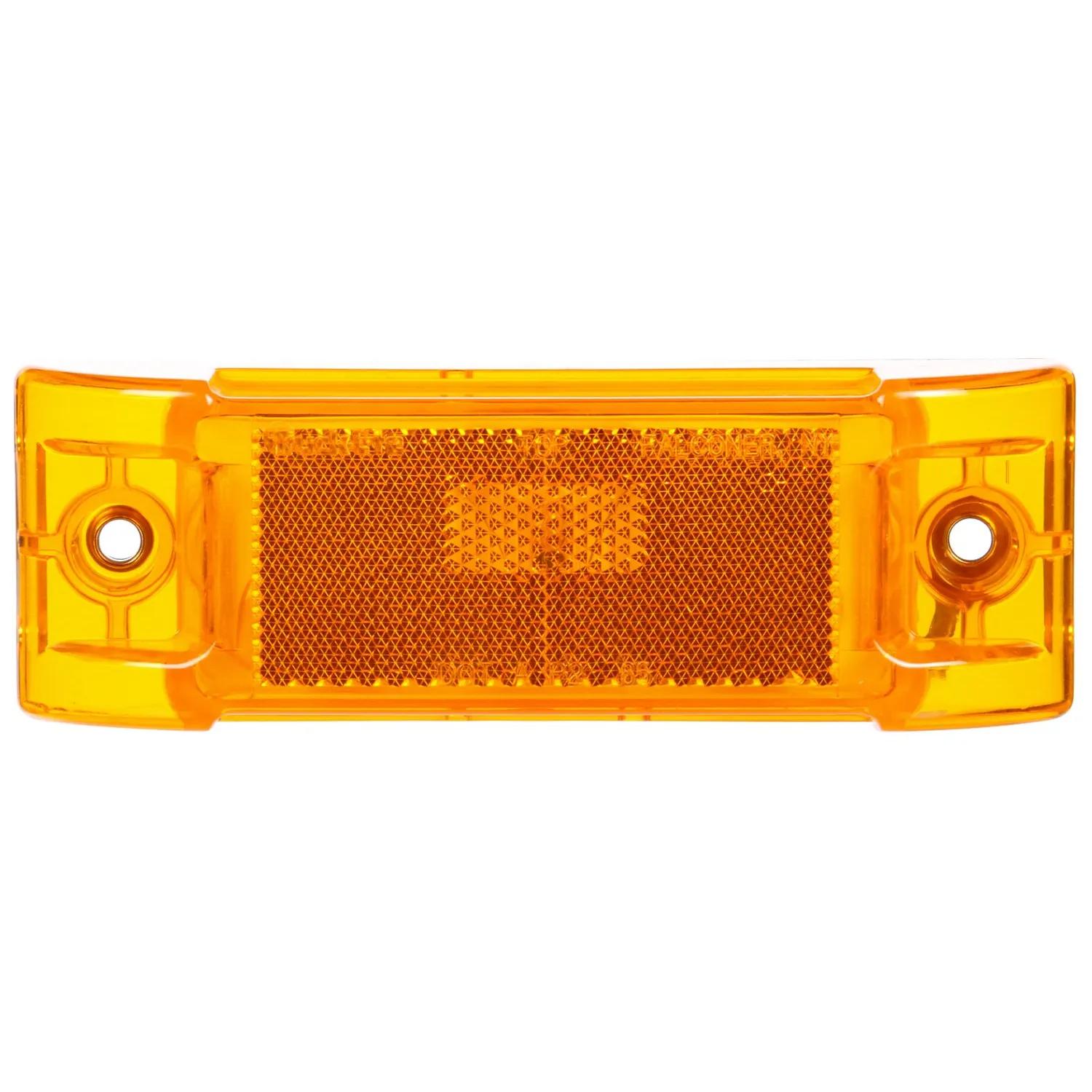

Lamp / Clearance & Marker Sealed Incandescent
#TRL21507Y
Product Overview
Super 21, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Reflectorized, Self-Piercing Plug, 12V, Kit
Features & Benefits
- Available with standard or reflectorized lens
- Suitable for PC requirements on a 45-degree angle with additional reflectors
- Version available for ABS requirements
- Optional gaskets available to improve seal between lamp and body
Specifications
| Color | Yellow |
| Common Size | 2 in (5.08 cm) x 6 in (15.24 cm) |
| Contents | Lamp, Plug |
| Current Major | 0.33 amp |
| Depth | 1-19/64 in (3.3 cm) |
| Diamond Shell (Y/N) | Yes |
| Fits Pigtail Part #(s) | Prise autoperçant |
| Height | 2-1/32 in (5.16 cm) |
| Kit (Y/N) | Yes |
| Lamp Length | 6 po |
| # Lamp Prongs | 1 |
| Lamp SAE Rating | P2, P3 |
| Lamp Type | Sealed Incandescent |
| Lamp Width | 2,03 po |
| Lens Color | Yellow |
| Lens Height | 2-1/32 in (5.16 cm) |
| Lens Material | Acrylic |
| Lens Shape | Rectangular |
| Lens Width | 6 in (15.24 cm) |
| Material | ABS |
| Mount/Trim Color | Yellow |
| Mount Type | Side Mount |
| Number of Diodes/Bulbs | 1 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | Yes |
| Series | Super 21 |
| Shape | Rectangular |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Weight | 0.4 lbs (0.18 kg) |
| Width | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| TL21507Y |
| HT50603277 |
| TLD21507Y |
| 21507Y |
| 8413-21507Y |
| LIT21507Y |
| TL 21507Y |
| TL 21507Y |
