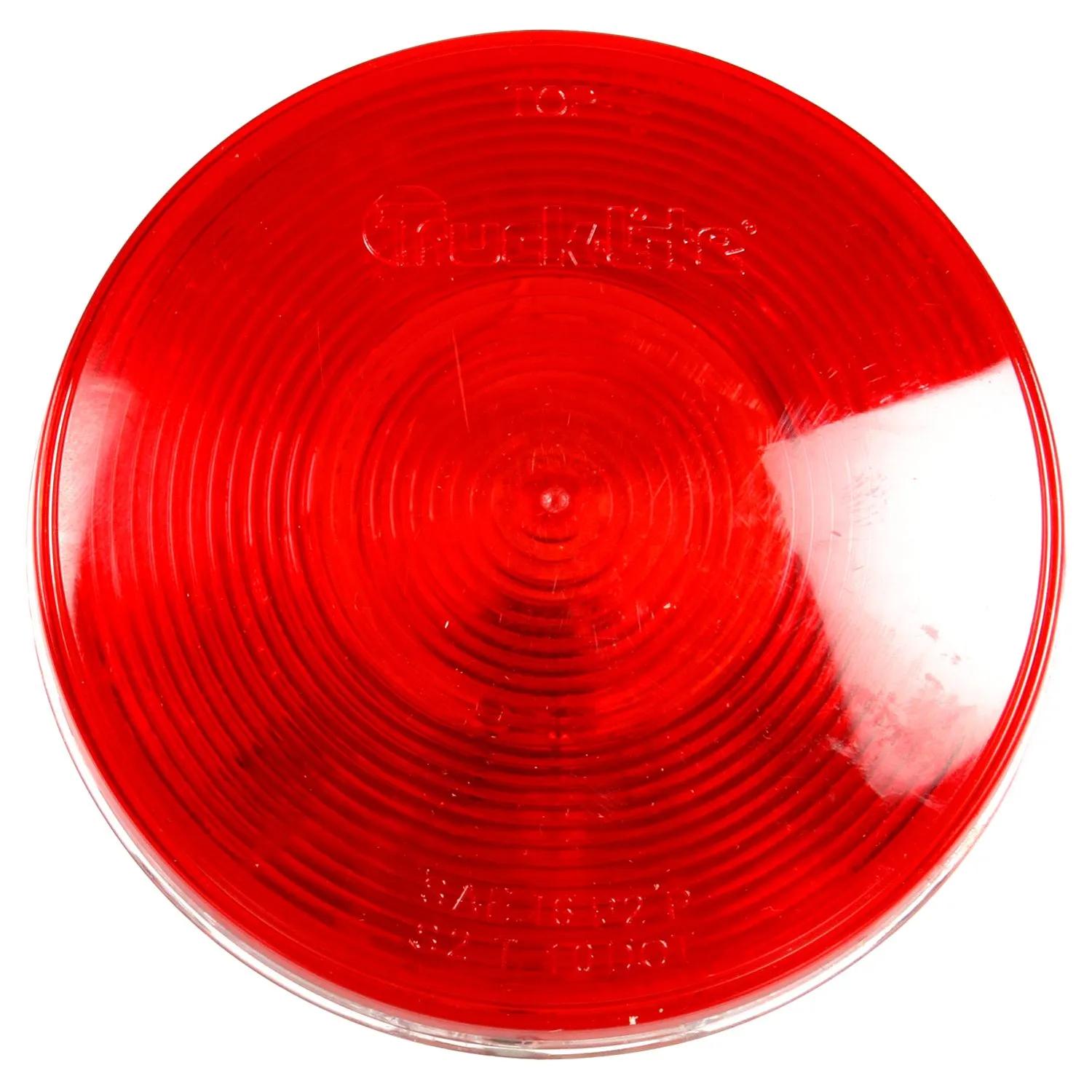

Lamp / Signal Universal Sealed
#TRL40206R
Sommaire du produit
40 Series, Clear Back, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, PL-3, 12V
Caractéristiques et avantages
- Features clear back housing
- Grommet kit features flush mounting in a 4-1/2"
- hole
- Not recommended for clearance marker applications
Spécifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-7/64 in (5.36 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94993 |
| Height | 4-5/16 in (10.95 cm) |
| Kit (Y/N) | No |
| Lamp Length | 4-5/16 in (10.95 cm) |
| # Lamp Prongs | 3 |
| Lamp Type | Sealed |
| Lamp Volt Rating | 12 Volts |
| Lamp Width | 2.11 in. |
| Lens Color | Red |
| Lens Height | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 4-5/16 in (10.95 cm) |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 4-1/2 in (11.43 cm) |
| Mount Type | Grommet Mount |
| Number of Diodes/Bulbs | 1 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Product Type | Stop/Turn/Tail |
| Reflectorized (Y/N) | No |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 0.36 lbs (0.16 kg) |
| Width | 4-5/16 in (10.95 cm) |
Interchanges et pièces équivalentes:
| 548074C1 |
| 14200347 |
| 53100 |
| 531003 |
| 46002201 |
| 964351 |
| 735072 |
| 841340206R |
| 40206R |
| HT50602560 |
| TL40206R |
| TLD40206R |
| LCF00318 |
| 40206R3 |
| 4046 |
| 40463 |
| 52770 |
| 783872 |
| 16100070 |
| 8413-40206R |
| LIT40206R |
| TL 40206R |
| TL 40206R |
| TL-40206R |
| 4066 |
| 52770GR0 |
| 53100GR0 |
| M429R |
| 527703 |
| 52770-3 |
