Lamp / Utility
#TRL30206C
Product Overview

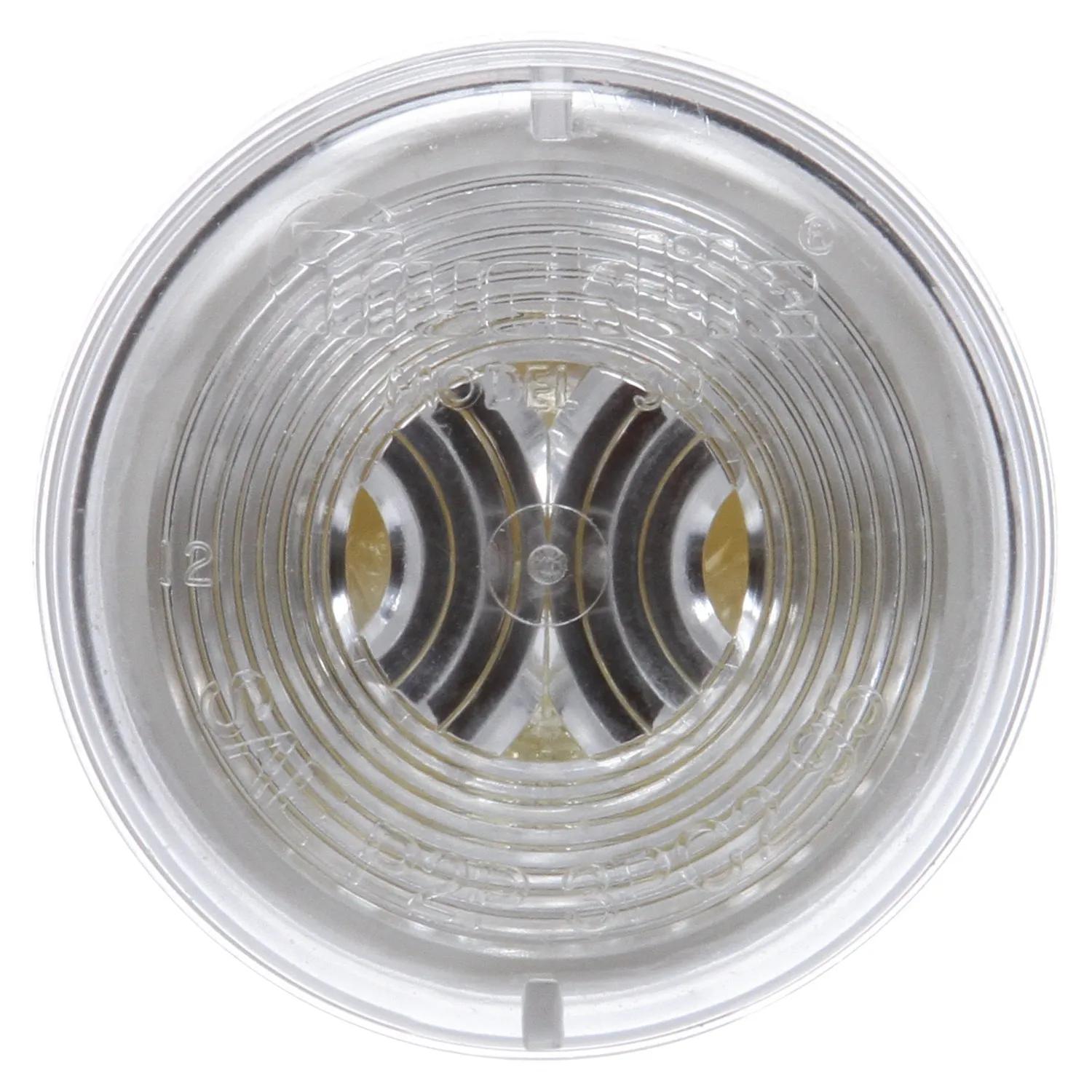

30 Series, Incandescent, 1 Bulb, Round Clear, Utility Light, PL-10, 24V
Features & Benefits
- High-impact polycarbonate construction
- Lens and housing are sonically sealed
- 15,000-hour rated 12V bulb life
- Replaces Signal-Stat 1030W
Specifications
| Amps | 0.17 amp |
| Color | White |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp |
| Depth | 11/16 in (1.75 cm) |
| Fits Pigtail Part #(s) | Fits Most All PL10 Pigtails |
| Height | 2 in (5.08 cm) |
| Kit (Y/N) | No |
| Lamp Length | 2 in (5.08 cm) |
| # Lamp Prongs | 0 |
| Lamp SAE Rating | No |
| Lamp Type | Utility |
| Lamp Volt Rating | 24 Volts |
| Lamp Width | 0.69 in. |
| Lens Color | Clear |
| Lens Height | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 2 in (5.08 cm) |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number of Diodes/Bulbs | 1 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Product Type | Utility Light |
| Series | 30 Series |
| Shape | Round |
| Switch | No |
| Technology | Incandescent |
| VMRS Code | 034-004-021 |
| Volt | 24V |
| Width | 2 in (5.08 cm) |
Interchanges & Equivalent parts:
| 10015429 |
| 14200528 |
| 30206C |
| 432096 |
| A94890080 |
| 805468 |
| TL30206C |
| TLD30206C |
| 8413-30206C |
| LIT30206C |
| TL 30206C |
| TL 30206C |
