2 POINTS

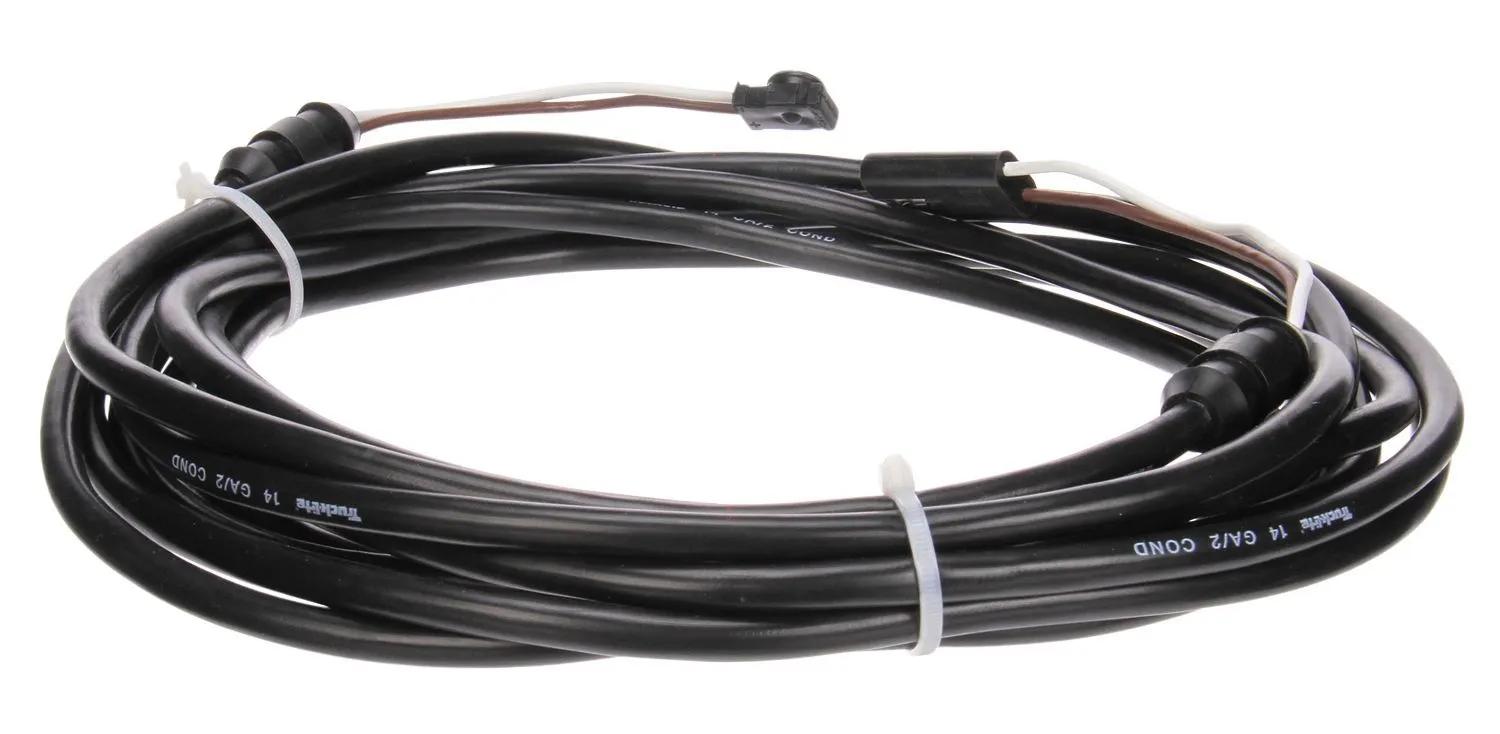

Lamp Wiring Harness
#TRL50384
Product Overview
50 Series, 2 Plug, 252 in. Marker Clearance Harness, 14 Gauge, Fit 'N Forget M/C, 2 Position .180 Bullet Terminal
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Application | Faisceau de dégagement de marqueur à prise unique |
| Type de câble | Rond |
| Tension nominale de faisceau | 12 - 24 V |
| Trousse (O/N) | Non |
| Jauge de fil d'ampoule de harnais | 14 ga, |
| Lamp Harness Wire Length | 252 po |
| Length | 21 pi |
| # of Contacts | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | Borne ronde .180 à 2 positions |
| Product Type | Harnais |
| Series | Série 50 |
| VMRS Code | 034-004-138 |
| Weight | 2 lb |
| Wire Color | White |
| Wire Gauge | 14 |
Interchanges & Equivalent parts:
| 811001433 |
| 703050370 |
| HT50600477 |
| TLD50384 |
| 8413-50384 |
| LIT50384 |
| TL 50384 |
| TL 50384 |
| TL50384 |
| 50384 |
