Work Light, Rectangular, V: 12 & 24
#TRL81510
Product Overview

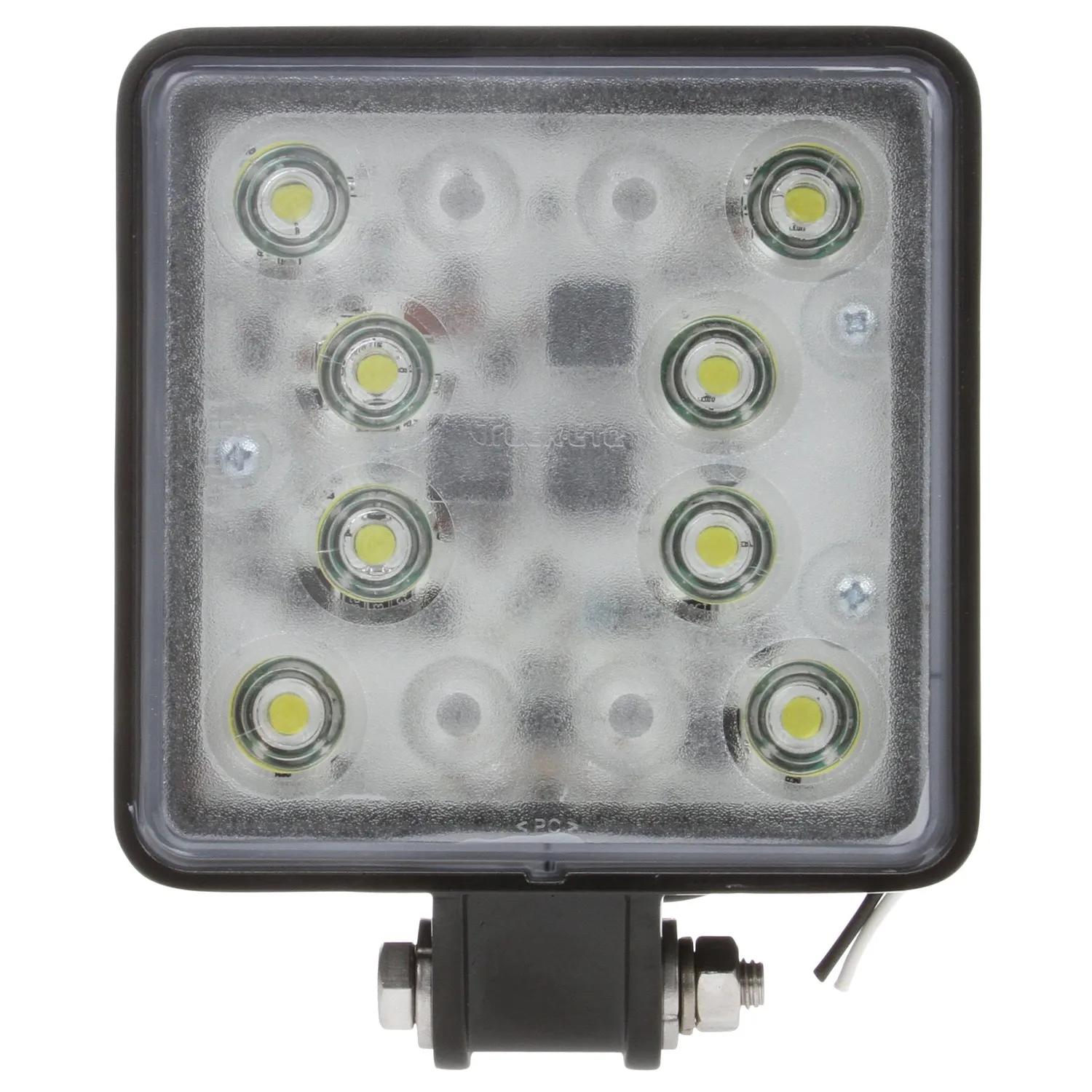

Super 81 4x4 in. Square LED Work Light, Black, 8 Diode, 1890 Lumen, Blunt Cut, 12-24V
Features & Benefits
- Rear Fins Keep Heat Away From LEDs & Lamp Circuity, Allowing For Increased Light Output & Lamp Longevity.
- White LEDs Offer Daylight-like Visibility. Currect Regulated Switch Circuit. 18 Gauge Adr Compliant Wires.
- Ece Reg 10-3 Emi Compliant. Sae Voltage Spike Protected.
- 8 Light Emitting Diodes. 1.84-2.25amp At 13.5 Volts. 0.,83-1.03amp At 28 Volts.
- 1800 Warm Lumens 2100 Cold Lumens.
- Cold Lumen Power Refers To The Lumen Power Ration Prior To Warm-up Phase.
- Warm Lumen Power Refers To The Lumen Power Rating After The Warm-up Phase Has Occurred.
Specifications
| Amps | 2.04 amp |
| Application | Work Lamp |
| Color | White |
| Contents | LED Work Lamp, Rectangular, 1800 Lumens |
| Depth | 2-19/32 in (6.58 cm) |
| Dimension | 4-3/4 in (12.07 cm) x 6-5/32 in (15.65 cm) x 2-21/32 in (6.76 cm) |
| Hauteur | 4-45/64 in (11.94 cm) |
| Trousse (O/N) | No |
| Nbre de broches de l'ampoule | 1 |
| Matériau de la lentille | Polycarbonate |
| Intensité lumineuse | 3270 cp |
| Lumens (lm) | 1890 lm |
| Matériel | Stainless Steel |
| Type de support | Stud Mount |
| Nombre de câbles | 2 |
| Modèle | Work |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | PL-2 (Stripped End) |
| Type de produit | Work Light |
| Séries | 81 Series |
| Forme | Rectangular |
| Standard | SAE Spike Protected, ECE reg 10-3 EMI |
| Style | 4.5 in x 4.5 in Work Lamp |
| Technologie | LED |
| Type | 4.5 in x 4.5 in Work Lamp |
| Code VMRS | 034-006-031 |
| Volt | 12V & 24V |
| Weight | 2.2 lb (1 kg) |
| Width | 4-45/64 in (11.94 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 300-391F-8 |
| 81510-3 |
