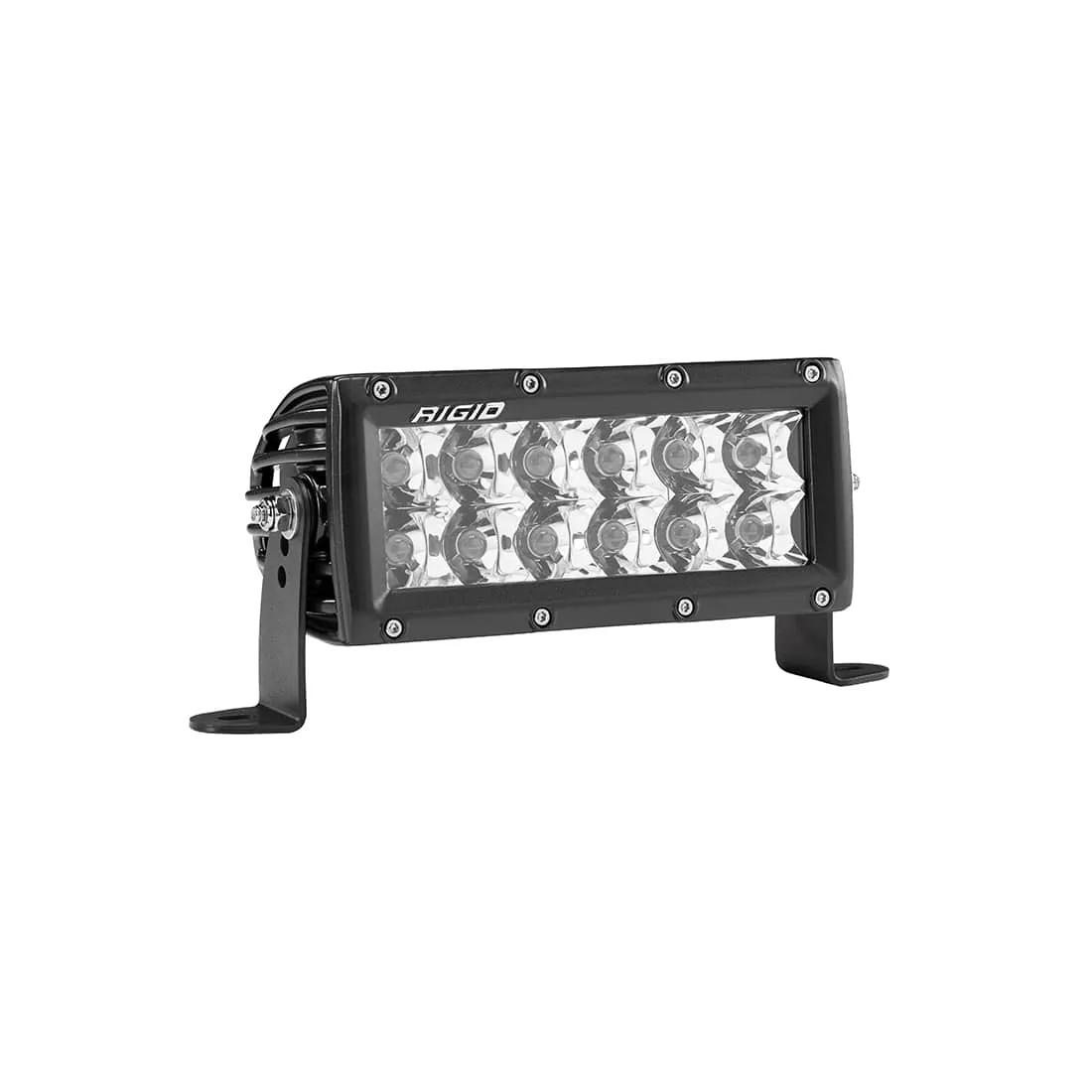

Work Light, Rectangular, V: 36, Lumens: 9504
#RIG106213
Features & Benefits
- Blacked-Out Circuit Board
- GORE Pressure Equalizing Vent
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy Heatsink
- Integrated Thermal Management System
- Impact Resistant Polycorbonate Lens
- Over/Under Voltage Protection
- Patented Technology
- Impact Resistant Polycarbonate Lens
Specifications
| Amps | 6.07 amp |
| Beam Angle | 16.5 deg |
| Beam Distance @1Lux | 461,6 |
| Beam Distance @.25Lux | 923,2 |
| Bulb Type | LED |
| Color | White |
| Contents | BLACK HOUSING ONLY2 Black Powder Coated, L-shape brackets, Deutsch Connector (4?-10?), Open Leads, No Connector (20?-50?), Harness w/SwitchWHITE HOUSING ONLY2 Stainless Steel, L-shape brackets, Deutsch Connector (4?-10?), Open Leads, No Connector (20?-50?), Harness w/Switch |
| LED rows | Dual row |
| Light Intensity | 213058 cd |
| Lumens (lm) | 9504 lm |
| Lux @ 10m | 2130,58 |
| Material | Aluminum Alloy |
| Mount Type | Surface Mount |
| Optics | Spot |
| Raw Lumens | 9504 lm |
| Series | E Series |
| Shape | Rectangular |
| Size | 6 in (15.24 cm) |
| Type | Spot |
| Vertical Beam Field (m) | 50-17/32 ft (15.4 m) |
| Volt | 9V & 36V |
| Watts | 85 W |
| Weight | 2.84 lb (1.29 kg) |
