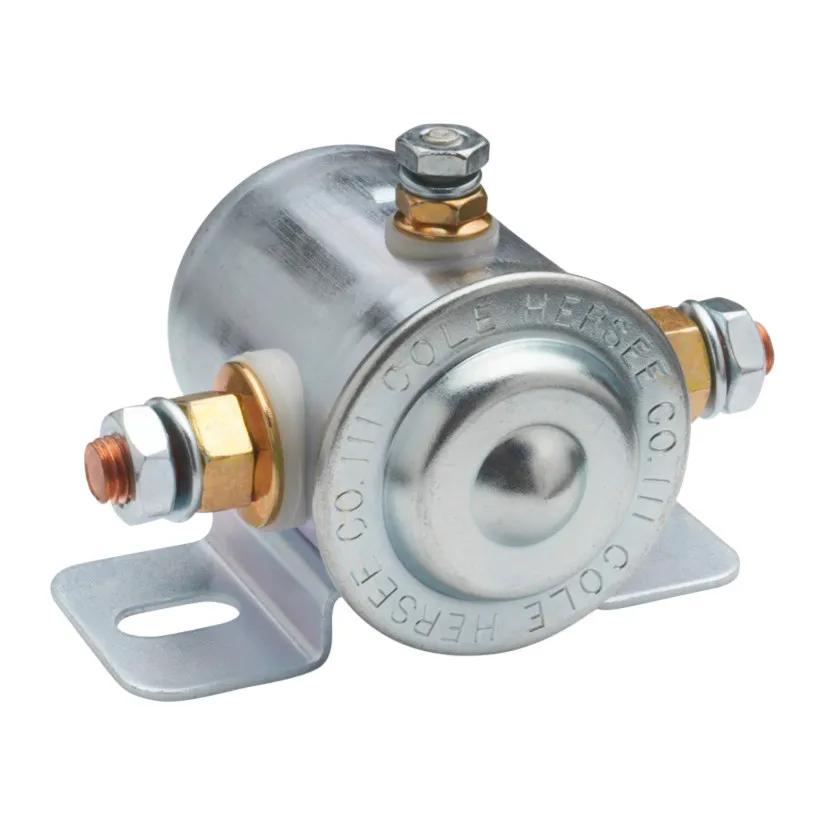

Littelfuse Solenoid Relay 12V Coil, 17.5 Ohm, Grounded 3-Stud, 85A Continuous, 36V Rating
#LIF24106
Product Overview
The Littelfuse 24106 solenoid relay features a 12 V coil with 17.5 ohm impedance and a grounded, three-stud design. It is constructed with a plated steel housing and single-pole, single-throw (SPST) normally open contacts. Rated for 85 A continuous current and 125 A make/break capacity at 36 V, this relay includes a flat bracket and comes with hex nuts and lock washers bagged for installation. Ideal for construction vehicles, material handling, agricultural equipment, and motor or inductive load applications.Solenoid Relay, Grounded, SPST Contact, Silver Contact, Plated Steel, 85 A, 36 V, For Construction Vehicles, Material Handling, Agricultural Equipment, Motor and Inductive Loads
Features & Benefits
- 85 A continuous current rating
- 12 V coil with 17.5 ohm impedance
- 125 A make/break rating
- Grounded, three-stud solenoid design
- Flat bracket
- Included hex nuts and lock washers are bagged
Specifications
| Application | Construction Vehicles, Material Handling, Agricultural Equipment, Motor and Inductive Loads |
| Contact Material | Silver |
| Housing Material | Plated Steel |
| Mounting Type | Flat Bracket |
| Number Of Contacts | 1 |
| Packaging | Spool |
| Type | Grounded |
| Contact Type | SPST |
| Current Rating | 85 A |
| Voltage Rating | 36 V |
| Product Category | Solenoid Relay |
Interchanges & Equivalent parts:
| COL24106 |
| 82-0308 |
| 24106BX |
| 577304312 |
