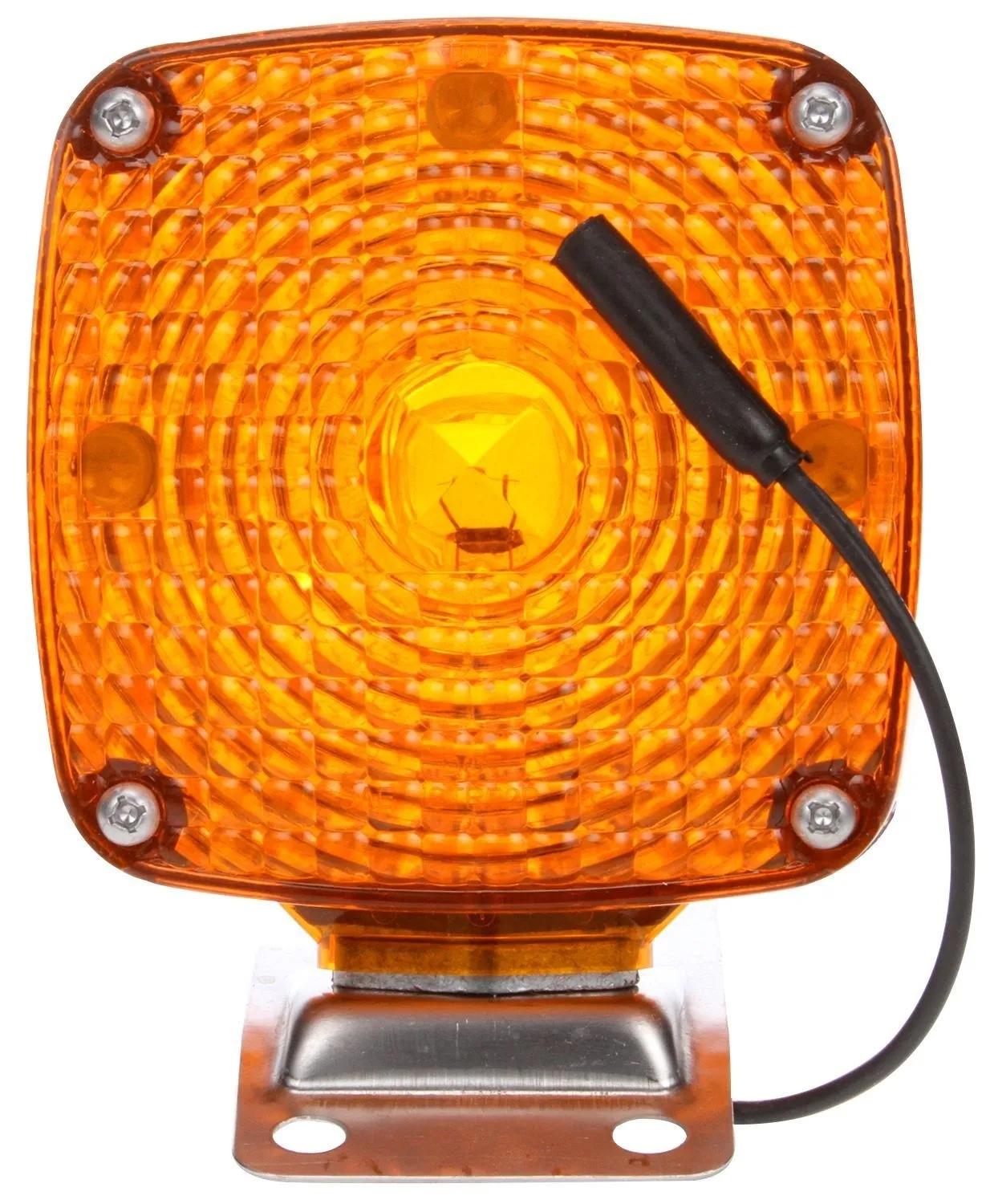

Pedestal Light, Amber & Yellow, Square
#TRL956AA
Product Overview
Signal-Stat, Incandescent, Yellow Square, 1 Bulb, Dual Face, Horizontal Mount, 2 Wire, Pedestal Light, Bracket Mount, Female Terminal
Features & Benefits
- Receptacle type connector
- Mounting bracket included
- Die cast base assembly
Specifications
| Color | Amber |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 2-1/4 in (5.72 cm) |
| Height | 4-3/8 in (11.13 cm) |
| Kit (Y/N) | No |
| Length | 4-3/8 in (11.13 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard, Female |
| Position | Universal |
| Series | Signal-Stat |
| Shape | Square |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-003-071 |
| Volt | 12V |
| Width | 4-3/8 in (11.13 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 582779C91 |
| 956AA |
| SIG956AA |
| TLD956AA |
| 8413-956AA |
| LIT956AA |
| TL 956AA |
| TL956AA |
