Pedestal Light, Red & Amber, Square
#TRL4742
Product Overview

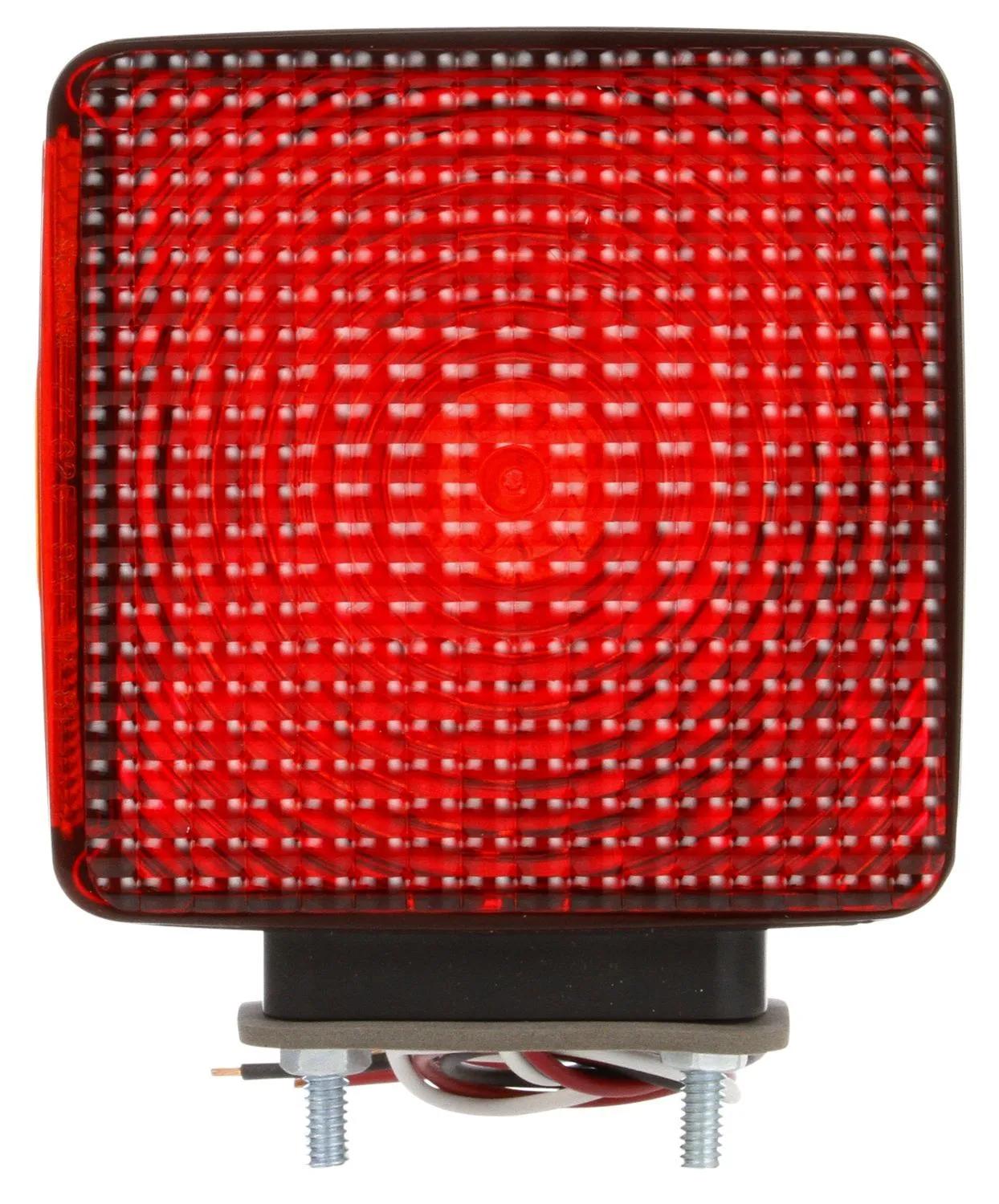

Signal-Stat, Incandescent, Red/Yellow Square, 1 Bulb, Dual Face, Vertical Mount, Side Marker, 2 Wire, Pedestal Light, 2 Stud, Stripped End
Features & Benefits
- Functions as turn signal, parking and side marker lamp, with reflector
- ABS housing will not rust or corrode
- Shock/Mount bulb socket
- Includes separate ground wire for installation
- Fits right and left side applications
Specifications
| Color | Amber & Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 2-3/8 in (6.05 cm) |
| Height | 4-3/4 in (12.07 cm) |
| Kit (Y/N) | No |
| Length | 5-1/16 in (12.85 cm) |
| Lens Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Universal |
| Series | Signal-Stat |
| Shape | Square |
| Single or Dual | Dual Face |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-003-071 |
| Volt | 12V |
| Width | 4-3/4 in (12.07 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 1142734 |
| 55340 |
| 55420 |
| 84134742 |
| 4742 |
| SIG4742 |
| TKL4742 |
| TL4742 |
| TLD4742 |
| 12715 |
| 81311 |
| TRU4742 |
| 4742S1G |
| 8413-4742 |
| LIT4742 |
| SIG 4742 |
| TL 4742 |
| 55420GR0 |
| GRT55340 |
| 55410 |
| LT1798 |
