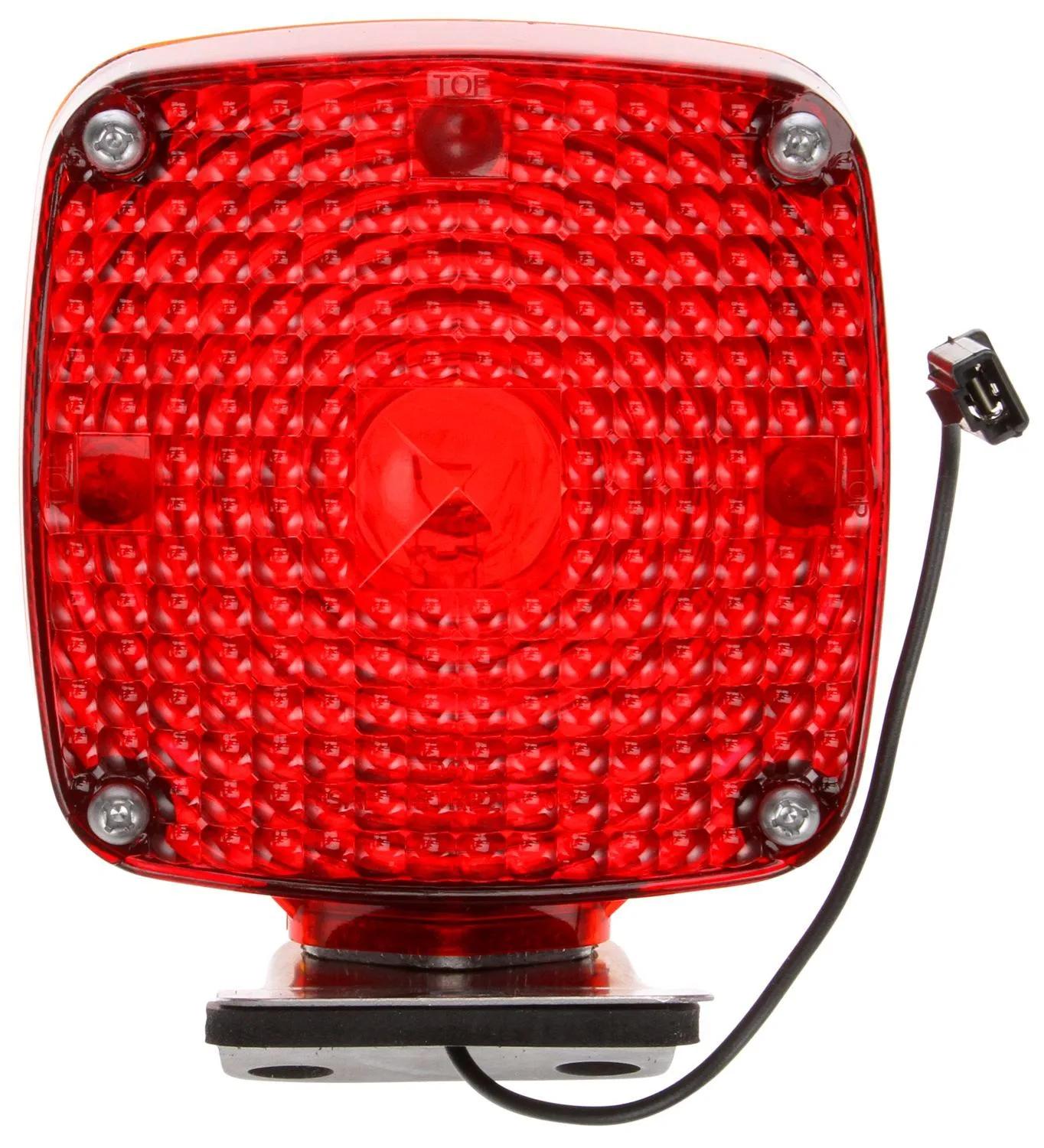

Pedestal Light, Red & Amber, Square
#TRL950
Product Overview
Signal-Stat, Incandescent, Red/Yellow Square, 1 Bulb, Dual Face, 1 Wire, Pedestal Light, Surface Mount, Chrome, Packard Connector
Features & Benefits
- Blade type connector, Die cast base assembly, Double optic lenses
- Mounting bracket included
Specifications
| Color | Amber & Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Depth | 2-7/16 in (6.2 cm) |
| Height | 4-3/4 in (12.07 cm) |
| Kit (Y/N) | No |
| Lens Material | Acrylic |
| Material | Zinc |
| Mount Type | Surface Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Packard Connector |
| Position | Universal |
| Series | Signal-Stat |
| Shape | Square |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-003-016 |
| Volt | 12V |
| Width | 4-3/8 in (11.13 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 8413950 |
| 950 |
| SIG950 |
| TL950 |
| TLD950 |
| 8413-950 |
| LIT950 |
| TL 950 |
| 429844C91 |
