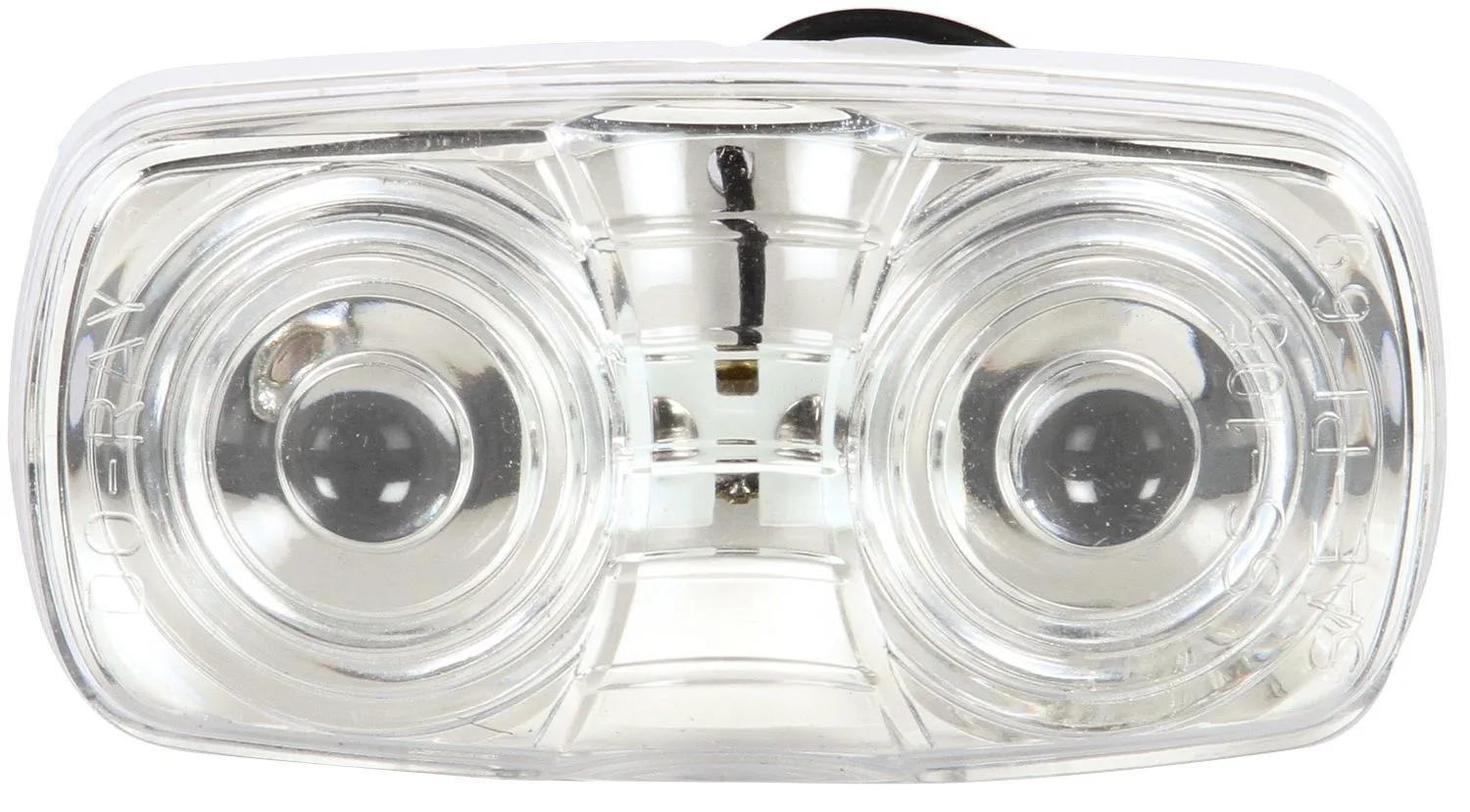

Utility Light, Clear, Rectangular
#TRL1211W
Product Overview
Signal-Stat, Permastat, Incandescent, 2 Bulb, Rectangular Clear, Utility Light, Bracket Mount, Hardwired, Blunt Cut, 12V
Features & Benefits
- 15,000-hour bulbs
- Corrosion proof Permastat housing
- Snap-on lens for easy bulb replacement
Specifications
| Amps | 0.27 amp |
| Color | White |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp |
| Depth | 1-1/8 in (2.87 cm) |
| Dimension | 4 in (10.16 cm) x 1-1/8 in (2.87 cm) x 2 in (5.08 cm) |
| Height | 2 in (5.08 cm) |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Height | 2 in (5.08 cm) |
| Lens Material | Acrylic |
| Lens Width | 4 in (10.16 cm) |
| Mount Type | Bracket Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Utility Light |
| Series | Signal-Stat |
| Shape | Rectangular |
| Street Legal | No |
| Style | Shock/Mount 2 Bulb Die Cast |
| Switch | No |
| Technology | Incandescent |
| Type | Shock/Mount 2 Bulb Die Cast |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Weight | 0.15 lb (0.07 kg) |
| Width | 4 in (10.16 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 1211W |
| 84131211W |
| 810000288 |
| SIG1211W |
| TL1211W |
| TLD1211W |
| M138C |
| TRU1211W |
| 1211WS1G |
| 8413-1211W |
| LIT1211W |
| LT506C |
| TL 1211W |
| 61081GR0 |
| ML2040C |
| 61081 |
| 46791 |
