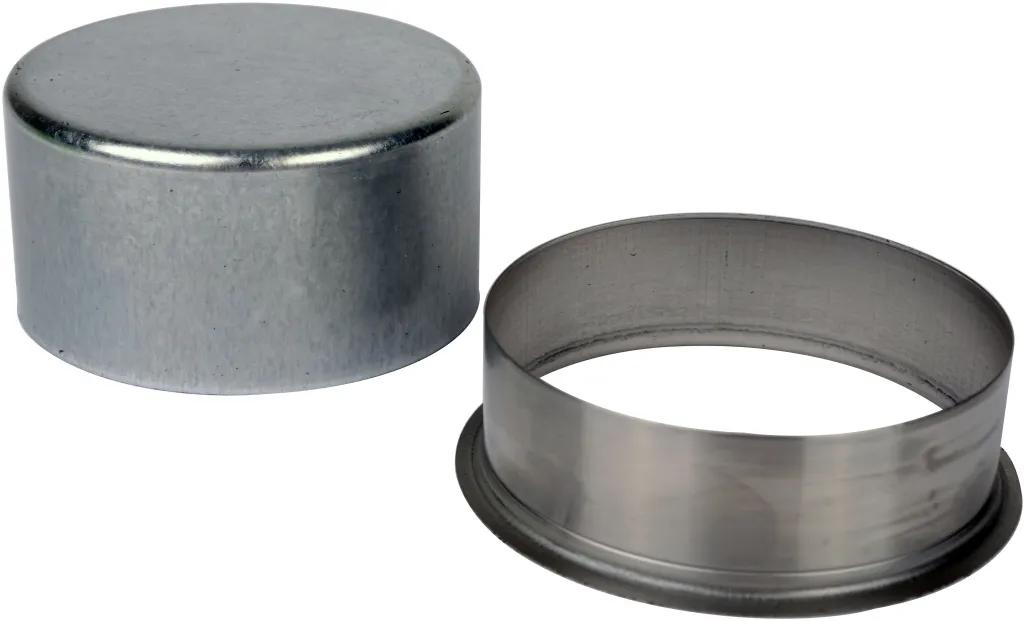

M/Trsax Input Speedi-Sleeve
#SKF99049
Sommaire du produit
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Caractéristiques et avantages
Caractéristiques et avantages
SKF99049 - Documents de caractéristiques - A
SKF99049 - Documents de caractéristiques - B
SKF99049 - Documents de caractéristiques - C
SKF99049 - Documents de caractéristiques - D
SKF99049 - Documents de caractéristiques - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Spécifications
| Compatible avec le diamètre de l'arbre | .469 in. To .475 in. / 11.91 mm To 12.07 mm |
| Diamètre de bride | 39/64 in (1.55 cm) |
| Épaisseur | 15/64 in (0.58 cm) |
Interchanges et pièces équivalentes:
| 145899049 |
| CR99049 |
| 965899049 |
| 99049 |
| 99049CHR |
| CHR99049 |
| N99049 |
| NN99049 |
| ZAR99049 |
| 4133450100 |
| 27SR3450 |
