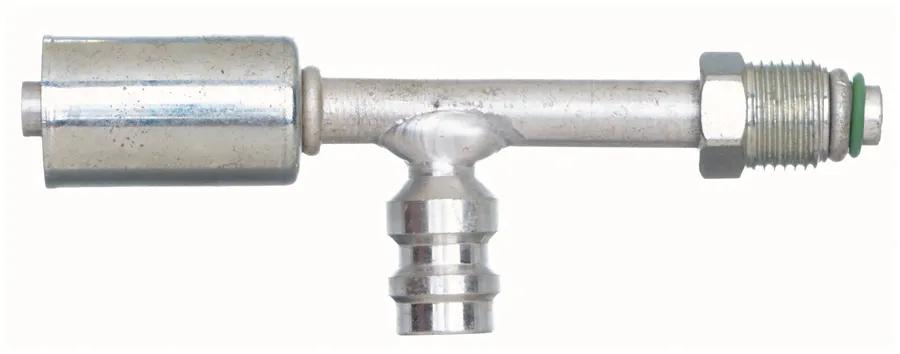

Male SAE Tube O-Ring Nut Swivel with R134a Svc Port-Aluminum (PolarSeal ACA)
#GATG45580-1212
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- O-Ring Not Included. Must Be Ordered Separately.
- Offered in Many of the Most Popular Styles of Aluminum Couplings w/ Select Styles Available in Zinc-Plated Steel.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Male SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum |
| Cut Off (in) – C | 2-15/32 in (6.27 cm) |
| Hose Recommendation | Gates PolarSeal Refrigerant Hose |
| Industrial Description | 12ACA-12MTON134SP |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 3-23/32 in (9.45 cm) |
| Series | PolarSeal ACA Male SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum |
| Thread | 1-1/16 in-12 |
| Type | PolarSeal ACA Male SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum |
Interchanges & Equivalent parts:
| G45580-1212 |
| 733203055 |
