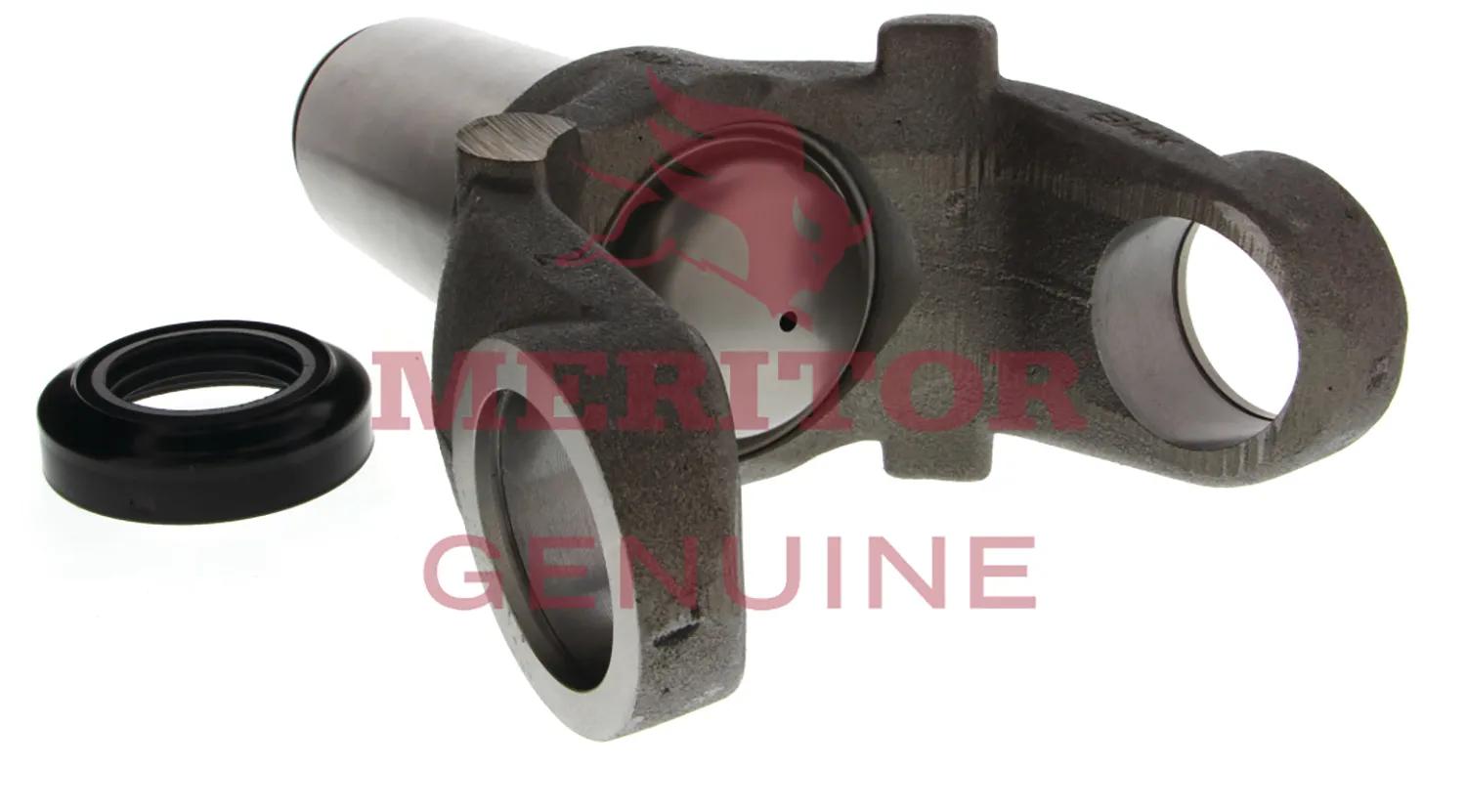

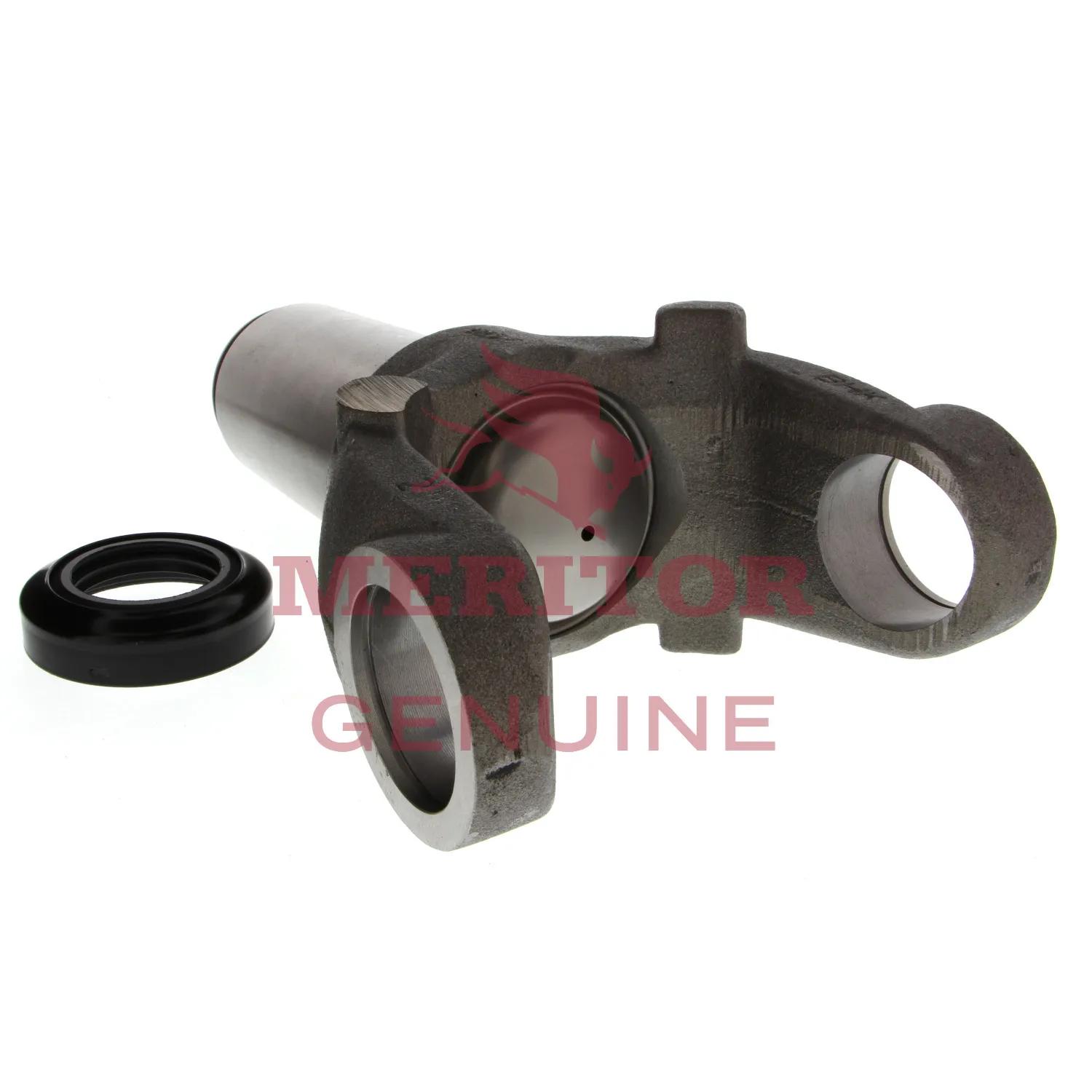

Meritor RPL20 Slip Yoke with 2.06 in Bearing Cap Diameter, 16 Splines
#ROC20RLS403A1S
Product Overview
Driveline component designed to provide a reliable connection between transmission and driveshaft. The RPL20 slip yoke minimizes wear and tear on drivetrain parts, absorbs torque fluctuations efficiently, reduces vibrations, and resists corrosion for increased durability. It ensures optimal power transfer and extends the life of driveline components.Slip Yoke, 2.06 in Bearing Cap Dia, C/L to End of Spline: 12.05 in, Joint Angle: 44 deg, 16 Splines, RPL20, Spline O.D.: 2.50 in
Features & Benefits
- Minimize wear and tear on drivetrain parts
- Extend the life of the driveline components
- Absorb driveline torque fluctuations efficiently
- Reduce drivetrain vibrations for smooth operation
- Resist corrosion and rust for increased durability
- Maintain optimal drivetrain performance under load
- Ensure proper power transfer from transmission to driveshaft
- Provide reliable connection between transmission and driveshaft
Specifications
| Bearing Cap Diameter | 2.06 in |
| Number of Splines | 16 |
| Series | RPL20 |
| UPC | 680502102138 |
| VMRS Code | 024-002-038 |
| Application | Connection between transmission and driveshaft |
| C/L to End of Spline | 12.05 in |
| Height | 8 in |
| Joint Angle | 44 deg |
| Length | 8-17/32 in |
| Outside Yoke Dimension | 7 in |
| Spline O.D. | 2.5 |
| Style | Slip |
| Type | Yoke |
| Product Category | Slip Yoke |
| Quantity | 1 |
| Weight | 20.6 lb |
Interchanges & Equivalent parts:
| 20RLS403A2 |
| 20RLS40-3A1S |
| 20RLS403A |
| 20RLS403A1S-RI |
| 8235-20RLS403A1S |
| ATI20RLS403A1S |
| S-17336 |
| TDA 20RLS40 3A1S |
| TDA 20RLS403A |
| TDA20RLS403A1S |
| 20RLS403A1S |
