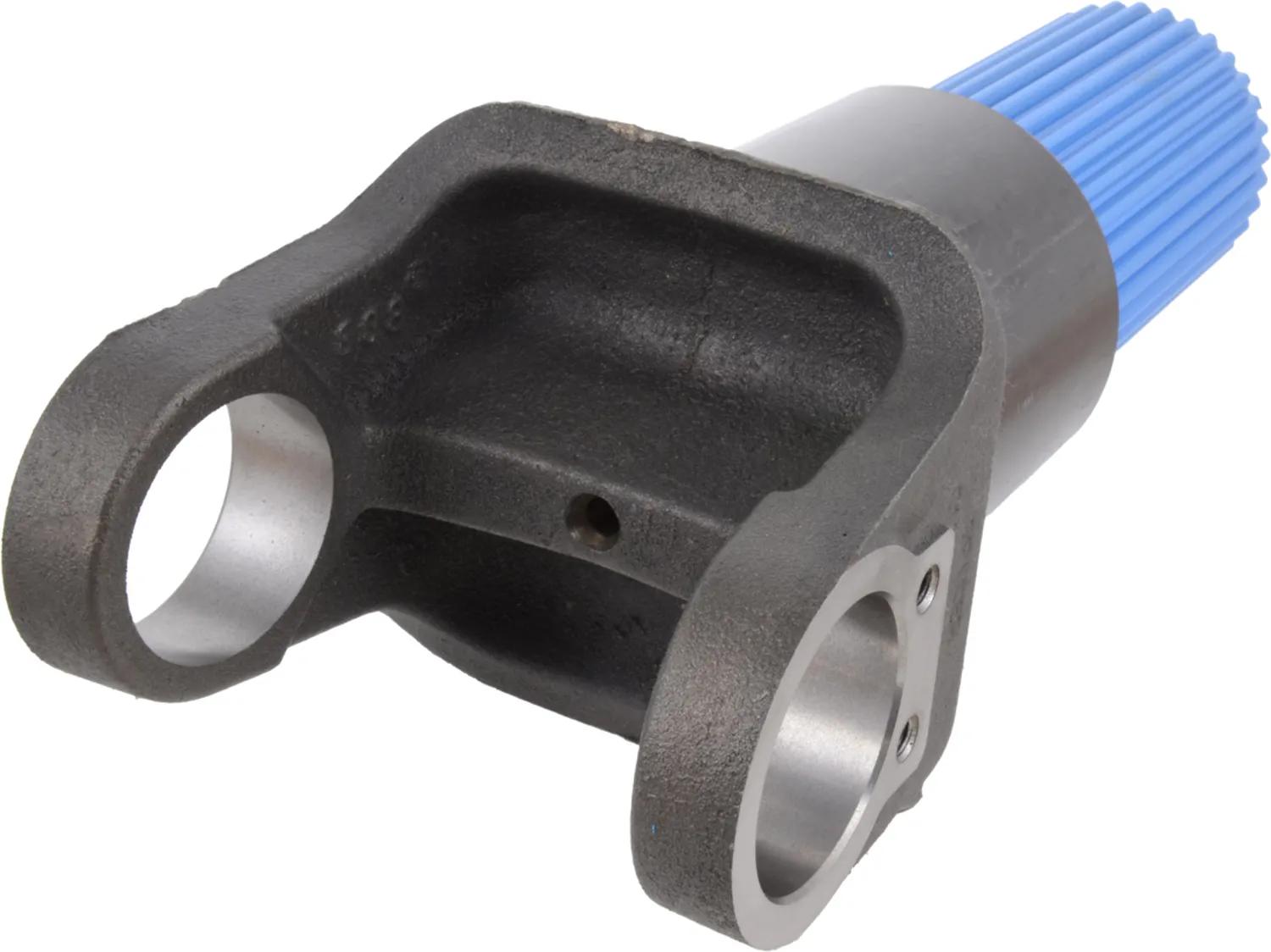

Spicer SPL170 Yoke Shaft with 3.425 in Spline Diameter and 8.232 in Spline Length
#SPI170-82-71X
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft Yoke Shaft, I, 13.850 in Center Line to End of Spline, 10.334 in End/Spline to Point/Rad, SPL170, 34 Spline Count, 3.425 in Spline Dia, 1 in Spline Length
Features & Benefits
- Genuine Spicer quality and reliability
- Designed and tested by Dana for optimal performance
- Compatible with SPL170 series driveshaft components
Specifications
| Series | SPL170 |
| Spline Diameter | 3.425 in |
| Type | I |
| VMRS Code | 024002061 |
| Application | Compatible with SPL170 series driveshaft components |
| Center Line to End of Spline | 13.850 in |
| End/Spline to Point/Rad | 10.334 in |
| Spline Count | 34 |
| Spline Length | 8.232 |
| Product Category | Drive Shaft Yoke Shaft |
| Quantity | 1 |
| Weight | 26.98 lb |
Interchanges & Equivalent parts:
| 170 82 71X |
| 1708271X |
| 1708271X-SP |
| 2104-1708271X |
| E1708271X |
| S-21870 |
| SP 170 82 71X |
| SP 1708271X |
| TWD1708271X |
| 21041708271X |
| 2500662C91 |
| D1708271X |
| DS1708271X |
| SP1708271X |
| SP1708271XHP |
| 170-82-71X |
