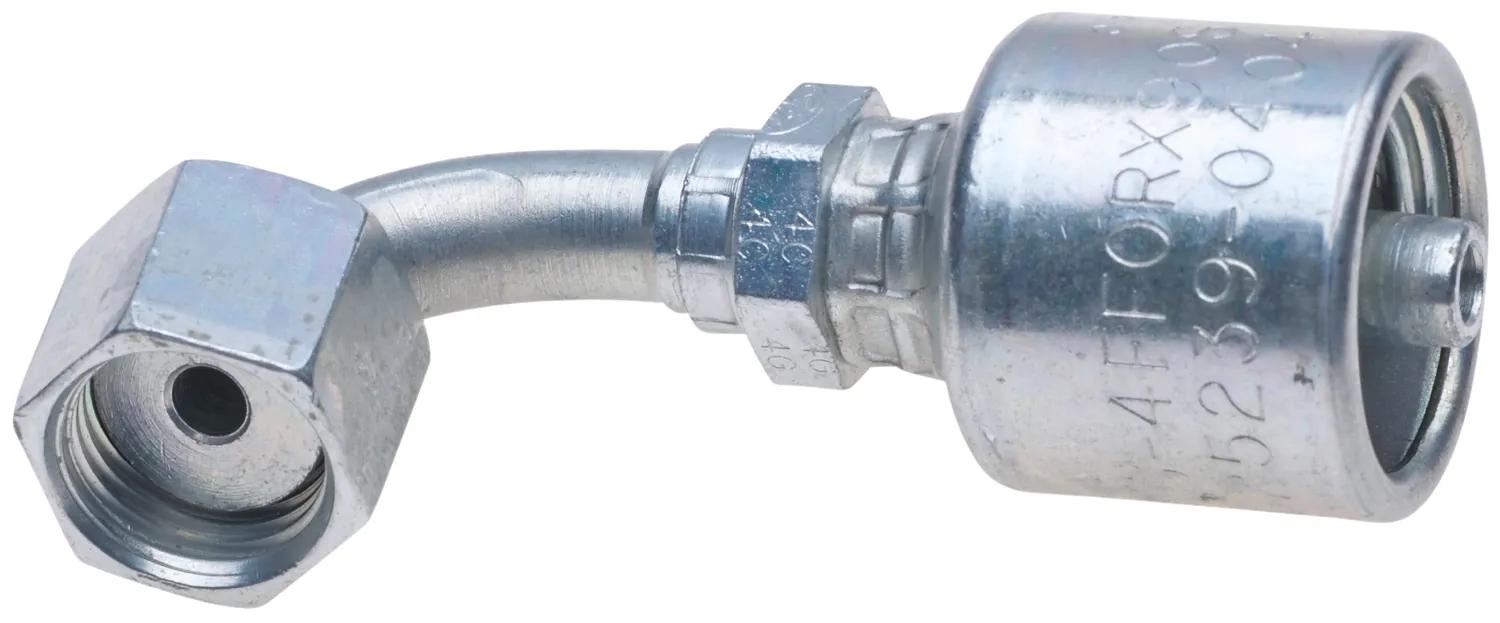

MegaCrimp Female Flat-Face O-Ring Swivel, 90*, 10G-10FFORX90S
#GATG25239-1010
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Description d'accouplement | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Coupure (po) – C | 2-11/64 po |
| Chute (po.) | 1-17/64 po |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 10G-10FFORX90S |
| Diamètre intérieur | 5/8 po (1,6 cm) |
| Longueur | 3-41/64 po |
| Nut Hex (in) – H2 | 1-3/16 po |
| OEM Part # | G25239-1010 |
| O-Ring | Joint torique à face plate |
| Product Number | 710424545 |
| Seal Type | Joint Torique |
| Swivel | Oui |
| Type | Raccord pivotant à joint torique à face plate femelle MegaCrimp - Tube coudé à 90 degrés |
| Weight | 0,5 lbs |
Interchanges & Equivalent parts:
| 147251010 |
| GYH14725-1010 |
| G25239-1010 |
| 710424545 |
