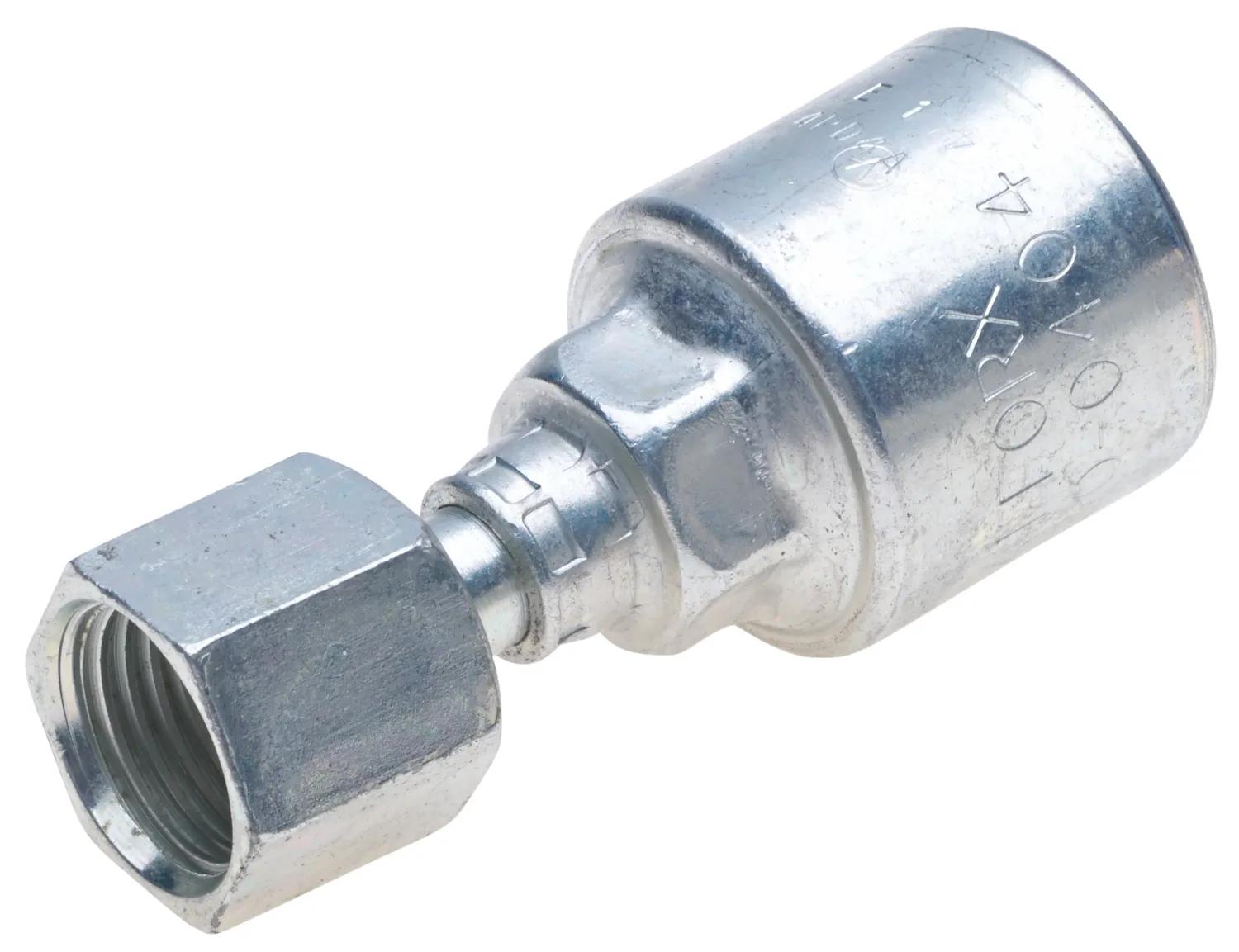

MegaCrimp Coupling 4G-6FFORX
#GATG25230-0406
Sommaire du produit
Gates MegaCrimp couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The key to its performance is the patented, pre-assembled "C" insert attached to the ferrule, which ensures an even distribution of crimping forces to form a concentric, weep-free seal. This design allows one coupling to be used with various hose constructions and wall thicknesses (including one- and two-wire braid and select xpiral hoses), simplifying inventory requirements. MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance standards.
Caractéristiques et avantages
- MegaCrimp couplings set a new standard for hydraulic couplings; the unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- To prevent leaks from over-torquing, Gates® engineered Full-Torque Nut™ technology, available on MegaCrimp™ and GlobalSpiral™ couplings; these nuts are stronger, more durable, and transfer input-torque to clamp-load more consistently than traditional staked nuts.
- Simplifies inventory requirements as one MegaCrimp coupling size can accommodate various 1 and 2-wire braid hydraulic hoses of different constructions and wall thicknesses, and is qualified on all Gates® wire-braid hoses.
- Features a robust 'bite-the-wire' crimp for superior coupling and hose retention, creating a high-performance assembly with a low profile, full-stem insertion, and full-length crimp.
- Environmentally-friendly TuffCoat™ plating provides 345% better corrosion resistance than the SAE standard.
Spécifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female Flat-Face O-Ring Swivel |
| Type de raccords | Female |
| Recommandations pour le tuyau | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Description industrielle | 4G-6FFORX |
| Diamètre intérieur | 1/4 in |
| Matériel | Acier |
| Note | O-Ring Face Seal |
| N° de pièce d'origine | G25230-0406 |
| Joint torique | Flat Face O-Ring |
| Numéro de produit | 710418055 |
| Type de joint d'étanchéité | O-Ring |
| Diamètre intérieur du manchon | 19/32 in |
| Standard | SAE J1453 |
| Pivot | Yes |
| Filetage | 11/16 in-16 |
| Type | MegaCrimp Female Flat-Face O-Ring Swivel |
| CUP | 72053323627 |
| Dimension de la connexion 1 | 0.252 in |
| Dimension de la connexion 2 | 11/16-16 |
| Type de connexion 1 | Female Flat-Face O-Ring Swivel |
| Type de connexion 2 | Hose |
Interchanges et pièces équivalentes:
| 147000406 |
| GYH14700-0406 |
| 1AA6FR4 |
| G25230-0406 |
| 710418055 |
