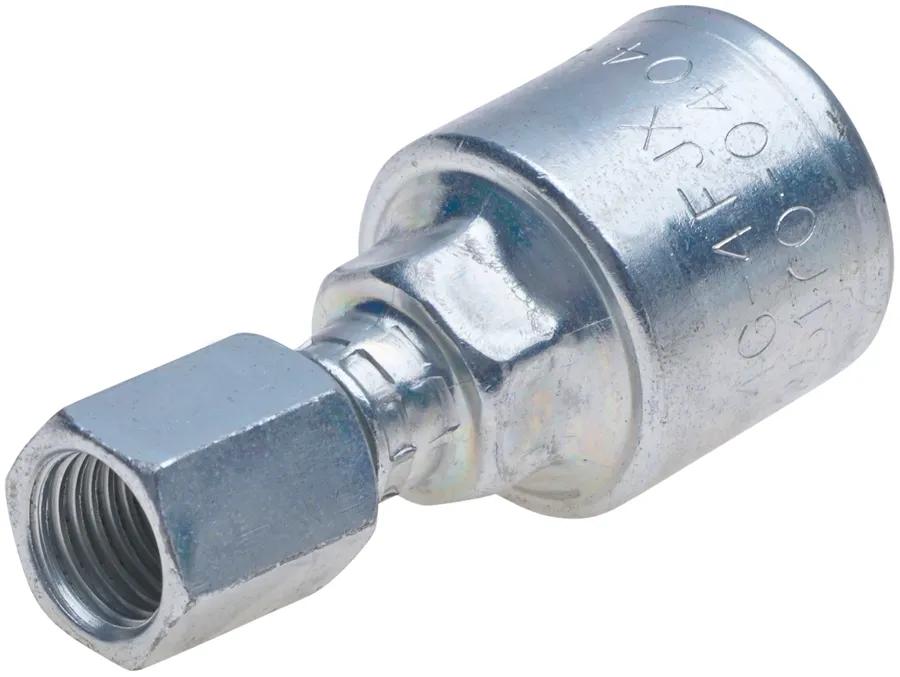

MegaCrimp Female JIC 37 Flare Swivel, 6G-4FJXSP
#GATG25170-0604
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female JIC 37 Flare Swivel |
| Coupure (po) – C | 1-13/64 po (3,05 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 6G-4FJXSP |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 2-19/64 po (5,84 cm) |
| Écrou hexagonal (po) – H2 | 35/64 po (1,4 cm) |
| N° de pièce d'origine | G25170-0604 |
| Numéro de produit | 710310125 |
| Type de joint d'étanchéité | Mated Angle |
| Siège | Standard |
| Angle d'assise (degré) | 37 deg |
| Diamètre intérieur du manchon | 43/64 po (1,7 cm) |
| Tige hexagonale (po) | 43/64 po (1,7 cm) |
| Pivot | Oui |
| Filetage | 7/16 po-20 |
| Type | Raccord pivotant évasé JIC 37 femelle MegaCrimp |
Interchanges & Equivalent parts:
| 14400-0604 |
| 144000604 |
| GYH14400-0604 |
| 06U604 |
| G251700604 |
| SC63864 |
| 1AA4FJ6 |
| G25170-0604 |
| 710310125 |
