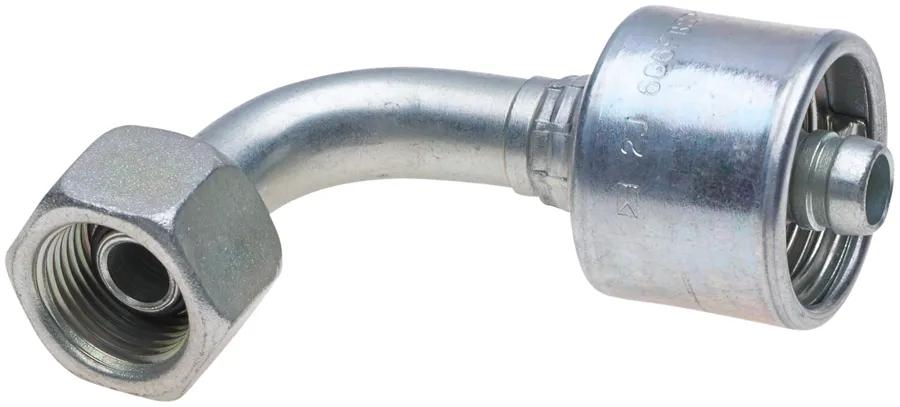

MegaCrimp Female Pipe O-Ring Swivel, 90*, 6G-6FBSPORX90
#GATG25832-0606
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- Includes O-Ring Sealing in Flare.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Cut Off (in) – C | 1-11/32 in (3.4 cm) |
| Drop (in.) | 1-17/64 in (3.23 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 6G-6FBSPORX90 |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 2-7/16 in (6.2 cm) |
| Note | Includes O-Ring sealing in flare. |
| Nut Hex (in) – H2 | 55/64 in (2.18 cm) |
| OEM Part # | G25832-0606 |
| O-Ring | On Female w/ Inverted Nose Seat |
| Product Number | 710096335 |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 30 deg |
| Swivel | Yes |
| Termination | British |
| Type | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 141200606 |
| 32120-0606 |
| 321200606 |
| GYHB2-BPFX90-0606 |
| GYH32120-0606 |
| GYH14120-0606 |
| B2BPFX900606 |
| B2-BPFX90-0606 |
| 1A6BFB6 |
| G25832-0606 |
| 710096335 |
