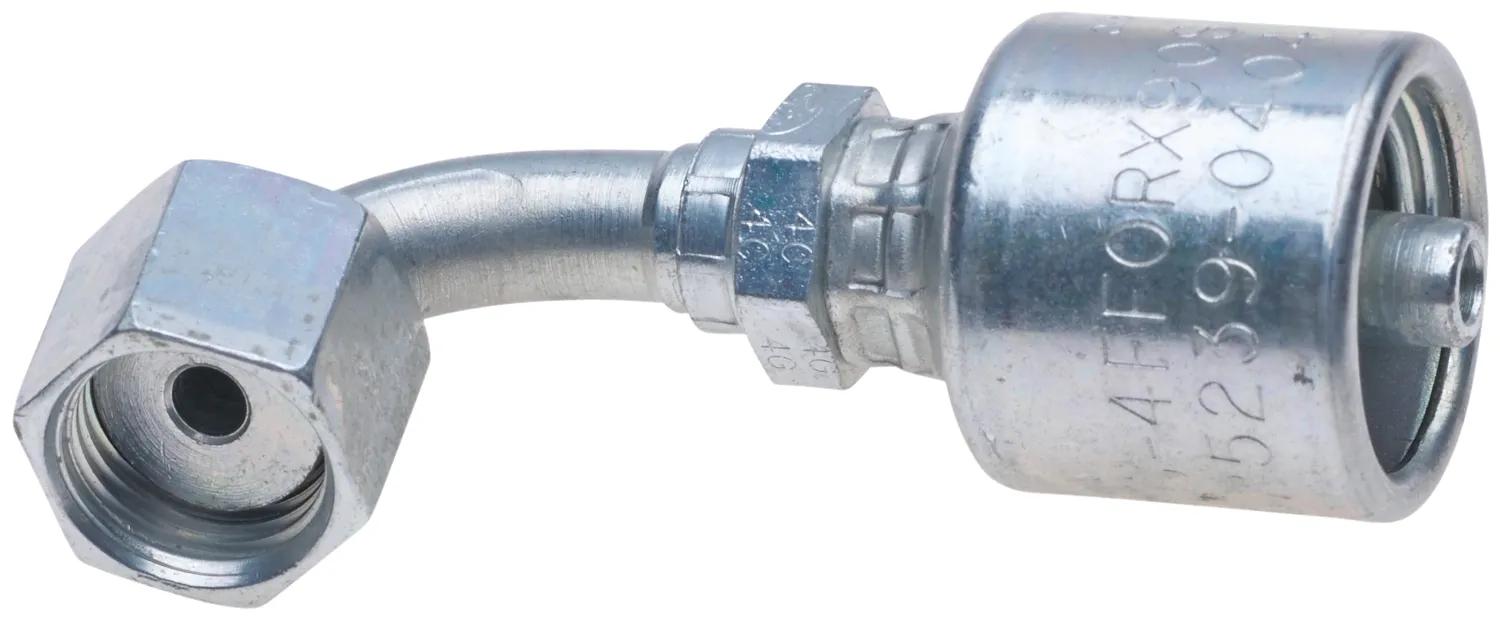

MegaCrimp Coupling 6G-8FFORX90S
#GATG25239-0608
Sommaire du produit
Gates MegaCrimp couplings are designed for use with Gates wire braid hydraulic hoses to create a robust, leak-free assembly. At the core of its performance is the patented, pre-assembled 'C' insert attached to the ferrule. This insert ensures an even distribution of crimping forces to form a concentric seal and allows a single coupling size to be used with various one- and two-wire braid hoses (and select xpiral hoses) of different constructions and wall thicknesses, simplifying inventory. MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance standards.
Caractéristiques et avantages
- Features Full-Torque Nut™ technology, engineered by Gates® to prevent cracked coupling nuts from over-torquing; this design is stronger, more durable, and transfers input-torque to clamp-load more consistently than traditional staked nuts, minimizing leaks.
- Features a robust 'bite-the-wire' crimp with a low profile, full-stem insertion, and full-length crimp for superior coupling and hose retention, creating a high-performance, risk-free hydraulic hose assembly.
- Sets a new standard for hydraulic couplings with a unique 'C' insert that ensures a 'weep-free' concentric crimp, keeping equipment and the environment clean.
- Simplifies inventory requirements by allowing one coupling size to accommodate various one and two-wire braid hydraulic hoses of different constructions and wall thicknesses, qualified for all Gates® wire-braid hoses.
Spécifications
| Angle | 90 deg |
| Description d'accouplement | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Coupure (po) – C | 1-25/32 in |
| Type de raccords | Female |
| Recommandations pour le tuyau | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Description industrielle | 6G-8FFORX90S |
| Diamètre intérieur | 3/8 in |
| Matériel | Acier |
| Écrou hexagonal (po) – H2 | 15/16 in |
| N° de pièce d'origine | G25239-0608 |
| Joint torique | Flat Face O-Ring |
| Numéro de produit | 710424295 |
| Type de joint d'étanchéité | O-Ring |
| Pivot | Yes |
| Filetage | 13/16 in - 16 |
| Type | 90 deg |
| CUP | 5414465857225 |
| Dimension de la connexion 1 | 0.374 in |
| Dimension de la connexion 2 | 13/16-16 UN |
| Type de connexion 1 | Female Flat-Face O-Ring Swivel |
| Type de connexion 2 | Tube |
Interchanges et pièces équivalentes:
| 14725-0608 |
| 147250608 |
| GYH14725-0608 |
| G25239-0608 |
| 710424295 |
