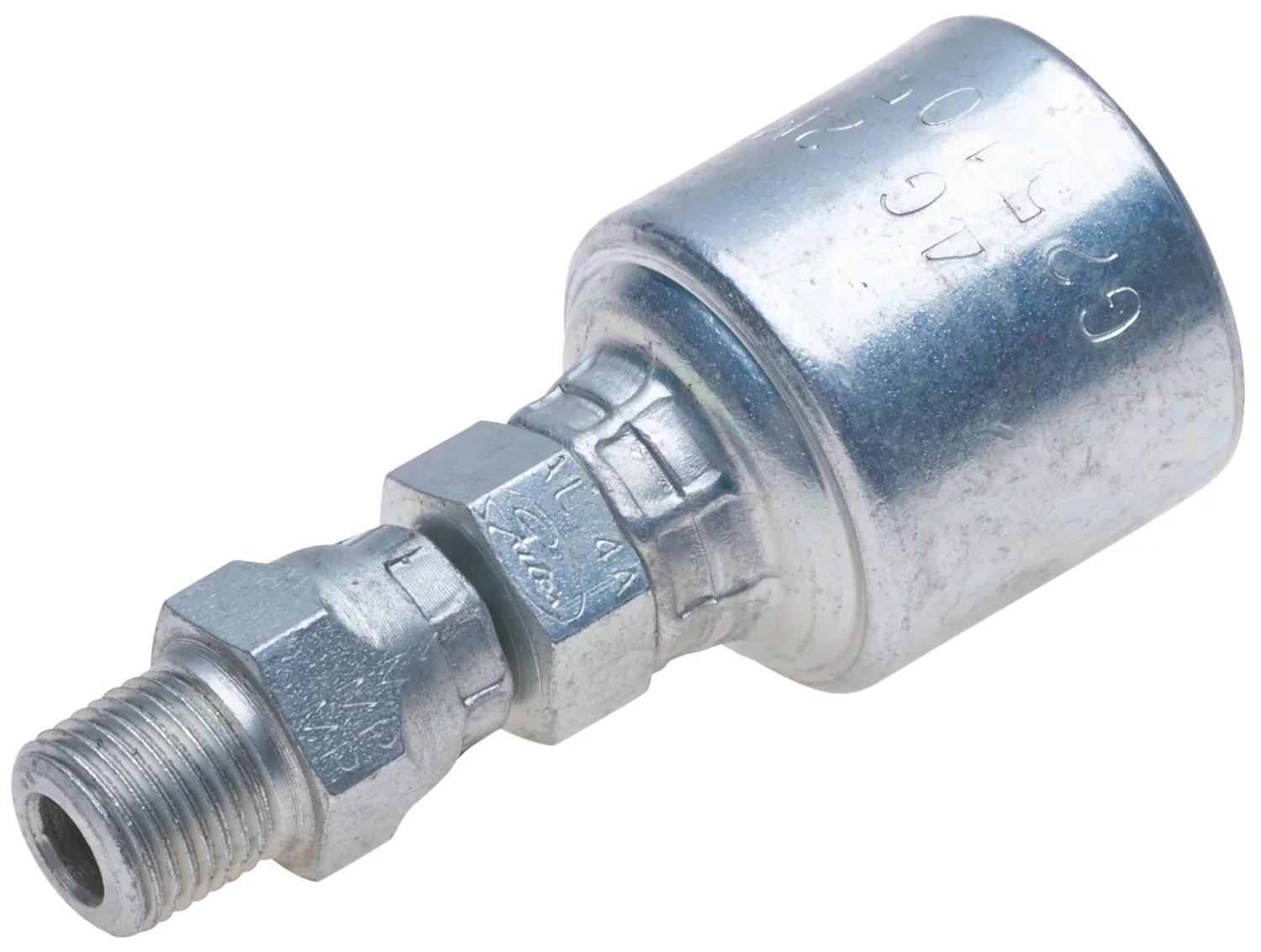

MegaCrimp Male Pipe Swivel (NPTF), 6G-8MPX
#GATG25105-0608
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Not to be Used as a Live Swivel.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Male Pipe Swivel (NPTF - w/o 30 Cone Seat) |
| Cut Off (in) – C | 1-61/64 in (4.95 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 6G-8MPX |
| Inside Diameter | 3/8 po (0,97 cm) |
| Length | 3-3/64 po (7,75 cm) |
| Note | NOT TO BE USED AS A LIVE SWIVEL. |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 1 in (2.54 cm) |
| OEM Part # | G25105-0608 |
| Product Number | 710010305 |
| Seal Type | Thread Interference |
| Stem Hex (in.) | 3/4 in (1.91 cm) |
| Swivel | Yes |
| Type | Raccord pivotant mâle MegaCrimp pour tuyau (NPTF - sans siège conique à 30 degrés) |
Interchanges & Equivalent parts:
| 14645-0608 |
| 146450608 |
| 20242083 |
| GYH20242083 |
| GYH14645-0608 |
| 06UJ08 |
| G251050608 |
| SC625SW6D |
| 1AA8PS6 |
| FJ9126-0806S |
| G25105-0608 |
| 710010305 |
