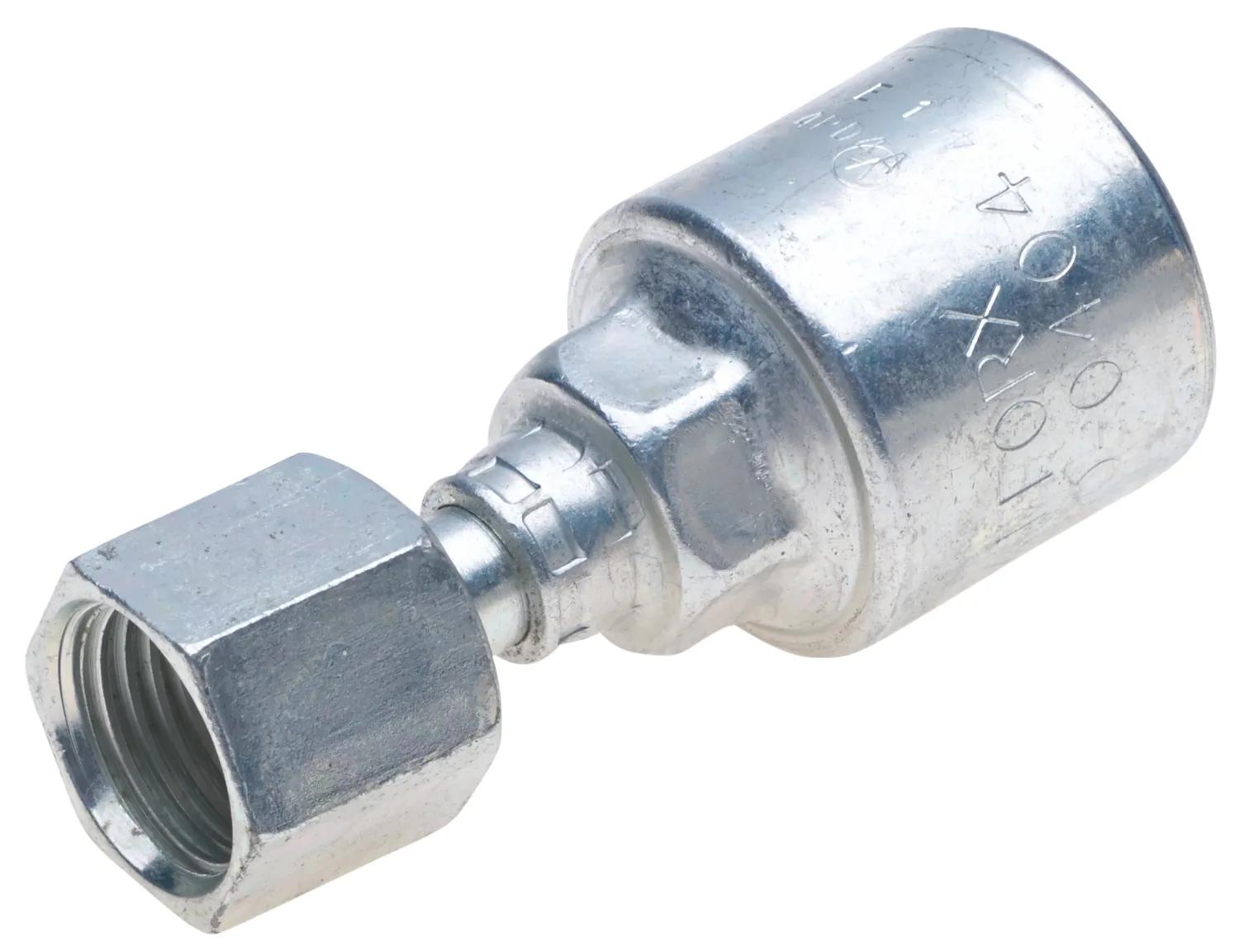

MegaCrimp Coupling 8G-10FFORX
#GATG25230-0810
Sommaire du produit
Gates MegaCrimp couplings are designed for use with Gates wire braid, and select spiral, hydraulic hoses to create a robust, leak-free assembly. The performance comes from the patented "C" insert, which ensures an even distribution of crimping forces to form a concentric seal. This design allows a single coupling size to accommodate various hose constructions and wall thicknesses, simplifying inventory requirements. MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.
Caractéristiques et avantages
- MegaCrimp couplings set a new standard for hydraulic couplings, with a unique "C" insert that ensures weep-free concentric crimping to keep equipment and the environment clean.
- Engineered with Gates® Full-Torque Nut™ technology to solve a common cause of leaks: cracked nuts from over-torquing. These couplings are stronger and more durable than traditional staked nuts and transfer input-torque to clamp-load more consistently to minimize leaks.
- Simplifies inventory by allowing one MegaCrimp coupling size to accommodate various 1 and 2 wire braid hydraulic hoses of different constructions and wall thicknesses, qualified on all Gates® wire-braid hoses.
- Features a robust 'bite-the-wire' design with full-stem insertion and a full-length crimp for superior hose retention, creating a high-performance, risk-free hydraulic assembly.
Spécifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female Flat-Face O-Ring Swivel |
| Coupure (po) – C | 1-3/8 in |
| Type de raccords | Female |
| Recommandations pour le tuyau | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Description industrielle | 8G-10FFORX |
| Diamètre intérieur | 1/2 in |
| Matériel | Acier |
| Note | SAE J1453 O-Ring Face Seal. |
| Écrou hexagonal (po) – H2 | 1-3/16 in |
| N° de pièce d'origine | G25230-0810 |
| Joint torique | Flat Face O-Ring |
| Numéro de produit | 710418165 |
| Type de joint d'étanchéité | O-Ring |
| Diamètre intérieur du manchon | 55/64 in |
| Standard | SAE J1453 |
| Pivot | Yes |
| Type | MegaCrimp Female Flat-Face O-Ring Swivel |
| CUP | 72053323580 |
| Dimension de la connexion 1 | 0.5 in |
| Dimension de la connexion 2 | 1-14 |
| Type de connexion 1 | Female Flat-Face O-Ring Swivel |
| Type de connexion 2 | Hose |
Interchanges et pièces équivalentes:
| 147000810 |
| GYH14700-0810 |
| 1AA10FR8 |
| G25230-0810 |
| 710418165 |
