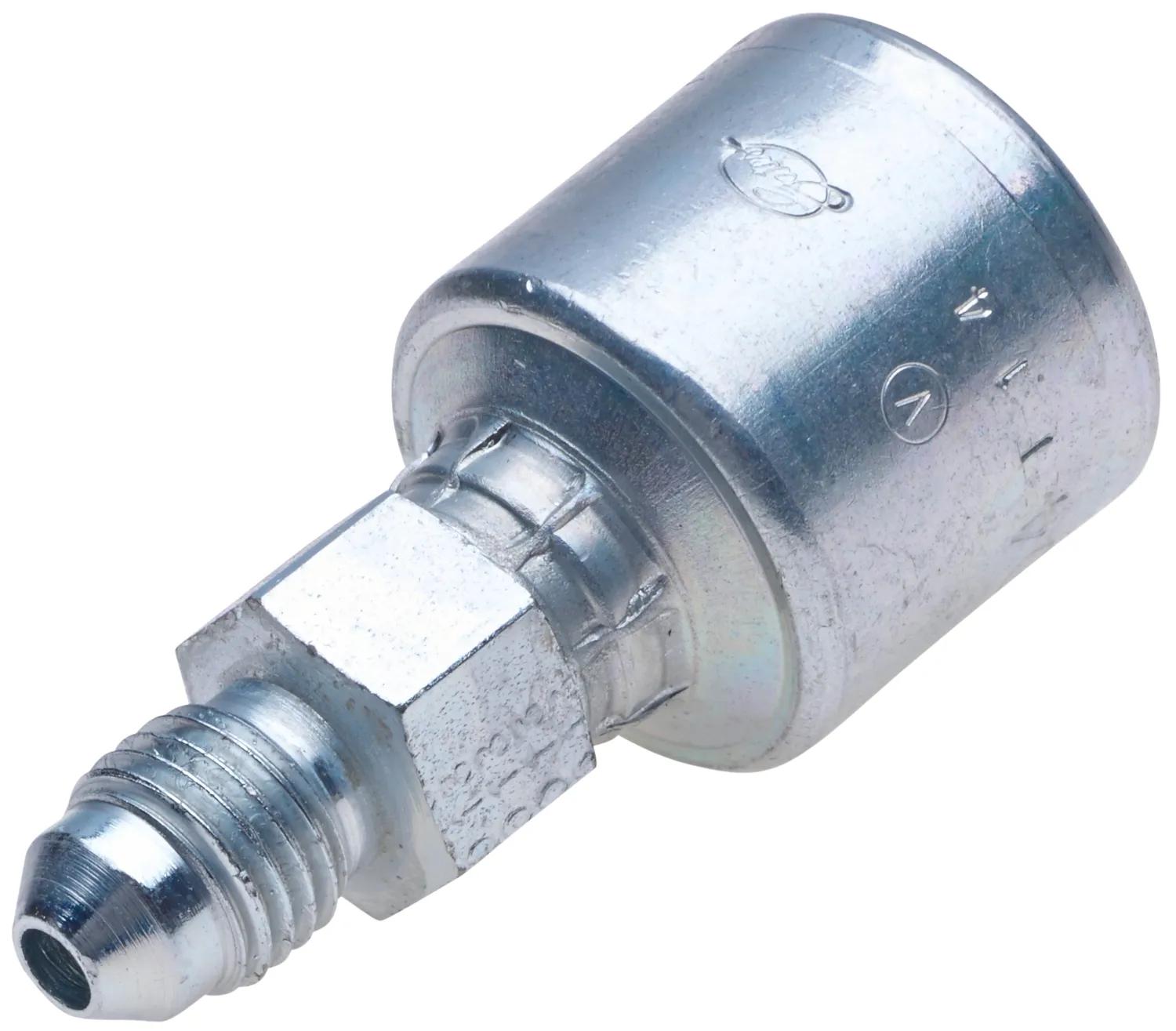

MegaCrimp Male JIC 37 Flare, 8G-12MJ
#GATG25165-0812
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Cut Off (in) – C | 1-45/64 in (4.32 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 8G-12MJ |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-3/16 in (8.1 cm) |
| OEM Part # | G25165-0812 |
| Product Number | 710336235 |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Sleeve Inside Diameter | 1-1/16 in (2.69 cm) |
| Stem Hex (in.) | 1-1/16 in (2.69 cm) |
| Swivel | No |
| Thread | 1-1/16 in-12 |
| Type | MegaCrimp Male JIC 37 Flare |
Interchanges & Equivalent parts:
| 10343128 |
| 144500812 |
| GYH14450-0812 |
| G251650812 |
| 1AA12MJ8 |
| FJ9125-1208S |
| G25165-0812 |
| 710336235 |
