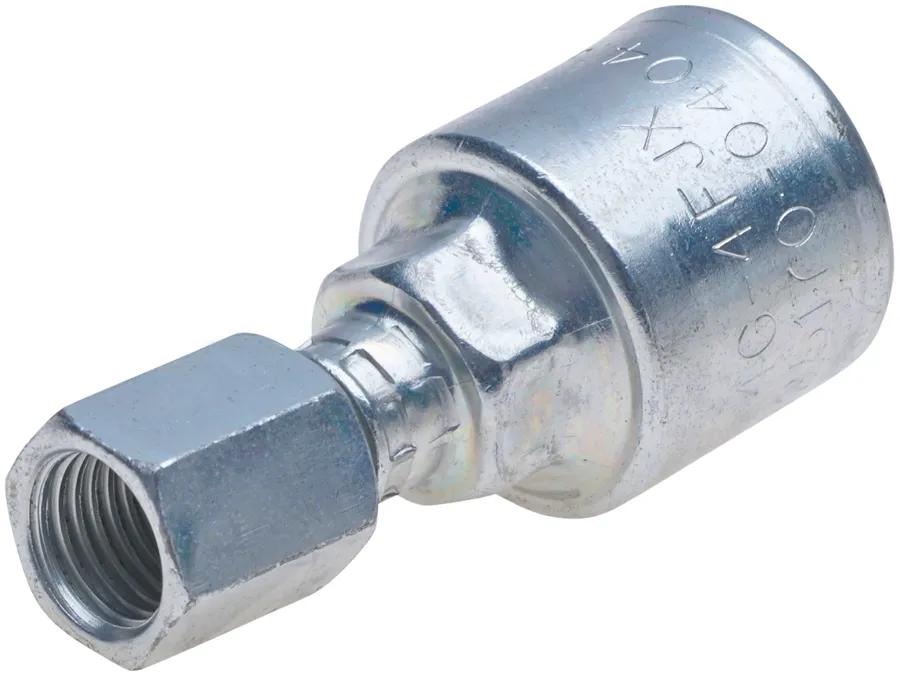

MegaCrimp Female JIC 37 Flare Swivel Coupling, Steel, 7/16-20 x 1/4 in, 4G-4FJX
#GATG25170-0404
Product Overview
Gates MegaCrimp Couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling features a patented "C" insert attached to the ferrule, allowing usage with different hose constructions and wall thicknesses. This insert ensures an even distribution of crimping forces to form a concentric, weep-free seal, simplifying inventory requirements. MegaCrimp couplings are fully qualified EN-performance couplings, providing a reliable and environmentally friendly solution.MegaCrimp Coupling, Steel, 7/16-20 Connection Size 1, 1/4 in Connection Size 2, Female JIC 37 deg Flare Swivel Connection Type 1, Hose Connection Type 2, 2.2 in Length
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Longueur | 2-13/64 po |
| Matériel | Acier |
| N° de pièce d'origine | G25170-0404 |
| Type | MegaCrimp pivotant évasé JIC 37 femelle |
| Dimension de la connexion 1 | 7/16-20 |
| Connection Size 2 | 1/4 in |
| Connection Type 1 | Female JIC 37 deg Flare Swivel |
| Connection Type 2 | Hose |
| Product Category | Raccord MegaCrimp |
| Weight | 0.14 lb (0.06 kg) |
Interchanges & Equivalent parts:
| 1064344 |
| 144000404 |
| 32400-0404 |
| 324000404 |
| B2JCFX0404 |
| GYHB2-JCFX-0404 |
| GYH32400-0404 |
| GYH14400-0404 |
| B2-JCFX-0404 |
| 04U604 |
| G251700404 |
| SC63844 |
| 1AA4FJ4 |
| 1GA4FJ4 |
| G25170-0404 |
| 710308045 |
