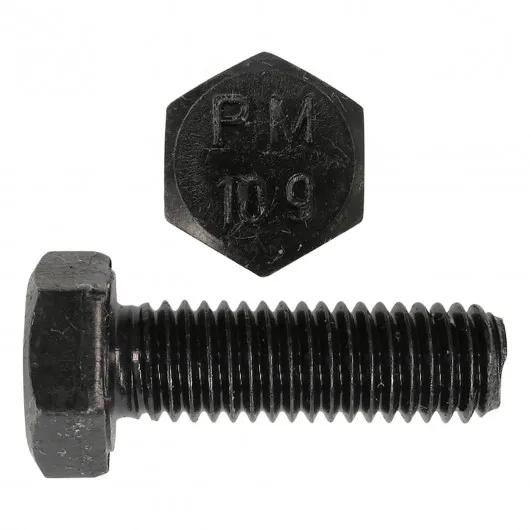

Metric Hx Hd Cap Sc 10.9 Plain-Din 933 Size M20 X 60
#PAP612-524
Sommaire du produit
Metric Hex Head Bolts are used to secure an object within or against another object. Bare Metal Fasteners have no corrosion resistant qualities and are a good choice for indoor and industrial applications. Property Class: 10.9. Tensile strength 1040 MPa or about 150,000 p.s.i., similar to SAE Grade 8. Head marking 10.9. Made from alloy steel, quenched and tempered. Used in construction, Machinery, automotive repair and other projects by contractors, designers, OEMs, and maintenance staff for critical joints and high stress applications.
Caractéristiques et avantages
- Tested to 150,000 psi.
- Made to ISO Metric Specs.
Spécifications
| Finition | Métal nu |
| Filetage complet ou partiel | Full Thread |
| Niveau | 10.9 |
| Longueur | 2-23/64 po (5,99 cm) |
| Matériel | Acier à haute teneur en carbone |
| Nbre de filetages par pouce | 2.5 |
| Plage de longueur | 2 à 2,99 po |
| Taille du filetage | M20 |
| Type | Boulons à tête hexagonale - Métrique |
Interchanges et pièces équivalentes:
| 612-524 |
