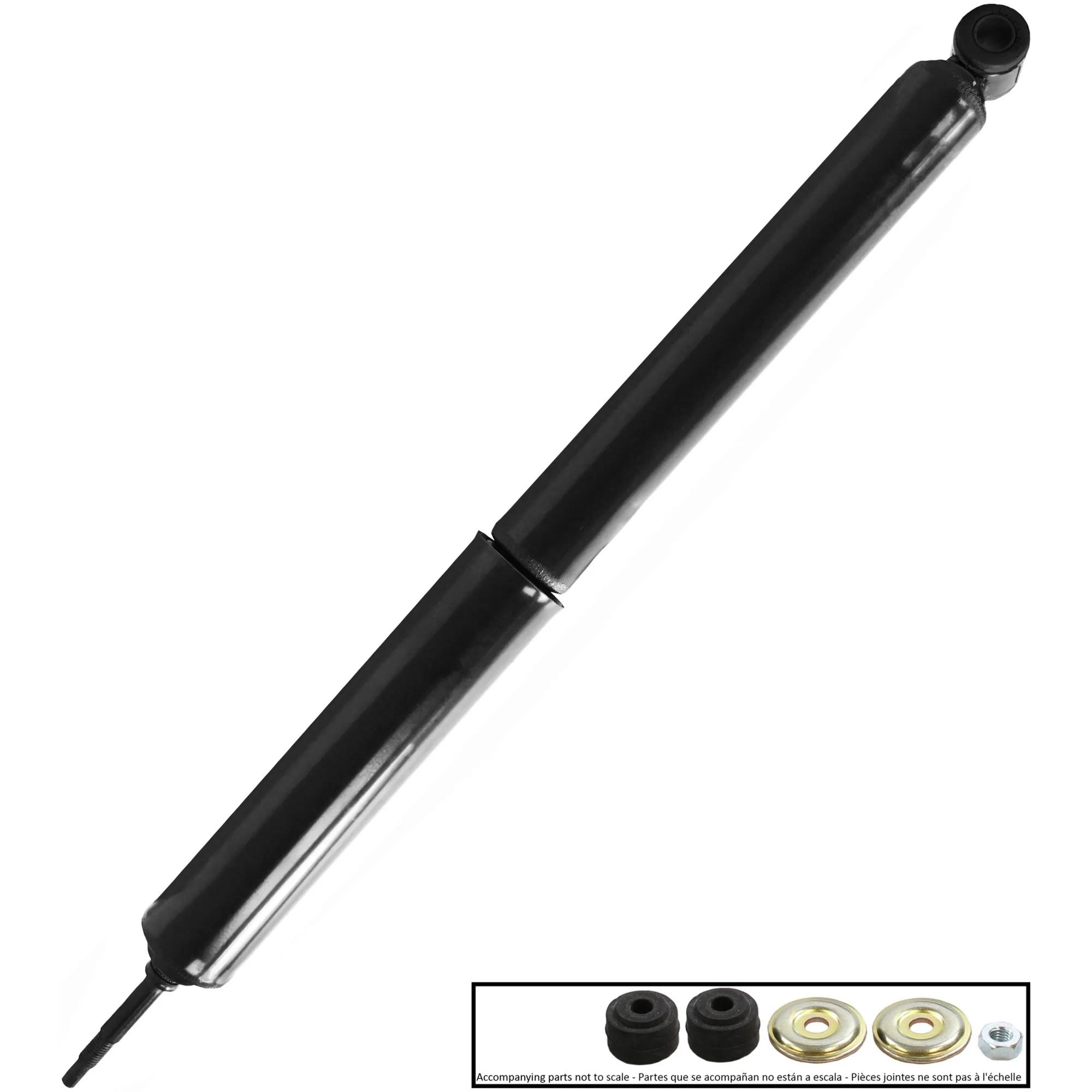

Monroe Gas Charged Shock Absorber, Comp 13-1/2 in, Ext 22-7/8 in, Stroke 9-3/8 in, 1-3/8 in Bore
#MON66601
Product Overview
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Features & Benefits
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Application | 1995-2004 Isuzu FRR (Front) (Qualifier: Replaces OE Part Number(s) 1516302191, Shock Absorbers are 1.38 (in) Bore Diameter); 1988 Isuzu NRR (Front) (Qualifier: Replaces OE Part Number(s) 1516302191, 1988 Models With Build Date Before 05/31/1988, Shock Absorbers are 1.38 (in) Bore Diameter); 1988-1989 Isuzu NPR (Front) (Qualifier: Replaces OE Part Number(s) 1516302191, Shock Absorbers are 1.38 (in) Bore Diameter / Note: From 6/88); 1990-2003 Chevrolet W5500 Tiltmaster (Front) (Qualifier: Replaces OE Part Number(s) 1516302191, Shock Absorbers are 1.38 (in) Bore Diameter); 1988 GMC W5500 Forward (Front) (Qualifier: Replaces OE Part Number(s) 1516302191, Shock Absorbers are 1.38 (in) Bore Diameter); 1991 International 400 (Front) (Qualifier: Replaces OE Part Number(s) 56101Z5008, Shock Absorbers are 1.38 (in) Bore Diameter) |
| Body Diameter | 1-3/8 in |
| Compressed Length | 13-1/2 in |
| Extended Length | 22-7/8 in |
| Lower Mount | LS82 |
| Parts Pack | MONP01134 |
| Stroke Inch | 9-3/8 in |
| Upper Mount | S4 |
| Shock Type | Gas Charged |
| Manufacturer Part Number | 66601 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 660160 |
| 66601 |
| M66601 |
| 1516302190 |
| 1516302191 |
| 34601 |
| 56101Z5008 |
| 660160MT |
| 661160 |
| 8940575930 |
| 94057593 |
| AMS660160 |
