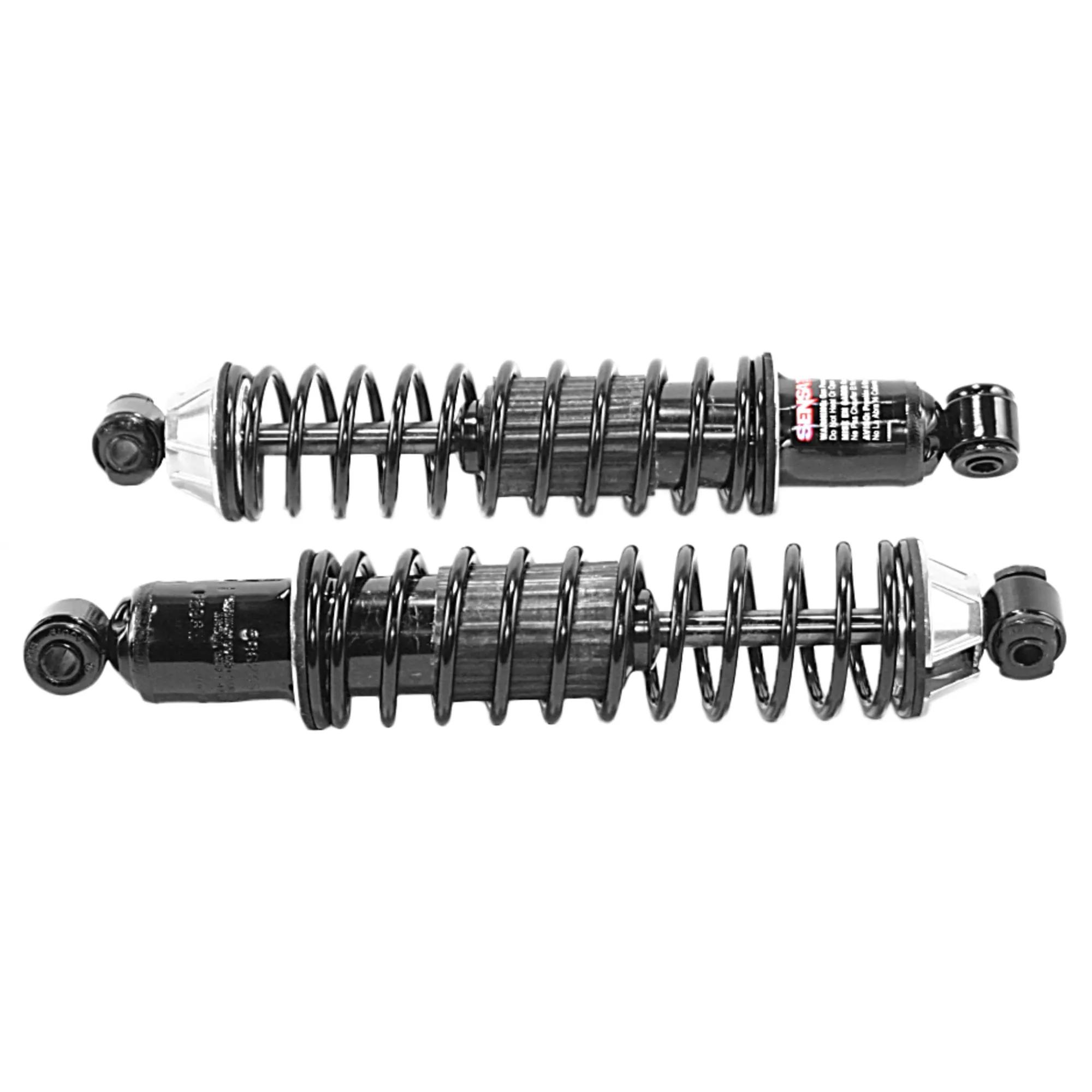

Monroe Nitrogen Gas Charged Load Adjusting Shock Absorber, Comp: 10-5/8 in, Ext: 15-3/4 in, Stroke: 5-1/8 in
#MON58624
Product Overview
Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to changing road and weight conditions to provide extra control when operating conditions get more demanding. Up To 1,200lbs Of Additional Weight Is Loaded (Capacity Is Limited By Vehicle Suspension, Tires & Transmission. See Vehicle Owner's Manual For Details). These Units Are Ideal For Light Trucks That Carry Varying Loads Or Tow Trailers.
Features & Benefits
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston & Pressure Tube Which Delivers Better Control & Increased Durability
- Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance w/o An Increase In Ride Harshness
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency & Ride
- Ride, Handling, & Safety Characteristics Of The Vehicle. These Units Also Include A Heavy Gauge Calibrated Spring For Extra Control & Comfort. A New Pair Of Monroe OESpectrum Load Adjusting Shock Absorbers Can Assist In Maintaining Ride Height When
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- All Weather Fluid: Contains Special Modifiers To Reduce Friction & Ensure Smooth Rod Reaction
- Special Seal: 'self-Lubricating' Fluid Seal Designed To Retain Gas w/o Excessive Wear Or Friction
- 5/8 in Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life. On Non-Dust Shield Units Only - On Most Applications
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
Specifications
| Compressed Length | 10-5/8 in |
| Extended Length | 15-3/4 in |
| Lower Mount | LS26 |
| Stroke Inch | 5-1/8 in |
| Type | Shock Absorber |
| Upper Mount | LS27 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 5.125 in |
| Manufacturer Part Number | 58624 |
| Product Category | Suspension Shock Absorber and Coil Spring Assembly |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 58624 |
