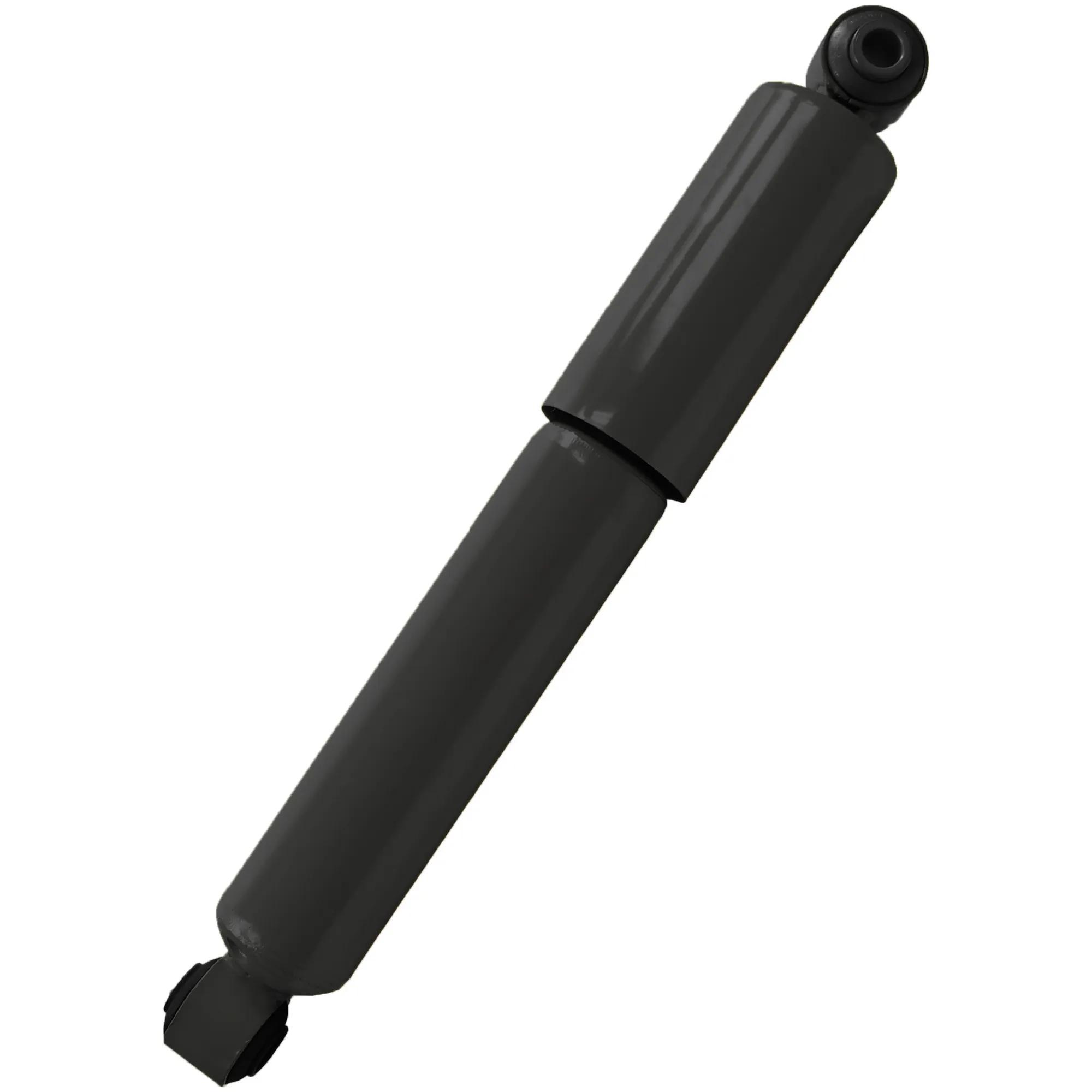

Monroe GAS-MAGNUM 65 Gas Charged Heavy-Duty Shock Absorber, 1.75 in Bore, 23.61 in Ext, 14.63 in Comp
#MON65179
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Application | 2010-2016 International ProStar (Front) (Qualifier: Replaces OE Part Number(s) 3810581C3, 3806341C4, with 113 (in) Sleeper Cab, Shock Absorbers are 1.75 (in) Bore Diameter); 2013-2020 International LoneStar (Front) (Qualifier: Replaces OE Part Number(s) 3810581C3, 3810581C4, Shock Absorbers are 1.75 (in) Bore Diameter) |
| Compressed Length | 14.63 in |
| Extended Length | 23.61 in |
| Lower Mount | Loop (Eyelet) Bushing and Sleeve |
| Type | Shock Absorber |
| Upper Mount | Loop Bushing and Sleeve Mount - 5/8 in Sleeve ID X 2 in Sleeve OAL |
| Finish | Painted |
| Shock Type | Gas Charged |
| Travel Length | 8.97 in |
| Manufacturer Part Number | 65179 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 05-464 |
| 3806341C4 |
| 3810581C4 |
