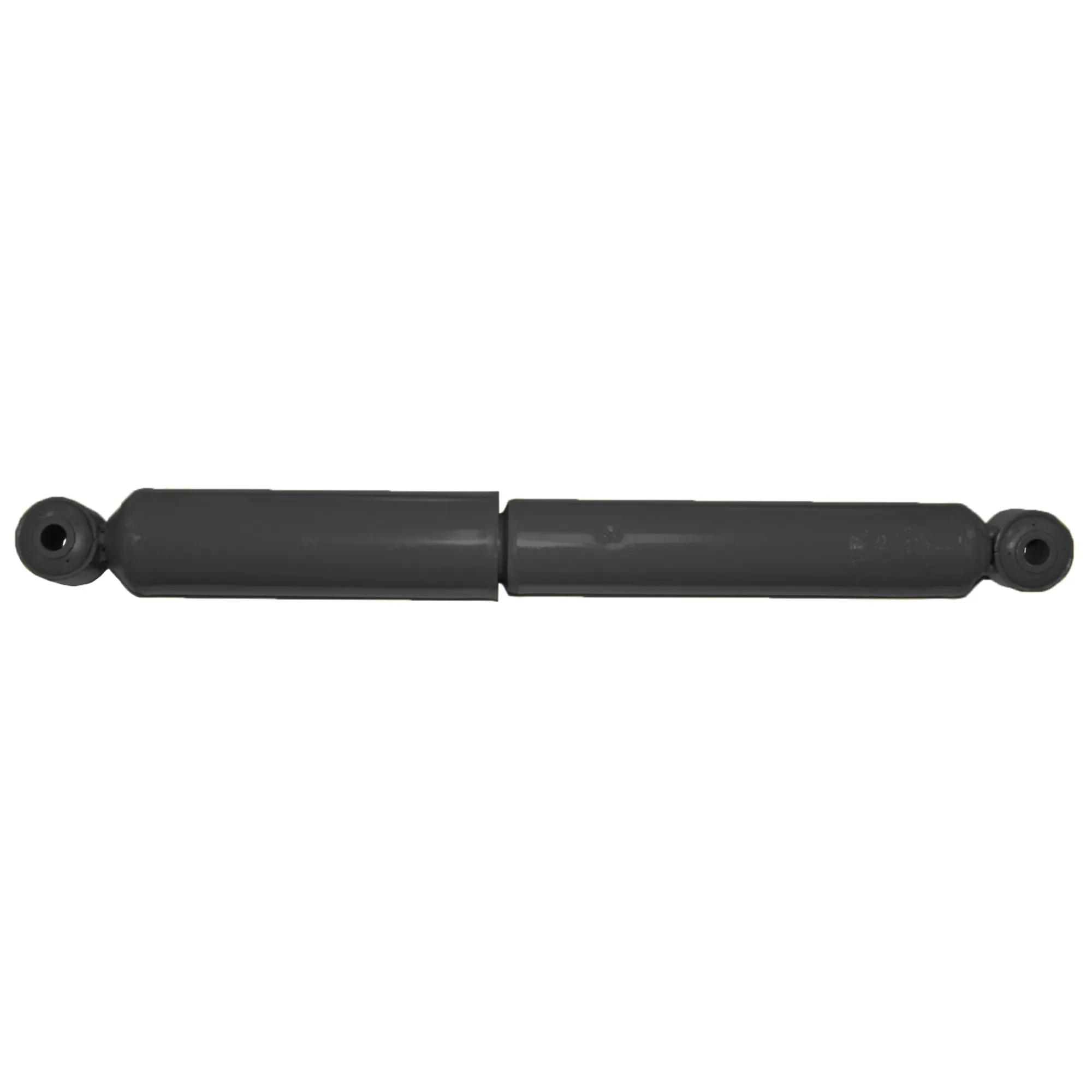

Monroe Magnum Gas Charged Shock Absorber, Comp: 16-17/64 in, Ext: 26-23/32 in, Stroke: 10-29/64 in
#MON66423
Product Overview
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Features & Benefits
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 2 in or 2-3/8 in |
| Compressed Length | 16-17/64 in |
| Extended Length | 26-23/32 in |
| Lower Mount | L4 |
| Stroke Inch | 10-29/64 in |
| Type | Shock Absorber |
| Upper Mount | L4 |
| Finish | Painted |
| Shock Type | Gas Charged |
| Travel Length | 10.4531 in |
| Manufacturer Part Number | 66423 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66423 |
| M66423 |
| 650102 |
| 650102MT |
| AMS650102 |
| B711002 |
| F4HT18080BA |
| F5HZ18125B |
| F6HT18080JA |
| K37411 |
| K37416 |
| K37426 |
| K37427 |
