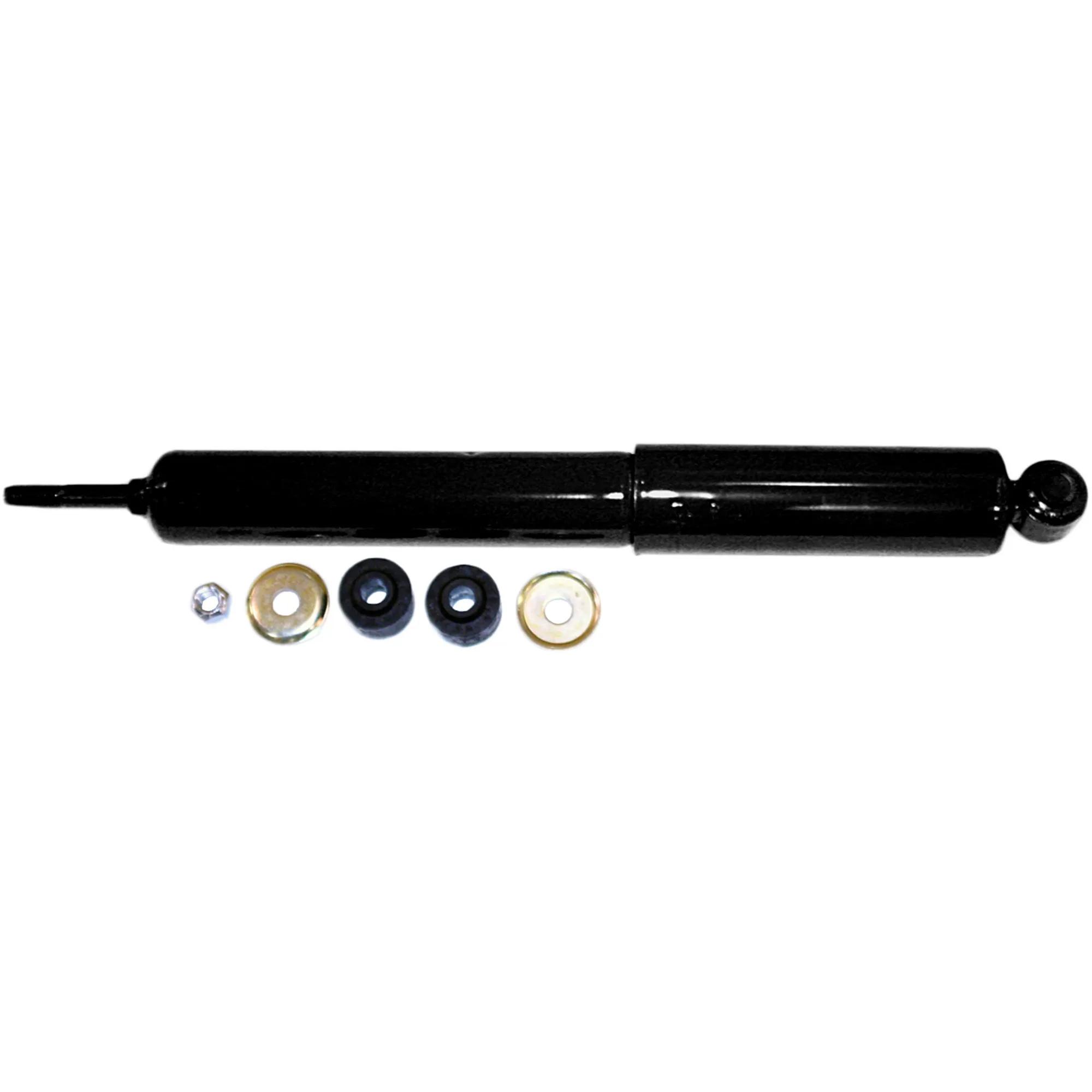

Monroe Magnum Heavy Duty Gas Charged Shock Absorber, 2-3/8 in Body, Comp: 14 in, Ext: 22-7/8 in, Stroke: 8-7/8 in
#MON65105
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Specifications
| Application | 1988-1995 White/GMC WCA (Front) (Qualifier: Replaces OE Part Number(s) 373010021, without Dual Shocks, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter); 1988-1995 White/GMC WIA (Front) (Qualifier: Replaces OE Part Number(s) 373010021, without Dual Shocks, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter); 1996-2001 Volvo WG (Front) (Qualifier: Replaces OE Part Number(s) 8065787, Shock Absorbers are 1.75 (in) Bore Diameter); 1996-1997 Volvo WH (Front) (Qualifier: Replaces OE Part Number(s) 373010021, without Dual Shocks, Shock Absorbers are 1.75 (in) Bore Diameter); 2001-2024 Volvo VHD (Front) (Qualifier: Replaces OE Part Number(s) 20414440, 20353932, 20434880, with 12,000 (lb) to 22,000 (lb) Front Axle, Shock Absorbers are 1.75 (in) Bore Diameter); 2006-2010 Volvo VT (Front) (Qualifier: Replaces OE Part Number(s) 373010021, without Dual Shocks, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter) |
| Body Diameter | 2-3/8 in |
| Compressed Length | 14 in |
| Extended Length | 22-7/8 in |
| Lower Mount | S6 |
| Parts Pack | MONP01482 |
| Stroke Inch | 8-7/8 in |
| Upper Mount | LS53 |
| Finish | Painted |
| Shock Type | Gas Charged |
| Travel Length | 8.875 in |
| Manufacturer Part Number | 65105 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65105 |
| M65105 |
| 3919935 |
| 57365105 |
| 650105 |
| 650105MT |
| 651105 |
| 8065787 |
| 8075787 |
| 85081 |
| 881579 |
| AMS650105 |
