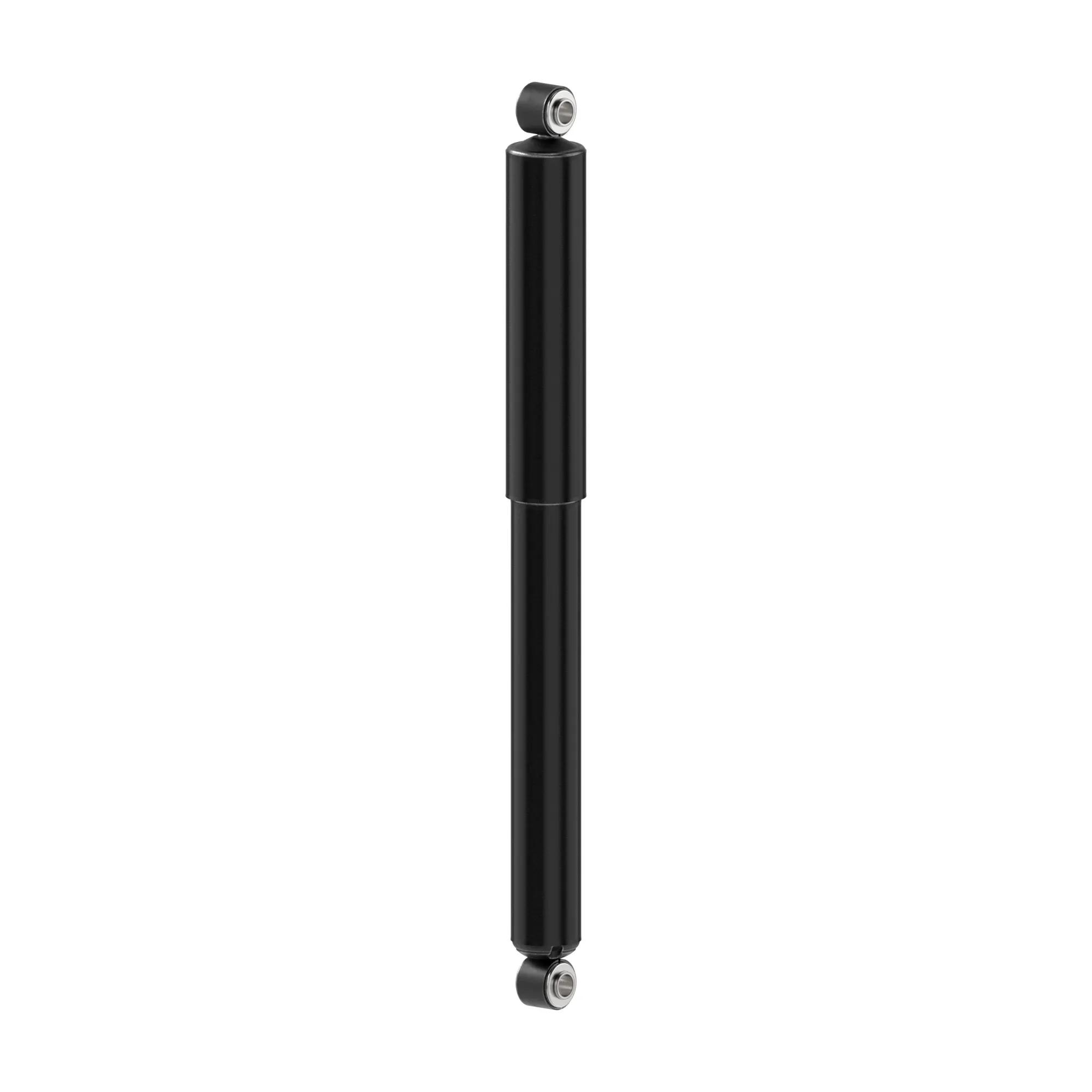

Monroe Magnum Nitrogen Gas Charged Shock Absorber, LS54 Mounts, 18-1/8 in Compressed, 29-1/2 in Extended, 11-3/8 in Stroke
#MON65484
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides fast response essential for today’s heavy-duty truck suspension systems, helping maintain tire-to-road contact by reducing aeration and shock fade. Shock Absorber, Metal, 18.12 in Compressed Length, 30 in Extended Length, LS54 Lower Mount, 11.88 in Travel Length, LS54 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 18-1/8 in |
| Dust Shield | Yes |
| Extended Length | 29-1/2 in |
| Lower Mount | LS54 |
| Stroke Inch | 11-3/8 in |
| Type | Shock Absorber |
| Upper Mount | LS54 |
| Material | Metal |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 11-3/8 in |
| Manufacturer Part Number | 65484 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65484 |
| M65484 |
| 3514952C1 |
| 57905-1 |
| 59851-1 |
| 85107238 |
| AMS65484 |
| MAE 65484 |
| MON65484 |
| SA65484 |
| ZZSA65484 |
| EHN60675003 |
| 4790221 |
| 4790224 |
| 4790228 |
| 573242 |
| 573249 |
| 579051 |
| 598511 |
| 606653 |
| 606705 |
| 606709 |
| 60675003 |
| 60675003L |
| 606753 |
