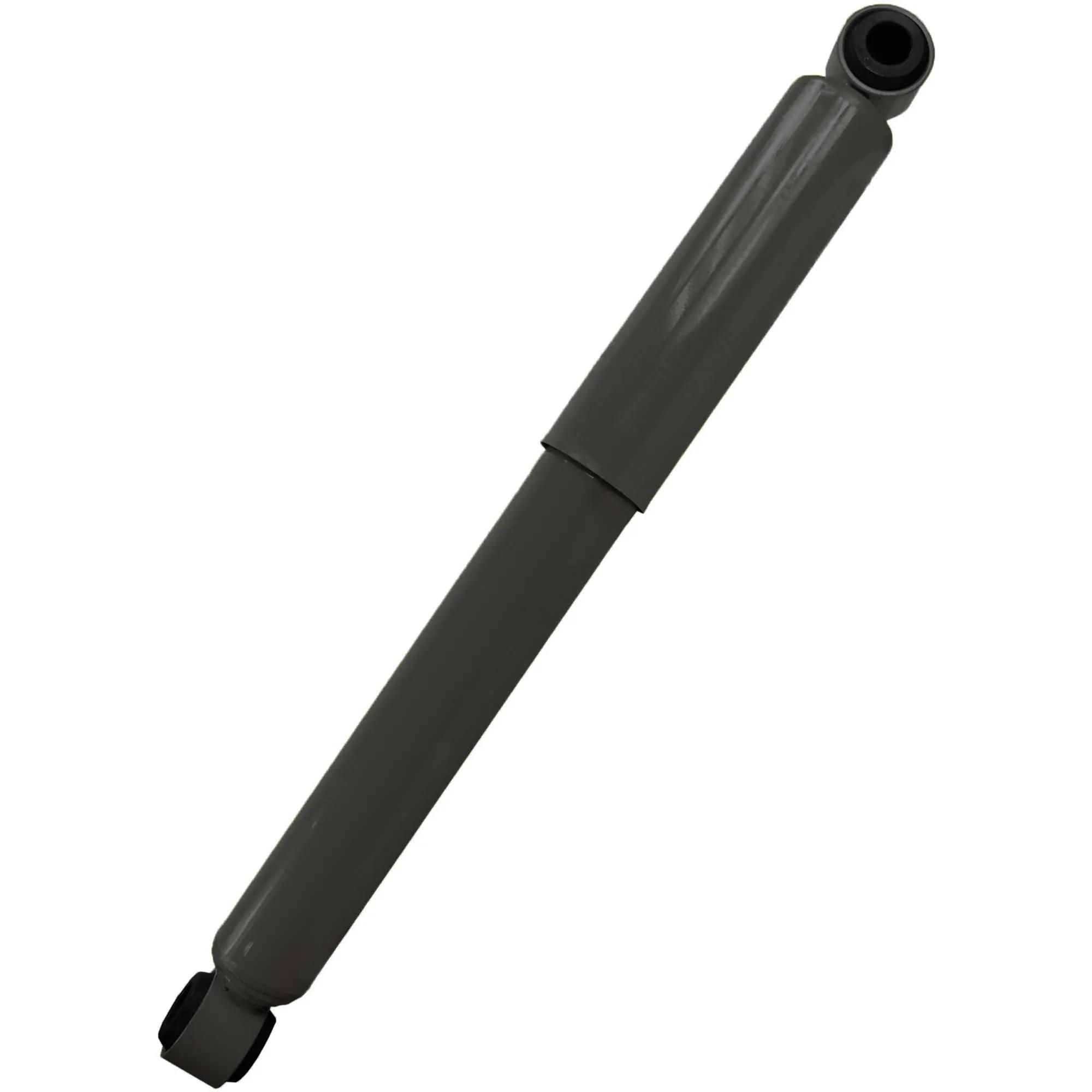

Monroe Gas Charged Shock Absorber, 1-3/4 in Piston, 16-1/2 in Comp, 26-3/8 in Ext, 9-7/8 in Stroke, L4 Mounts
#MON65118
Product Overview
The Gas-Grande 65 Shock Absorber Is A Gas Charged, Large-Bore Shock Specifically Designed For Air Spring & Taper Leaf Suspensions. Its Nitrogen Gas Charge Provides The Fast Response Essential For Today's Heavy Truck Suspension Systems
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Specifications
| Compressed Length | 16-1/2 in |
| Dust Shield | Yes |
| Extended Length | 26-3/8 in |
| Lower Mount | L4 |
| Stroke Inch | 9-7/8 in |
| Type | Shock Absorber |
| Upper Mount | L4 |
| Finish | Painted |
| Material | Chrome/Steel |
| Shock Type | Gas Charged |
| Travel Length | 9.87 in |
| Manufacturer Part Number | 65118 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65118 |
| 66701 |
| M65118 |
| 25621571 |
| 25625091 |
| 25651571 |
| 485301880 |
| 680425 |
| 83362 |
| 85320 |
| 89429 |
| AMS650118 |
| E0HT18080AA |
