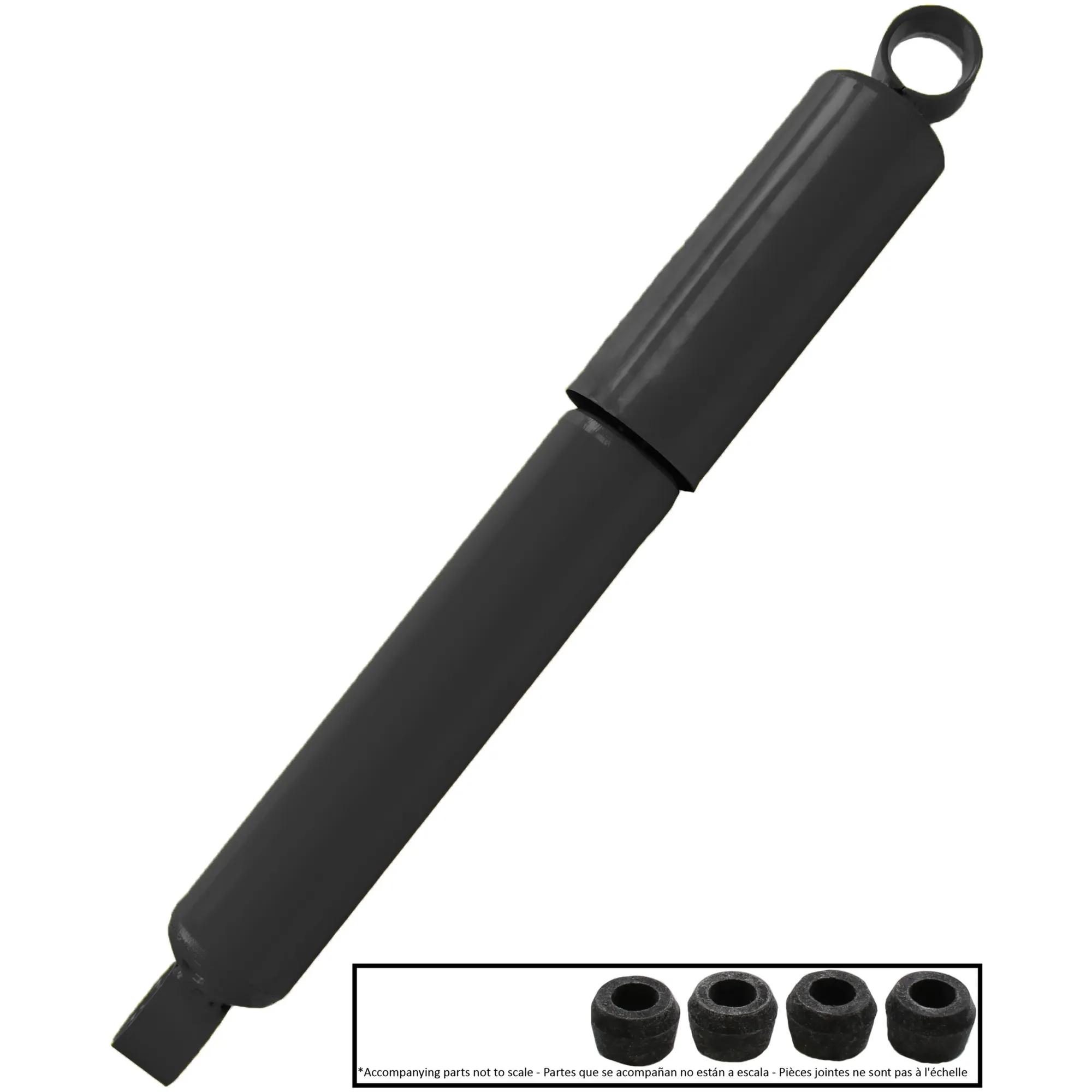

Monroe Magnum Nitrogen Gas Charged Shock Absorber, 2.38 in Body Dia, 13.58 in Compressed, 20.86 in Extended, 7.28 in Stroke, L3/L3 Mounts
#MON65434
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge and large bore for fast response and consistent control. It is ideal for air spring and taper leaf suspensions, providing improved ride, handling, and durability under severe use conditions. Shock Absorber, Painted, Metal, 2.38 in Body Dia, 13.5781 in Compressed Length, 20.8594 in Extended Length, L3 Lower Mount, 7.281 in Travel Length, L3 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- Single-Lip, Low-Friction Oil Seal.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
Specifications
| Application | 2019-2023 Kenworth W990 (Avant); 2000-2011 Peterbilt 387 (Avant); 1986-2008 Peterbilt 357 (Avant); 1990-2007 Peterbilt 378 (Avant); 1990-2007 Peterbilt 379 (Avant); 2007-2010 Peterbilt 220 (Avant); 2008-2018 Peterbilt 325 (Avant); 1988-1999 Peterbilt 376 (Avant); 1996-2007 Peterbilt 385 (Avant); 2008-2016 Peterbilt 384 (Avant); 1981-2006 Peterbilt 362 (Avant); 2006-2016 Peterbilt 386 (Avant); 1995-2016 Peterbilt 330 (Avant) |
| Body Diameter | 2,38 po |
| Compressed Length | 13-37/64 po |
| Dust Shield | Oui |
| Extended Length | 20-55/64 po |
| Lower Mount | L3 |
| Parts Pack | MONP00119 |
| Stroke Inch | 7-9/32 po |
| Upper Mount | L3 |
| Finish | Peint |
| Material | Métal |
| Shock Mounting | Resistance & Arc-Welded Mounts |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 7.281 in |
| Manufacturer Part Number | 65434 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 0202738 |
| 65434 |
| M65434 |
| 202738 |
| 202741 |
| 57365434 |
| 650434MT |
| AMS650434 |
| B716010 |
| B716015 |
| B716016 |
| 03-201 |
