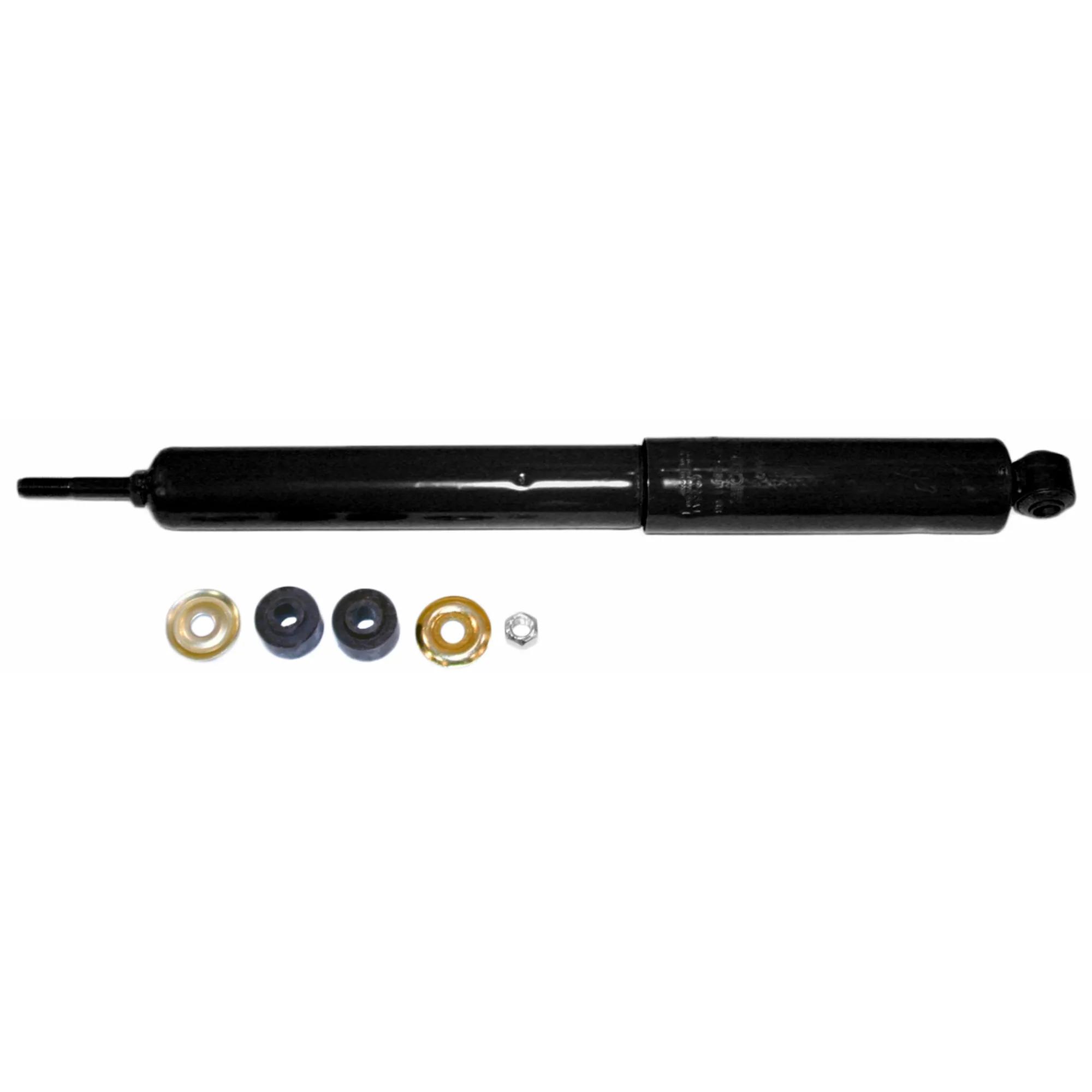

Monroe Shock Absorber, Suspension, Gas-Charged Shock, Metal, Painted, 15.97 in Compressed Length, 26.1 in Extended Length
#MON65480
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Nitrogen gas-charge improves ride and handling and maintains tire-to-road contact by reducing aeration and shock fade.
- Features a robust, patented hydraulic lockout that prevents over-extension of air bags, top-out of the piston, and averts damage to the seal assembly (most applications).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while the larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications).
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications).
- Longer service life from a PTFE-coated bearing that reduces friction between rod and rod guide, combined with a durable nitrocarburized piston rod (most applications).
- Reduced noise, vibration and harshness - delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions.
- Strong and durable, featuring a shouldered bushing and bonded bushing with sleeve to protect from bushing walkout for improved quality.
- Single-Lip, Low-Friction Oil Seal.
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- Buy with confidence - comes with Monroe’s 90-day risk free ride offer and limited commercial warranty.
Specifications
| Application | Passenger Car and Light Truck |
| Diamètre du corps | 2-3/8 in |
| Longueur comprimée | 15.97 in |
| Longueur en extension | 26.1 in |
| Fixation inférieure | S6 |
| Emballage de pièces | MONP01482 |
| Stroke Inch | 9-5/8 in |
| Type | Suspension |
| Upper Mount | LS54 |
| Finish | Painted |
| Includes | Dust Shield, Mounting Hardware |
| Material | Métal |
| Shock Mounting | Loop Bushing, Sleeve, Stem |
| Shock Type | Gas-Charged |
| Travel Length | 10.13 in |
| Manufacturer Part Number | 65480 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 57241-002 |
| 57241002 |
| 65480 |
| 66669 |
| M65480 |
| 57241-1 |
| 572412 |
| 57985-1 |
| 59852-1 |
| 60680-001 |
| 64080-001 |
| 65480-MS |
| 83111 |
| AMS65480 |
| MAE 65480 |
| MON65480 |
| RC SA3111 |
| ZZSA65480 |
| E-HN60685-001 |
| SA65480 |
| 57239 |
| 572416 |
| 579851 |
| 598521 |
| 654903 |
| 654904 |
| 83109 |
| F6HT18080DA |
| F6HZ18125B |
| 14QK413M6 |
| 14QK413M7 |
| 25625223 |
| 316821 |
| 44183111 |
| 57241001 |
| 57241006 |
| 572411 |
| 57985001 |
| 60680001 |
| 60680001L |
| 60680002 |
| 606801 |
| 606802 |
| 60685001L |
| 606851 |
| 64080001 |
| 64680001 |
| 66665 |
| 83176197 |
| 9180195 |
| A83111 |
| E83111 |
| F344354 |
| F344360 |
| HD12150067 |
| M83111 |
| RCSA3111 |
| SA3111 |
