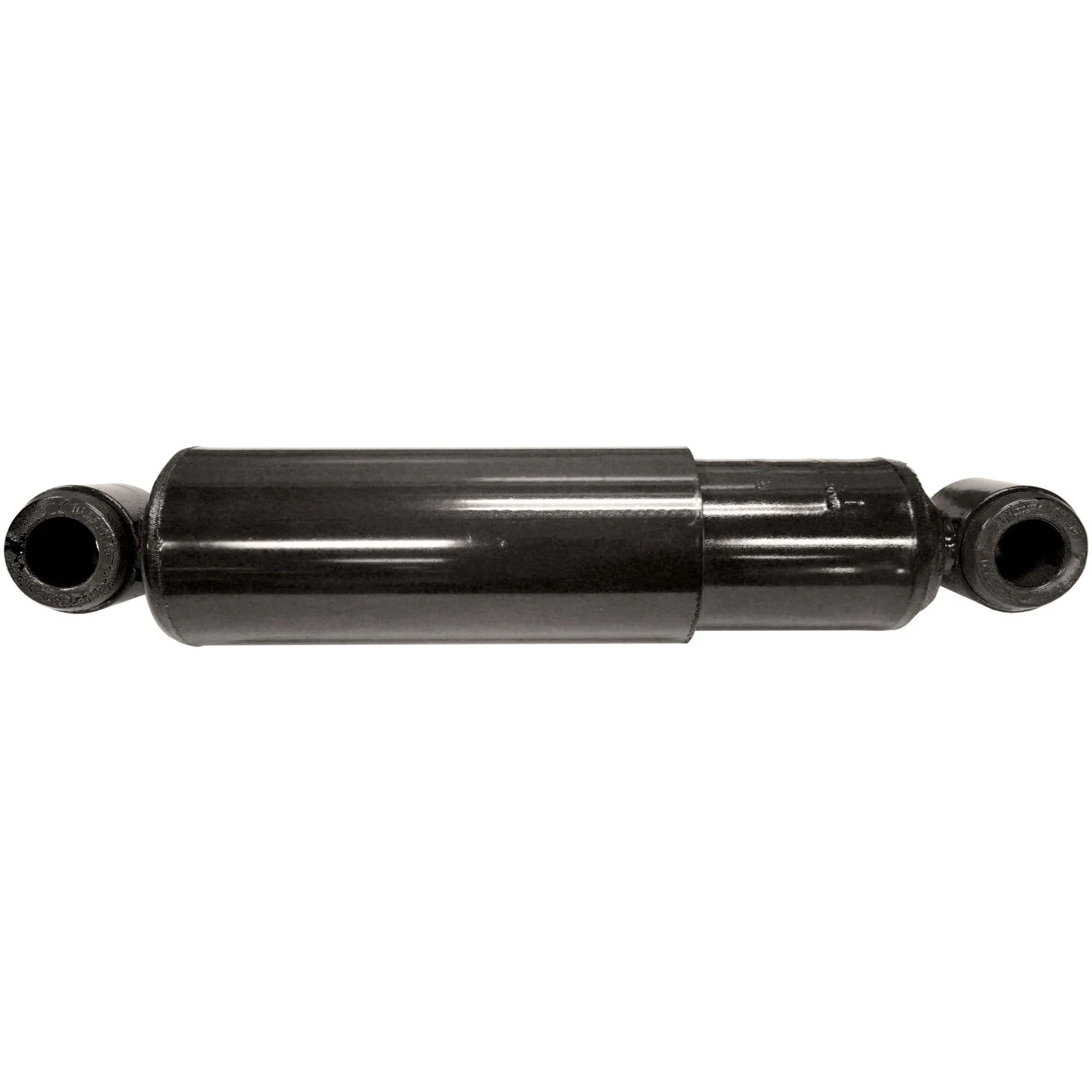

Monroe Grande 70 Shock Absorber, Comp: 14-15/64 in, Ext: 20-27/32 in, Stroke: 6-39/64 in, L4/L4 Mount, with Dust Shield
#MON74406
Product Overview
Tough Grande 70 Shock Absorbers Deliver A Firm, Controlled Ride For Greater Stability & Increased Driver Comfort. Grande 70 Shocks Meet Or Exceed Demanding OE Manufacturer Specifications.
Features & Benefits
- Hardened 7/8 in (22.23 mm) Diameter Piston Rod
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Large 1-3/4 in (4.45 mm) Piston Bore
- Greater Fluid Capacity
- 2-3/4 in (69.85 mm) Reserve Tube
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Application | 1986-2008 Peterbilt 357 (Rear); 1988-2007 Peterbilt 378 (Rear); 1986-2007 Peterbilt 379 (Rear); 1987-1996 Peterbilt 375 (Rear); 1988-1999 Peterbilt 376 (Rear); 1987-2001 Peterbilt 377 (Rear); 1989-1997 Peterbilt 372 (Rear); 1981-2002 International 2554 (Rear); 1984-2003 International 2574 (Rear); 1981-1989 International 2275 (Rear); 1984-1989 International 2575 (Rear); 1979-1989 International F2275 (Rear); 1979-1989 International F2574 (Rear); 1979-1989 International F2674 (Rear); 1979-1989 International F2575 (Rear); 1979-1989 International F2554 (Rear); 1980-1989 International F2654 (Rear) |
| Compressed Length | 14-15/64 in |
| Dust Shield | Yes |
| Extended Length | 20-27/32 in |
| Lower Mount | L4 |
| Stroke Inch | 6-39/64 in |
| Upper Mount | L4 |
| Travel Length | 6.61 in |
| Manufacturer Part Number | 74406 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 700407 |
| 74406 |
| 90044011 |
| M74406 |
| 1087001 |
| 30009612284 |
| 3178233 |
| 3919978 |
| 5357956 |
| 5361994 |
| 5532036 |
| 5549925 |
| 646220 |
| 961284 |
| E87001 |
| EUE85004 |
