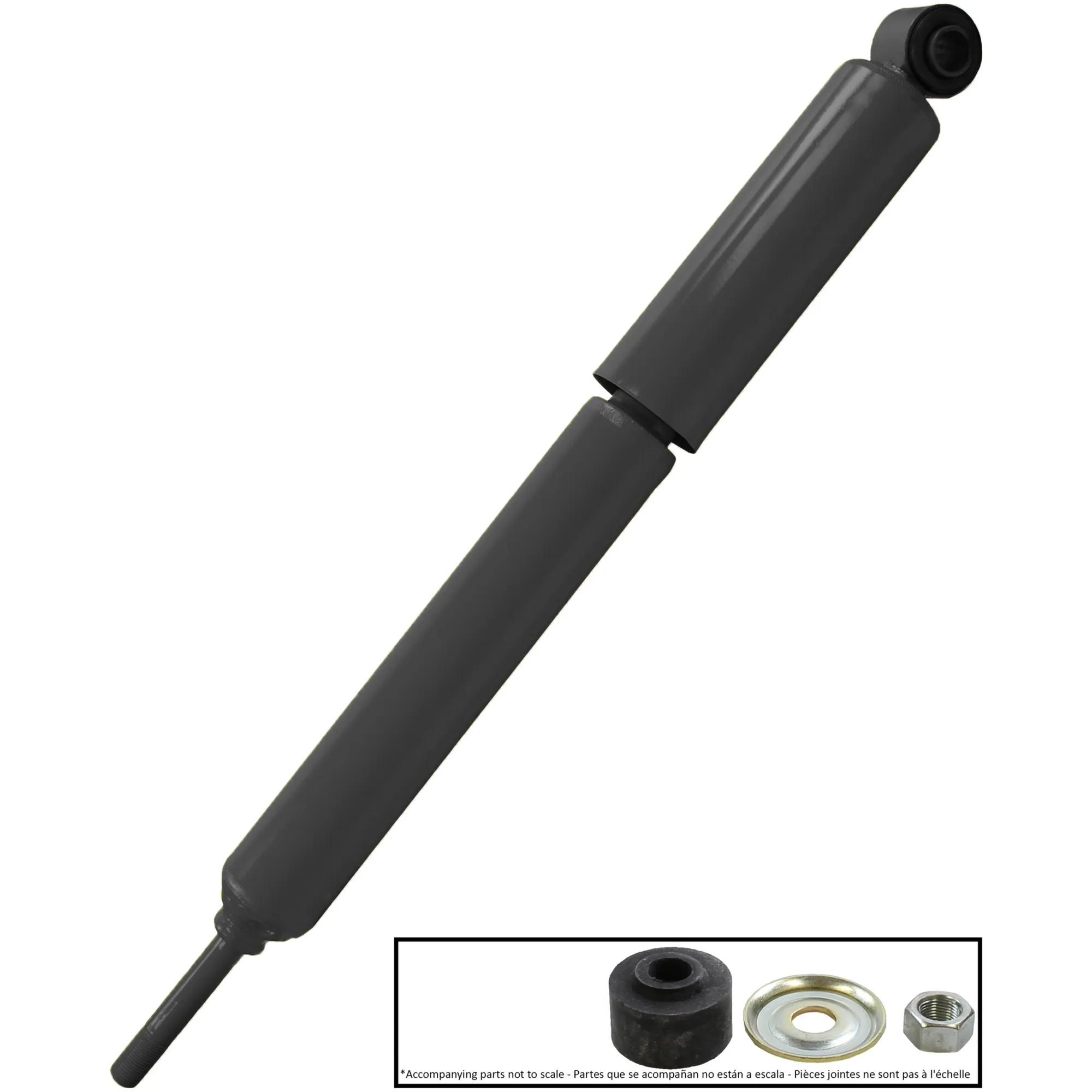

Monroe Magnum Shock Absorber, Nitrogen Gas Charged, Comp: 14-15/32 in, Ext: 22-31/32 in, Stroke: 8-1/2 in, 1-3/8 in Body
#MON66656
Product Overview
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Features & Benefits
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 1-3/8 in |
| Compressed Length | 14-15/32 in |
| Dust Shield | Yes |
| Extended Length | 22-31/32 in |
| Lower Mount | S6 |
| Parts Pack | MONP01482 |
| Stroke Inch | 8-1/2 in |
| Upper Mount | LS54 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 8.5 in |
| Manufacturer Part Number | 66656 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 57241004L |
| 66656 |
| M66656 |
| 14QK413M4 |
| 25624341 |
| 572414 |
| 57366656 |
| 660211MT |
| AMS660211 |
