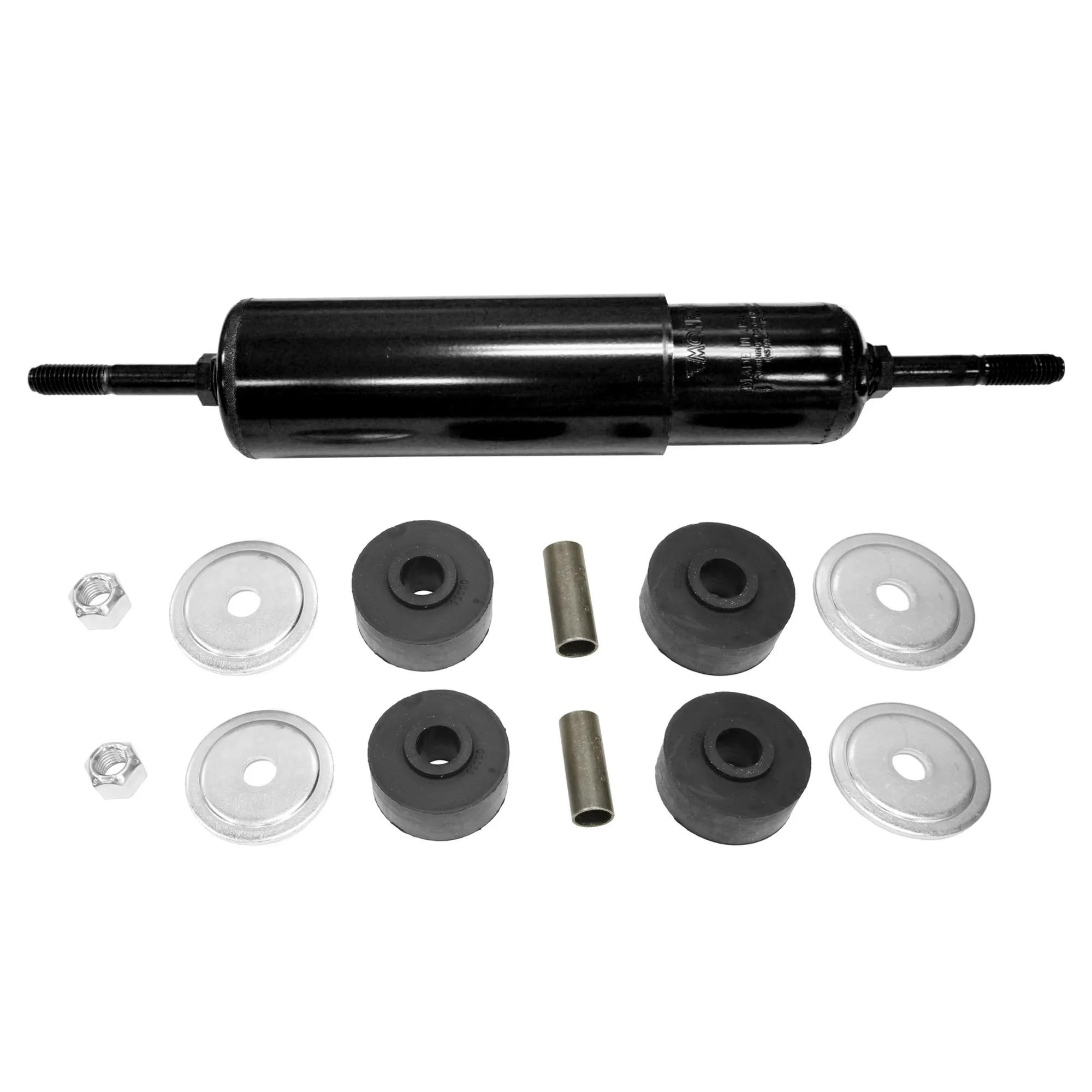

Monroe Magnum Shock Absorber, Comp: 14-25/32 in, Ext: 23-7/8 in, Stroke: 9-5/64 in, S6/S6 Mount, 2.75 in Body
#MON74439
Product Overview
Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.
Features & Benefits
- Hardened 7/8 in (22.23 mm) Diameter Piston Rod
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Large 1-3/4 in (4.45 mm) Piston Bore
- Greater Fluid Capacity
- 2-3/4 in (69.85 mm) Reserve Tube
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Body Diameter | 2.75 in |
| Compressed Length | 14-25/32 in |
| Extended Length | 23-7/8 in |
| Lower Mount | S6 |
| Parts Pack | (2) MONP1513 |
| Stroke Inch | 9-5/64 in |
| Upper Mount | S6 |
| Finish | Painted |
| Travel Length | 9.078 in |
| Manufacturer Part Number | 74439 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 12L558 |
| 74439 |
| M74439 |
| 12L567 |
| 251700101426 |
| 85728 |
| 96701081 |
| 96748901 |
| AA1002002 |
| CI1002003 |
| DT1002002 |
| DZ1002002 |
| GJ1002002 |
| MM1002003 |
