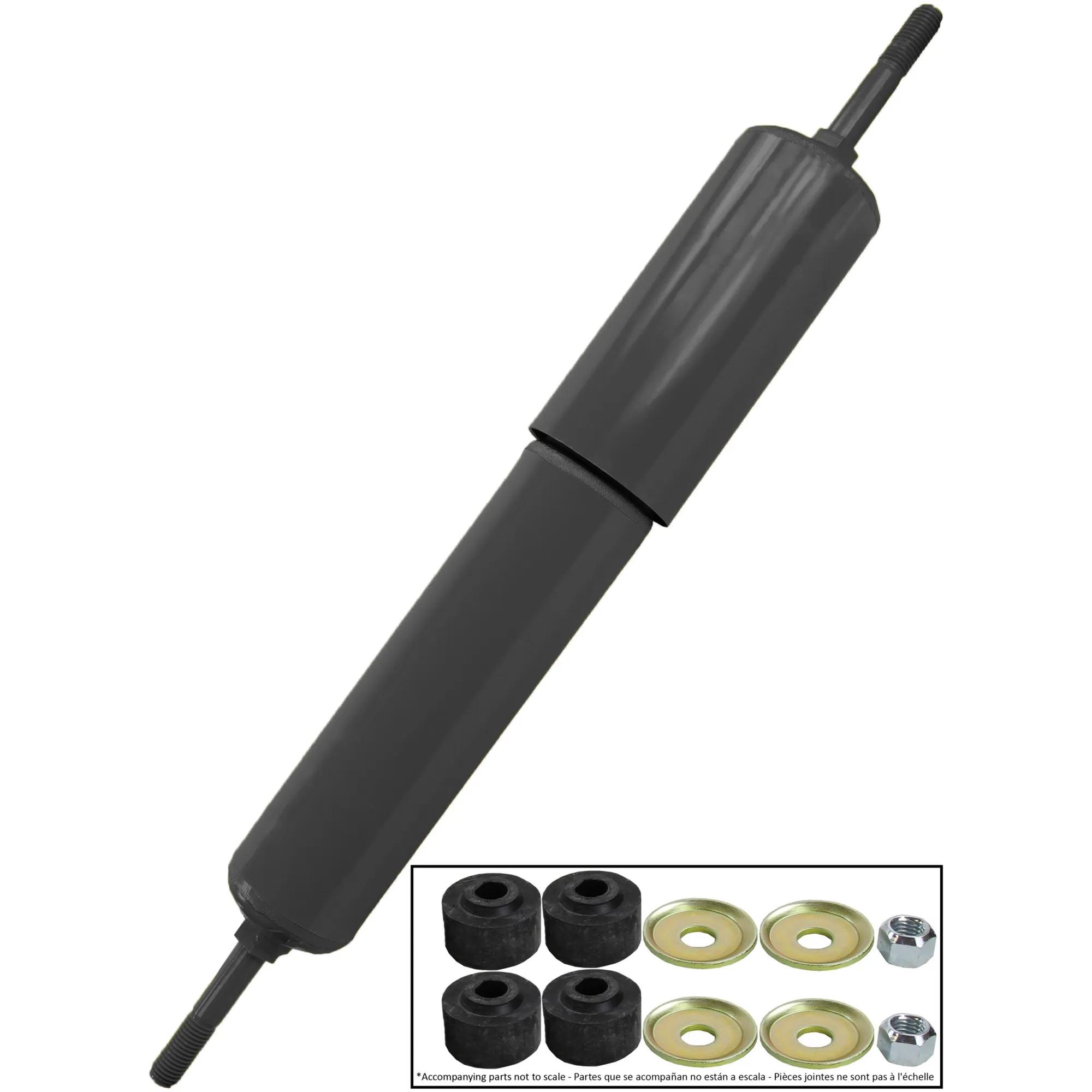

Monroe Magnum Gas Charged Heavy Duty Shock Absorber, Comp: 14-5/8 in, Ext: 23-3/8 in, Stroke: 6-3/4 in
#MON65414
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Diamètre du corps | 2-3/8 po |
| Longueur comprimée | 14-5/8 po |
| Longueur en extension | 23-3/8 po |
| Fixation inférieure | S6 |
| Emballage de pièces | (2) MONP1482 |
| Stroke Inch | 6-3/4 po |
| Upper Mount | S6 |
| Shock Type | Amortisseur à gaz |
| Travel Length | 8,75 po |
| Manufacturer Part Number | 65414 |
| Product Category | Amortisseur |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65414 |
| M65414 |
| AMS650414 |
| 22064231 |
| 57365414 |
| 650414 |
| 8220642310 |
