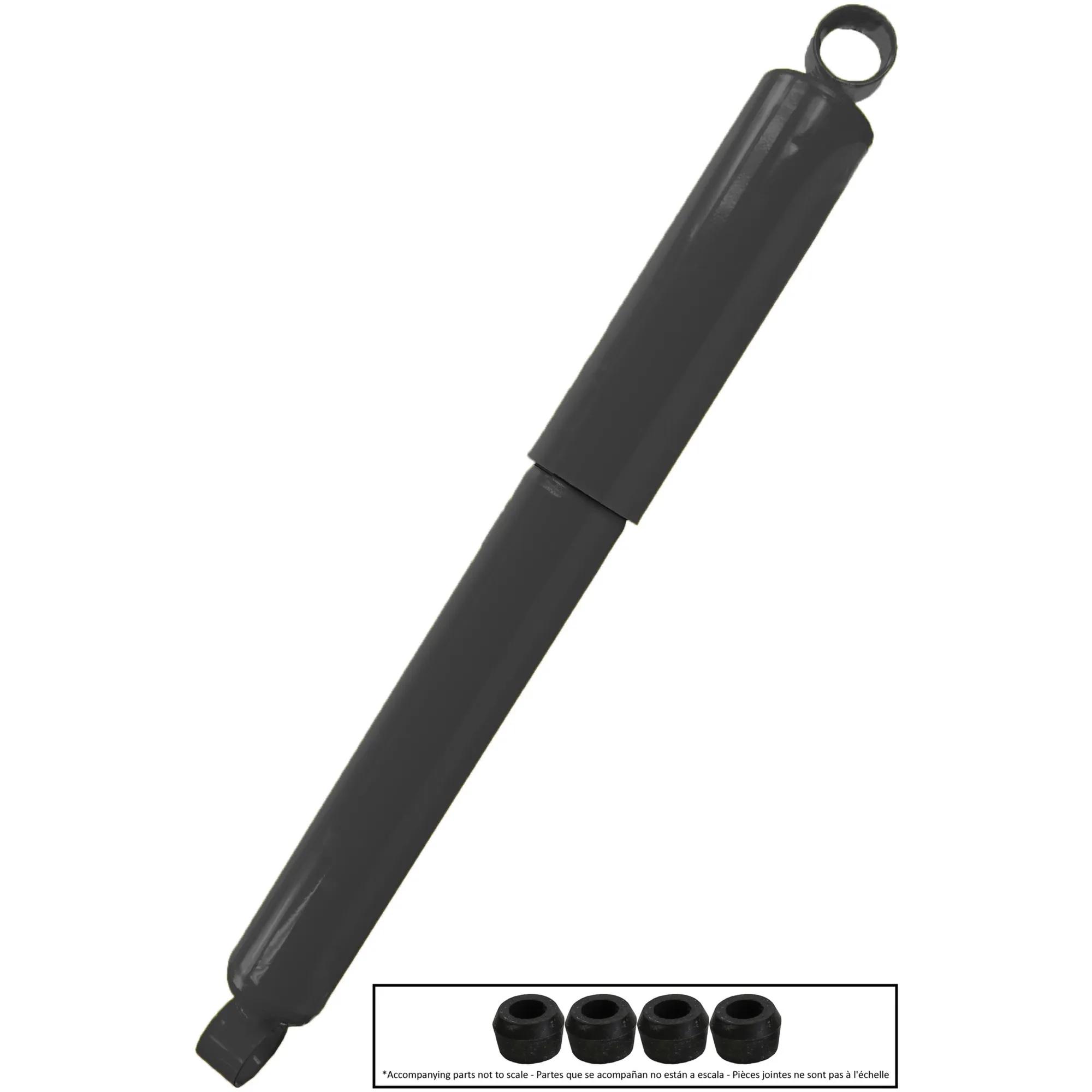

Monroe Magnum Gas Charged Shock Absorber, 1-3/4 in Piston, 15.74 in Compressed, 25.19 in Extended, 9.45 in Stroke, LS54 Mounts
#MON65466
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 commercial vehicles, including trucks and buses, featuring a Gas Charged, large-bore design ideal for air spring and taper leaf suspensions. The nitrogen gas charge improves ride and handling by maintaining tire-to-road contact and reducing aeration and shock fade. Built for durability and consistent performance under severe use and high mileage conditions. Shock Absorber, Metal, 15.74 in Compressed Length, 25.19 in Extended Length, LS54 Lower Mount, 9.45 in Travel Length, LS54 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Consistent ride with all-weather fluid containing special additives to assist with extreme temperatures and reduce oil breakdown
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Strong and durable - shouldered and bonded bushings with sleeve protect from bushing walkout; arc welds up to 360 degrees for durability
- Designed for hardworking commercial vehicles - handles demands of high mileage and severe use in class 6-8 trucks and buses
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 15-3/4 in |
| Dust Shield | Yes |
| Extended Length | 25-1/8 in |
| Lower Mount | LS54 |
| Parts Pack | MONP00119 |
| Stroke Inch | 9-3/8 in |
| Upper Mount | LS54 |
| Material | Metal |
| Shock Mounting | Air spring and taper leaf suspensions |
| Shock Type | Gas Charged |
| Travel Length | 9.45 in |
| Manufacturer Part Number | 65466 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65466 |
| M65466 |
| 359013201 |
| 665739 |
| 8063216 |
| 8077874 |
| 8086053 |
| 8169859 |
| 85024 |
| 881571 |
| 9051024 |
