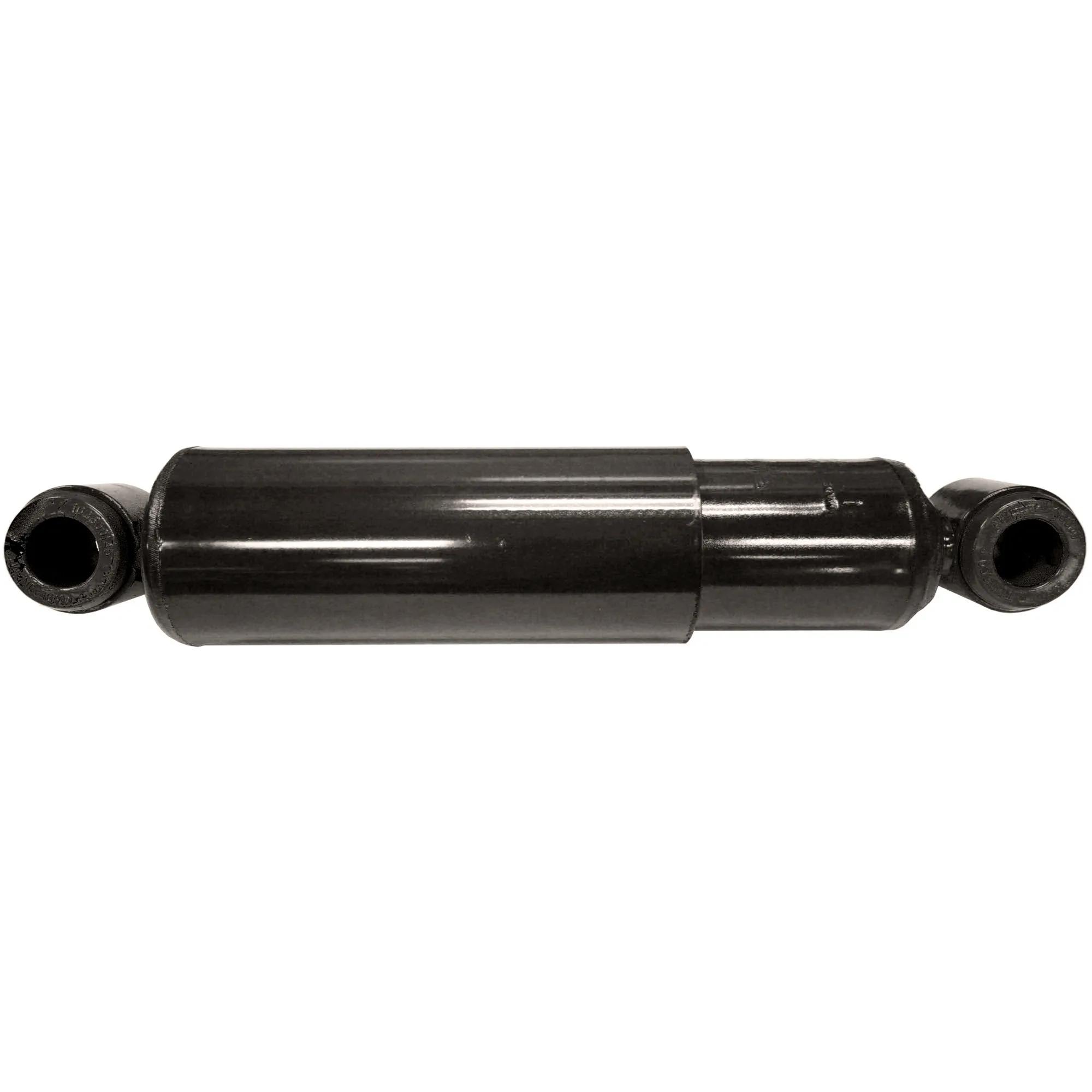

Monroe Magnum Shock Absorber, 7/8 in Piston Rod, Arc-Welded Mounts, Comp: 15-3/4 in, Ext: 23-9/16 in, Stroke: 7-13/16 in
#MON74408
Product Overview
Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.
Features & Benefits
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- Hardened 7/8 in (22.23 mm) Diameter Piston Rod
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Large 1-3/4 in (44.5 mm) Piston Bore
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/4 in (69.85 mm) Reserve Tube
- Greater Fluid Capacity
Specifications
| Body Diameter | 2.75 in |
| Compressed Length | 15-3/4 in |
| Dust Shield | Yes |
| Extended Length | 23-9/16 in |
| Lower Mount | L4 |
| Parts Pack | P1441 |
| Stroke Inch | 7-13/16 in |
| Upper Mount | L4 |
| Finish | Painted |
| Shock Mounting | Arc-Welded Mounts |
| Travel Length | 7.813 in |
| Manufacturer Part Number | 74408 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 74408 |
| 85702 |
| E-87002 |
| EUC85702 |
| M74408 |
| 22012082 |
| 22045261 |
| 22045526 |
| 22046481 |
| 3919979 |
| 4975516 |
| 4975517 |
| 4975550 |
| 50716 |
| 97221000156 |
| 995891 |
