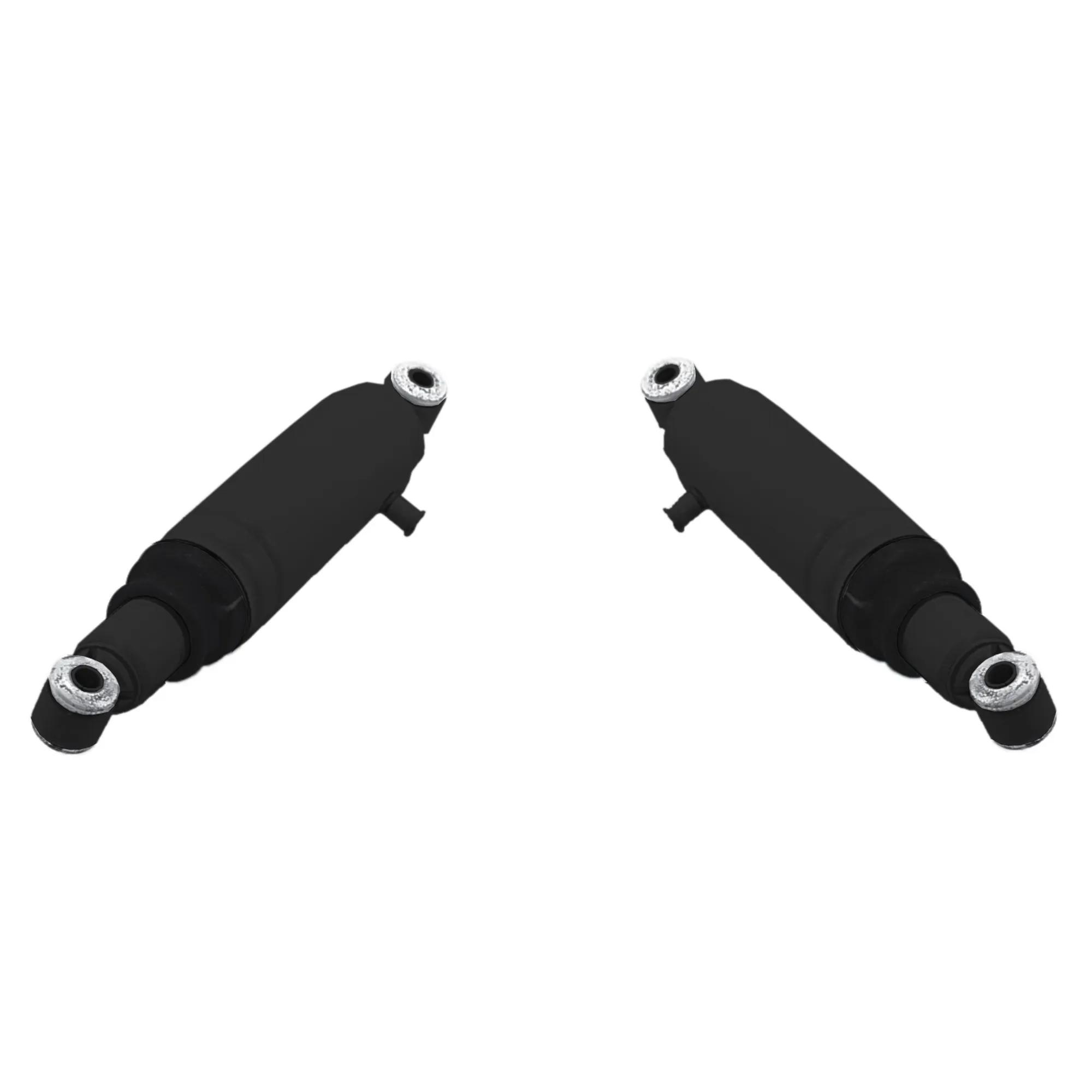

Monroe Max-Air Shock Absorber, 150 PSI, Comp 12-3/4 in, Ext 20-1/8 in, Stroke 7-3/8 in
#MONMA824
Product Overview
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner's manual.)
Features & Benefits
- Lubricated Air Sleeve: Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement.
- Special Air Fitting: Resists Air Leakage.
- Large Volume Air Chamber: Inflates Up To 150 PSI w/ Vehicle Loaded. Deflates For Normal Driving.
- 1/2 in Piston Rod: Hardened & Precision Ground Rod For Consistent Performance & Long Service Life.
- Full Displaced Valving: Better Valving Range On Both The Compression & Extension Cycles Of The Unit For A Smooth Comfortable Ride.
- All Weather Fluid: Contains Special Modifiers To Reduce Friction & Ensure Smooth Rod Reaction.
Specifications
| Compressed Length | 12-3/4 in |
| Extended Length | 20-1/8 in |
| Lower Mount | LS26 |
| Stroke Inch | 7-3/8 in |
| Upper Mount | LS26 |
| Shock Type | Max-Air |
| Travel Length | 7.375 in |
| Manufacturer Part Number | MA824 |
| Product Category | Air Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| MA824 |
