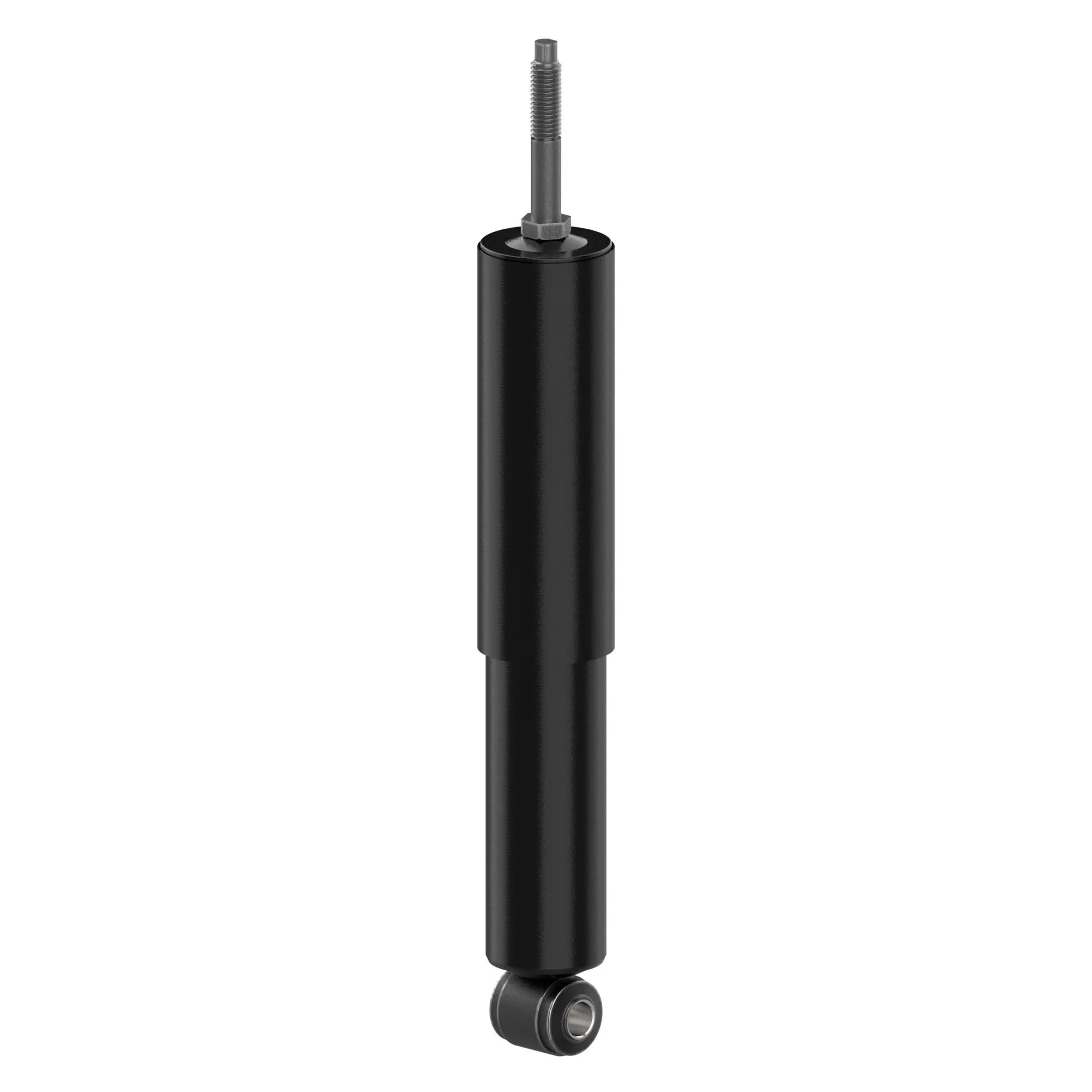

Monroe OESpectrum Shock Absorber, Comp 9-5/8 in, Ext 13-3/4 in, Stroke 4-1/8 in, Nitrogen Gas Charged, 1-3/8 in Bore
#MON911191
Product Overview
Designed to restore a vehicle’s original factory drivability and performance, Monroe® OESpectrum® light truck shock absorbers provide an exceptional level of handling precision and control while filtering out impact-related noise, vibration and harshness.
Features & Benefits
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2-1/4 in Or 2 in Diameter Reserve Tube: Allows More Fluid Carrying Capacity For A Cooler Running Unit.
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency & Ride
- Impact Sensor Technology: Innovative Valving Provides Greater Control For Handling, While Improving Ride Comfort.
- 5/8 in Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life. On Non-Dust Shield Units Only
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston & Pressure Tube Which Delivers Better Control & Increased Durability.
- Special Seal: "Self-Lubricating" Fluid Seal Designed To Retain Gas w/o Excessive Wear Or Friction.
- All Weather Fluid: Contains Special Modifiers To Reduce Friction & Ensure Smooth Rod Reaction.
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
Specifications
| Application | 1994-2002 Dodge Ram 2500 (Front) (Drive: RWD / Qualifier: with 8,800 (lb) Gross Vehicle Weight (GVW)); 1994-2002 Dodge Ram 3500 (Front) (Drive: RWD / Qualifier: with Independent Front Suspension) |
| Compressed Length | 9-5/8 in |
| Extended Length | 13-3/4 in |
| Lower Mount | LS47 |
| Parts Pack | MONP01167 |
| Stroke Inch | 4-1/8 in |
| Upper Mount | S5 |
| Travel Length | 4.125 in |
| Manufacturer Part Number | 911191 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 911191 |
