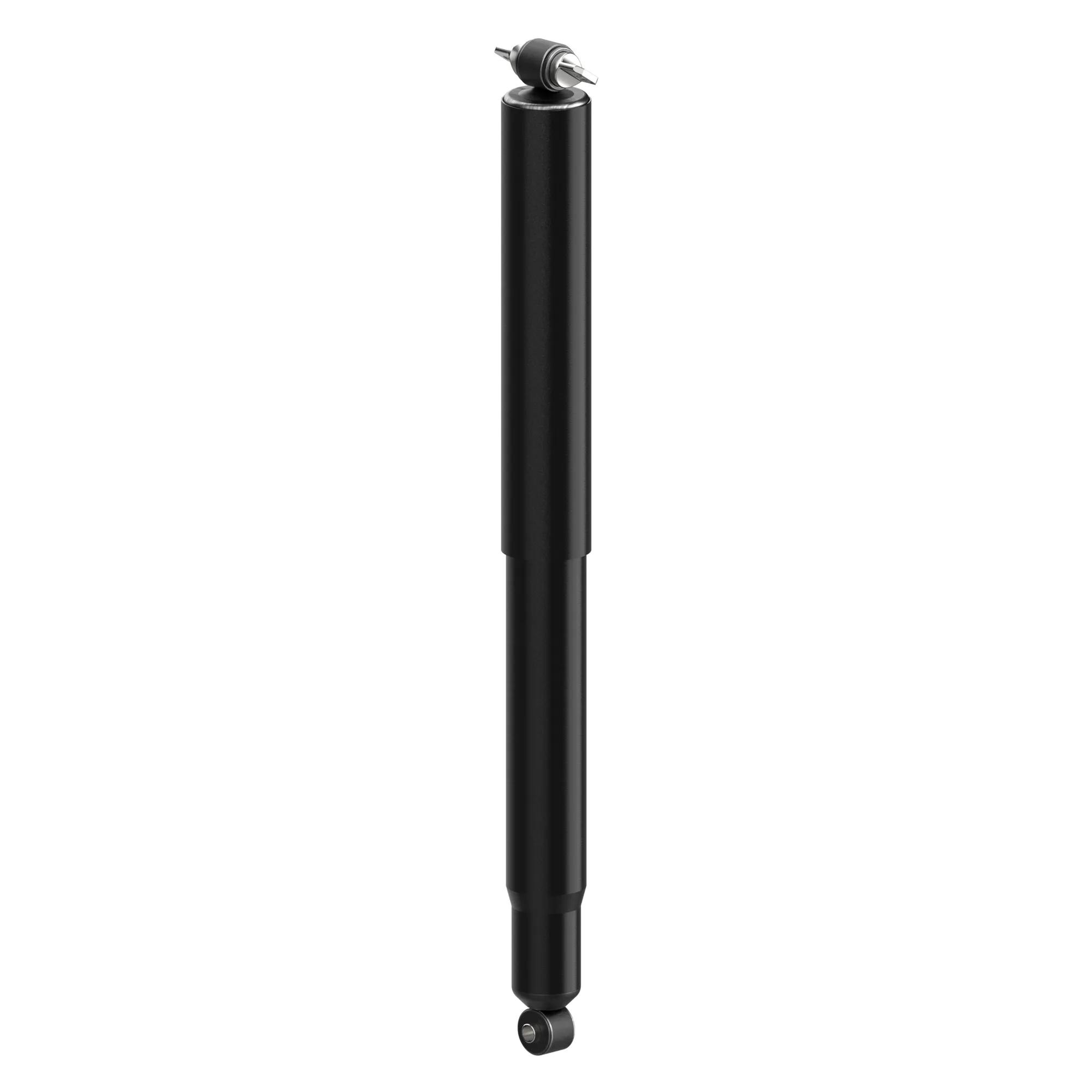

Monroe OESpectrum Shock Absorber, Comp 16-3/4 in, Ext 28-1/4 in, Stroke 11-1/2 in, Gas Charged, XP7/LS26 Mounts
#MON911176
Product Overview
Designed to restore a vehicle’s original factory drivability and performance, Monroe® OESpectrum® light truck shock absorbers provide an exceptional level of handling precision and control while filtering out impact-related noise, vibration and harshness.
Features & Benefits
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2-1/4 in Or 2 in Diameter Reserve Tube: Allows More Fluid Carrying Capacity For A Cooler Running Unit.
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency & Ride
- Impact Sensor Technology: Innovative Valving Provides Greater Control For Handling, While Improving Ride Comfort.
- 5/8 in Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life. On Non-Dust Shield Units Only
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston & Pressure Tube Which Delivers Better Control & Increased Durability.
- Special Seal: "Self-Lubricating" Fluid Seal Designed To Retain Gas w/o Excessive Wear Or Friction.
- All Weather Fluid: Contains Special Modifiers To Reduce Friction & Ensure Smooth Rod Reaction.
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
Specifications
| Compressed Length | 16-3/4 in |
| Extended Length | 28-1/4 in |
| Lower Mount | LS26 |
| Stroke Inch | 11-1/2 in |
| Type | Shock Absorber |
| Upper Mount | XP7 |
| Shock Type | Gas Charged |
| Travel Length | 11.5 in |
| Manufacturer Part Number | 911176 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 911176 |
