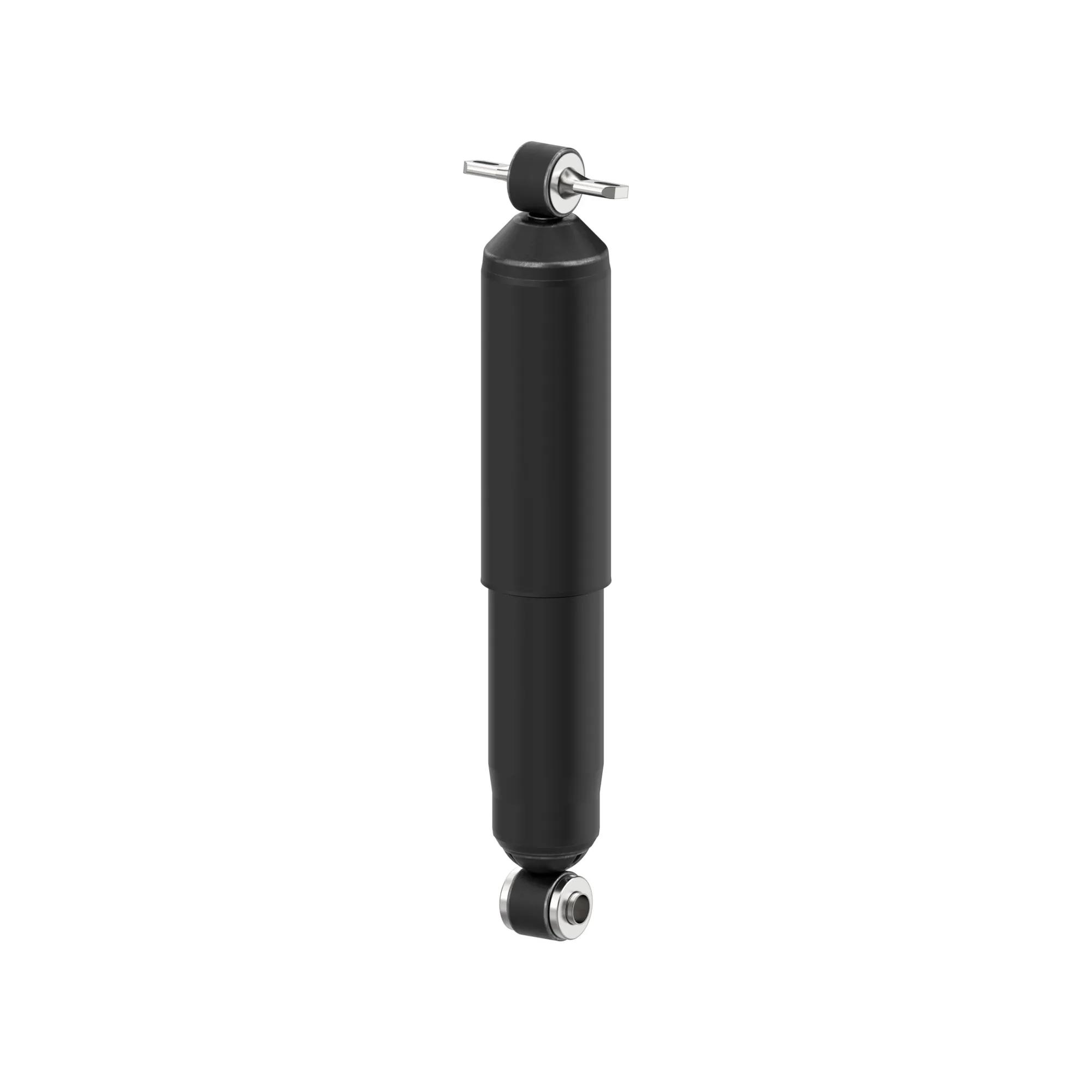

Monroe Reflex Light Truck Shock Absorber, Nitrogen Gas Charged, 1-3/8 in Bore, Comp: 14-3/4 in, Ext: 23-3/4 in, Stroke: 9 in
#MON911086
Product Overview
Ideal for vehicles with a higher center of gravity, Monroe® Reflex® light truck shock absorbers feature ASD (Acceleration Sensitive Damping) valving technology that automatically adjusts the unit to absorb the impact, helping to reduce vehicle roll and dive.
Features & Benefits
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- 2-1/4 in Or 2 in Diameter Reserve Tube: Allows More Fluid Carrying Capacity For A Cooler Running Unit.
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency & Ride
- Impact Sensor Technology: Innovative Valving Provides Greater Control For Handling, While Improving Ride Comfort.
- 5/8 in Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life. On Non-Dust Shield Units Only
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston & Pressure Tube Which Delivers Better Control & Increased Durability.
- Special Seal: "Self-Lubricating" Fluid Seal Designed To Retain Gas w/o Excessive Wear Or Friction.
- All Weather Fluid: Contains Special Modifiers To Reduce Friction & Ensure Smooth Rod Reaction.
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
Specifications
| Application | 1999-2000 Cadillac Escalade (Rear); 1996-2025 Chevrolet Express 2500 (Rear); 1996-2025 Chevrolet Express 3500 (Rear) (Body: Standard Passenger Van, Standard Cargo Van, Extended Cargo Van, Extended Passenger Van / Qualifier: with Single Rear Wheels (SRW)); 1992-1999 Chevrolet K1500 Suburban (Rear) (Qualifier: without Z71 Off Road Package); 1992-1999 Chevrolet K2500 Suburban (Rear); 1995-2000 Chevrolet Tahoe (Rear) (Doors: 4 & Liter: 5.7 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.48 & Stroke(mm): 88.5 & Drive: 4WD); 1992-1999 GMC K1500 Suburban (Rear); 1992-1999 GMC K2500 Suburban (Rear); 1996-2025 GMC Savana 2500 (Rear); 1996-2025 GMC Savana 3500 (Rear) (Body: Standard Passenger Van, Standard Cargo Van, Extended Cargo Van, Extended Passenger Van / Qualifier: with Single Rear Wheels (SRW)); 1995-2000 GMC Yukon (Rear) (Doors: 4 & Liter: 5.7 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.48 & Stroke(mm): 88.5 & Drive: 4WD) |
| Compressed Length | 14-3/4 in |
| Extended Length | 23-3/4 in |
| Lower Mount | LS47 |
| Stroke Inch | 9 in |
| Upper Mount | XP7 |
| Shock Type | Monroe Reflex Light Truck Shock Absorber |
| Travel Length | 9 in |
| Manufacturer Part Number | 911086 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 911086 |
