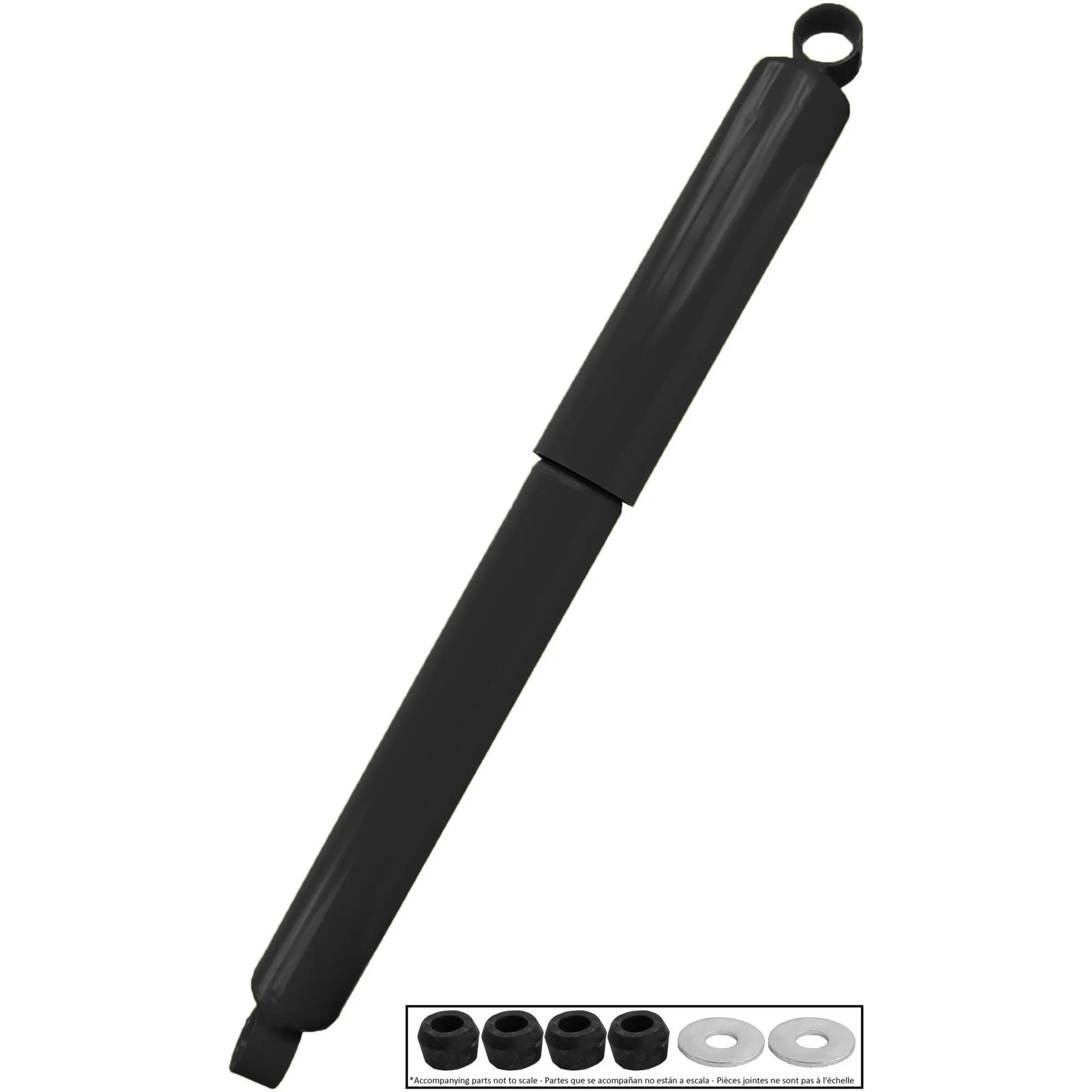

Monroe Gas Charged Heavy Duty Shock Absorber, Comp 17-3/8 in, Ext 28 in, Stroke 10-5/8 in
#MON65406
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Compressed Length | 17-3/8 po |
| Extended Length | 28 po |
| Lower Mount | L3 |
| Parts Pack | MONP00119 & MONP1009 |
| Stroke Inch | 10-5/8 po |
| Upper Mount | L3 |
| Material | Chrome |
| Shock Type | À gaz |
| Travel Length | 10,625 po |
| Manufacturer Part Number | 65406 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65406 |
| M65406 |
| 57306718 |
| 57365406 |
| 600151MT |
| 601151 |
| 650406MT |
| 8071524 |
| E85024 |
| L57657 |
| EUE85024 |
| M6523D |
| TSA650406 |
